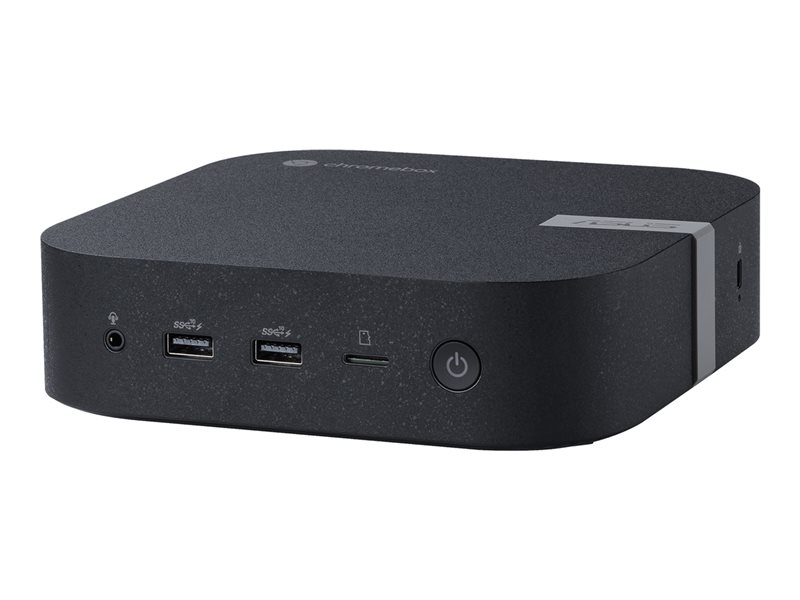

Mini PC 1 x Core i7 1260P / up to 4.7 GHz - RAM 16 GB - SSD 256 GB - NVMe - Intel Iris Xe Graphics - IEEE 802.11ax (Wi-Fi 6E), Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.3 - Chrome OS - monitor: none - black
| Main Specifications | |
|---|---|
| Product Description | ASUS Chromebox 5 CHROMEBOX5-S7057UNENT-WC - mini PC Core i7 1260P - 16 GB - SSD 256 GB |
| Type | Chromebox - mini PC |
| Processor | 1 x Intel Core i7 (12th Gen) 1260P (up to 4.7 GHz, (12-core) |
| Cache Memory | 18 MB |
| Cache Per Processor | 18 MB |
| RAM | 16 GB (installed) / 32 GB (max) - DDR4 SDRAM |
| Hard Drive | SSD 256 GB - PCI Express 4.0 - M.2 - NVM Express (NVMe) |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Graphics Controller | Intel Iris Xe Graphics |
| Networking | 802.11a, Wi-Fi 5, Wi-Fi 6E, 802.11b/g/n, 1GbE, 2.5GbE, Bluetooth 5.3 |
| OS Provided | Google Chrome OS |
| Color | Black |
| Dimensions (WxDxH) | 6.6 in x 6.5 in x 1.8 in |
| Weight | 28.22 oz |
| Environmental Standards | ENERGY STAR Qualified |
| General | |
| Type | Chromebox |
| Product Form Factor | Mini PC |
| Embedded Security | Titan-C Security Chip |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 2 x USB 3.2 Gen 2 (2 front) (Battery Charging 1.2) ¦ 2 x HDMI (2 rear) ¦ 1 x headphones/microphone (1 in front) ¦ 1 x LAN (2.5Gigabit Ethernet) (1 rear) ¦ 2 x USB 3.2 Gen 1 (2 rear) ¦ Thunderbolt 4/USB4/DisplayPort 1.4 (1 rear) (Power Delivery) ¦ DisplayPort 1.4 (1 rear) |
| Miscellaneous | |
| Included Accessories | VESA mounting kit |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | BSMI, CB, FCC, UL, C-Tick, VCCI |
| RAM | |
| Installed Size | 16 GB (installed) / 32 GB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 3200 MHz |
| Rated Memory Speed | 3200 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) / 0 (empty) |
| Configuration Features | 2 x 8 GB |
| Networking | |
| Ethernet Ports | 2.5 Gigabit Ethernet |
| Ethernet Controller | Realtek RTL8125BG |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.3 |
| Features | Dual stream (2x2) |
| Power | |
| Device Type | Power adapter |
| Power Provided | 150 Watt |
| Cache Memory | |
| Installed Size | 18 MB |
| Cache Per Processor | 18 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel Iris Xe Graphics |
| Video Interfaces | HDMI, DisplayPort |
| Operating System / Software | |
| OS Provided | Google Chrome OS |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express 4.0 |
| Features | NVM Express (NVMe) |
| Dimensions & Weight | |
| Width | 6.6 in |
| Depth | 6.5 in |
| Height | 1.8 in |
| Weight | 28.22 oz |
| Card Reader | |
| Type | Card reader |
| Supported Flash Memory Cards | microSD |
| Processor / Chipset | |
| CPU | Intel Core i7 (12th Gen) 1260P |
| Max Turbo Speed | 4.7 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
