85" Diagonal Class QBC Series LED-backlit LCD display - Crystal UHD - digital signage - Tizen OS - 4K UHD (2160p) 3840 x 2160 - charcoal black
| Main Specifications | |
|---|---|
| Product Description | Samsung QB85C-N QBC Series - 85" LED-backlit LCD display - Crystal UHD - 4K - for digital signage |
| Product Type | LED-backlit LCD flat panel display - Crystal UHD |
| Diagonal Class | 85" |
| Commercial Use | Yes - digital signage |
| Color | Charcoal black |
| Platform | Tizen OS |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| Connectivity | LAN |
| Technology | VA |
| LCD Backlight Technology | LED backlight |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | Samsung VXT CMS, Home UI |
| Picture Enhancements | Mega Dynamic Contrast Ratio, Dynamic Crystal Color, 72% Color Gamut NTSC, Intelligent UHD upscaling |
| Storage Capacity | 8 GB |
| USB | 2 ports |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 231 watt |
| Dimensions (WxDxH) - without stand | 75 in x 1.1 in x 42.7 in |
| Weight | 92.37 lbs |
| Environmental Standards | ENERGY STAR Qualified, EPEAT Bronze |
| General | |
| Product Type | LED-backlit LCD flat panel display - Crystal UHD |
| Power Consumption Operational | 231 watt |
| Diagonal Class | 85" |
| Commercial Use | Yes - digital signage |
| Series | QBC Series |
| Platform | Tizen OS |
| Operating System | Tizen OS 7.0 |
| Video Processor | Crystal 4K |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| Modes | DICOM Simulation Mode, Director Mode |
| Picture Enhancements | Mega Dynamic Contrast Ratio, Dynamic Crystal Color, 72% Color Gamut NTSC, Intelligent UHD upscaling |
| Design | Even Bezel Design, Ultra Slim |
| Dimensions | Without stand |
| Width | 75 in |

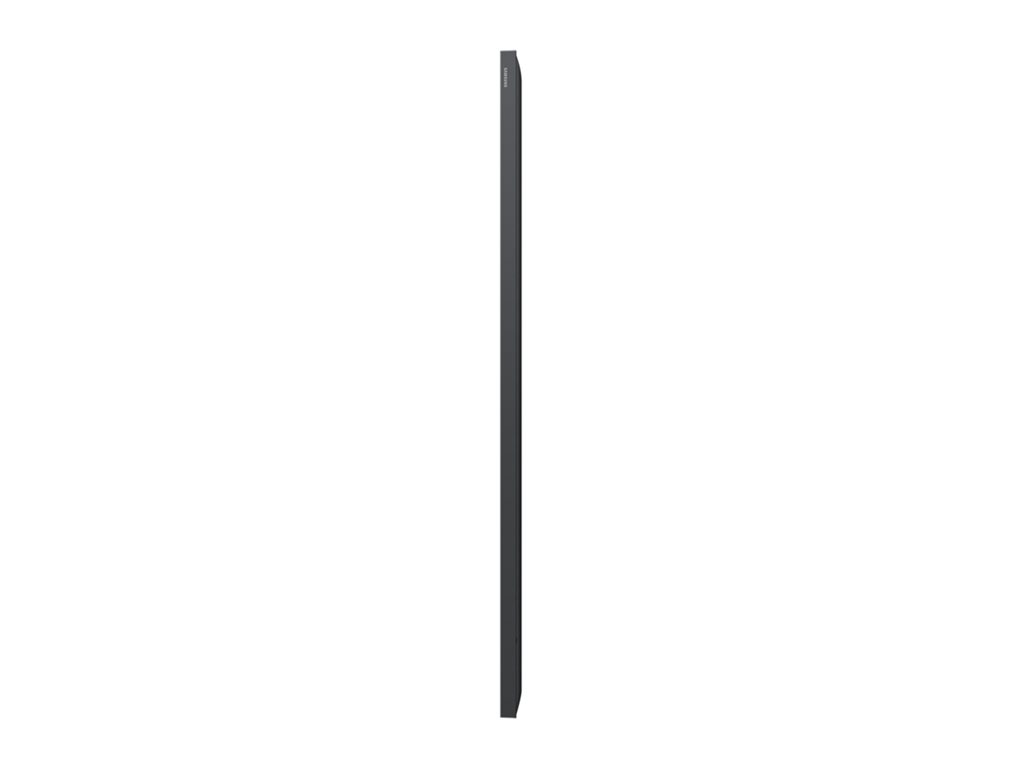

| Depth | 1.1 in |
| Height | 42.7 in |
| Weight | 92.37 lbs |
| Enclosure Color | Charcoal black |
| Miscellaneous | |
| Compliant Standards | EMC Class A, HDCP 2.2, Safety 60950-1, Safety 62368-1 |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Sleep | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Display | |
| LCD Display Technology | VA |
| Pixel Pitch | 0.487 mm |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| LCD Backlight Technology | LED backlight |
| Coating | 2% haze |
| Image Contrast Ratio | 4000:1 |
| Brightness | 350 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 10 ms |
| Commercial Features | Samsung VXT CMS, Home UI |
| Operation Hours / Days | 16 / 7 |
| Additional Features | Smart Calibration |
| Connections | |

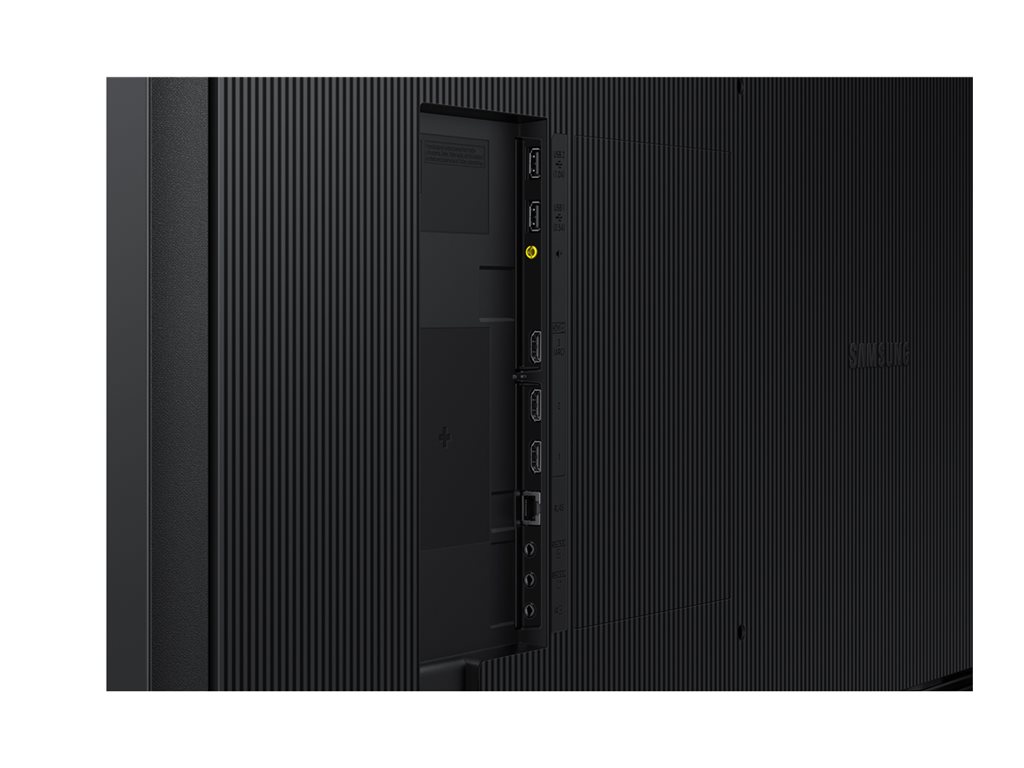

| Connector Type | 3 x HDMI input ¦ 2 x USB ¦ RS-232 input ¦ RS-232 output ¦ Audio line-out ¦ LAN input ¦ Infrared input |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 81.8 in |
| Depth (Shipping) | 8.3 in |
| Height (Shipping) | 48.1 in |
| Weight (Shipping) | 118.83 lbs |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| LAN Protocol | Ethernet |
| Stands & Mounts | |
| Stand | Optional |
| Flat Panel Mount Interface | 600 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 2 |
| Configuration | 8 GB |
| Sustainability Information | |
| EPEAT Compliant | EPEAT Bronze |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
