24" Diagonal Class (23.8" viewable) - QBC Series LED-backlit LCD display - digital signage - Tizen OS - 1080p 1920 x 1080
| Main Specifications | |
|---|---|
| Product Description | Samsung QB24C QBC Series - 24" Class (23.8" viewable) LED-backlit LCD display - Full HD - for digital signage |
| Product Type | LED-backlit LCD flat panel display |
| Diagonal Class | 24" |
| Diagonal Size | 23.8" |
| Commercial Use | Yes - digital signage |
| Platform | Tizen OS |
| Resolution | 1920 x 1080 |
| Display Format | 1080p |
| Video Interface | HDMI |
| HDMI Ports Qty | 1 ports |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| Technology | ADS |
| LCD Backlight Technology | LED backlight |
| Image Aspect Ratio | 16:9 |
| TV Tuner | No tuner |
| Commercial Features | SMART Signage Platform, Home UI, Samsung VXT CMS |
| Picture Enhancements | Mega Dynamic Contrast Ratio, 72% Color Gamut NTSC |
| Storage Capacity | 8 GB |
| USB | Yes |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 38.5 watt |
| Dimensions (WxDxH) - without stand | 21.6 in x 1.3 in x 13.2 in |
| Weight | 6.61 lbs |
| General | |
| Product Type | LED-backlit LCD flat panel display |
| Power Consumption Operational | 38.5 watt |
| Diagonal Class | 24" |
| Diagonal Size | 23.8" |
| Commercial Use | Yes - digital signage |
| Series | QBC Series |
| Platform | Tizen OS |
| Operating System | Tizen OS 7.0 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 1 ports |
| Picture Enhancements | Mega Dynamic Contrast Ratio, 72% Color Gamut NTSC |
| Design | Compact Design |
| Dimensions | Without stand |
| Width | 21.6 in |
| Depth | 1.3 in |
| Height | 13.2 in |
| Weight | 6.61 lbs |
| Miscellaneous | |
| Compliant Standards | EMC Class B, IP5X, HDCP 2.2, Safety 60950-1, Safety 62368-1 |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Sleep | 0.5 watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Display | |
| LCD Display Technology | ADS |
| Pixel Pitch | 0.2745 mm |
| Resolution | 1920 x 1080 |
| Display Format | 1080p |
| Image Aspect Ratio | 16:9 |
| LCD Backlight Technology | LED backlight |
| Coating | 25% Glass Haze |
| Image Contrast Ratio | 1000:1 |
| Brightness | 250 cd/m² |
| Viewing Angle | 178° |
| Viewing Angle (Vertical) | 178° |
| Response Time | 14 ms |
| Commercial Features | SMART Signage Platform, Home UI, Samsung VXT CMS |
| Operation Hours / Days | 16 / 7 |
| Additional Features | Center IR |
| Connections | |

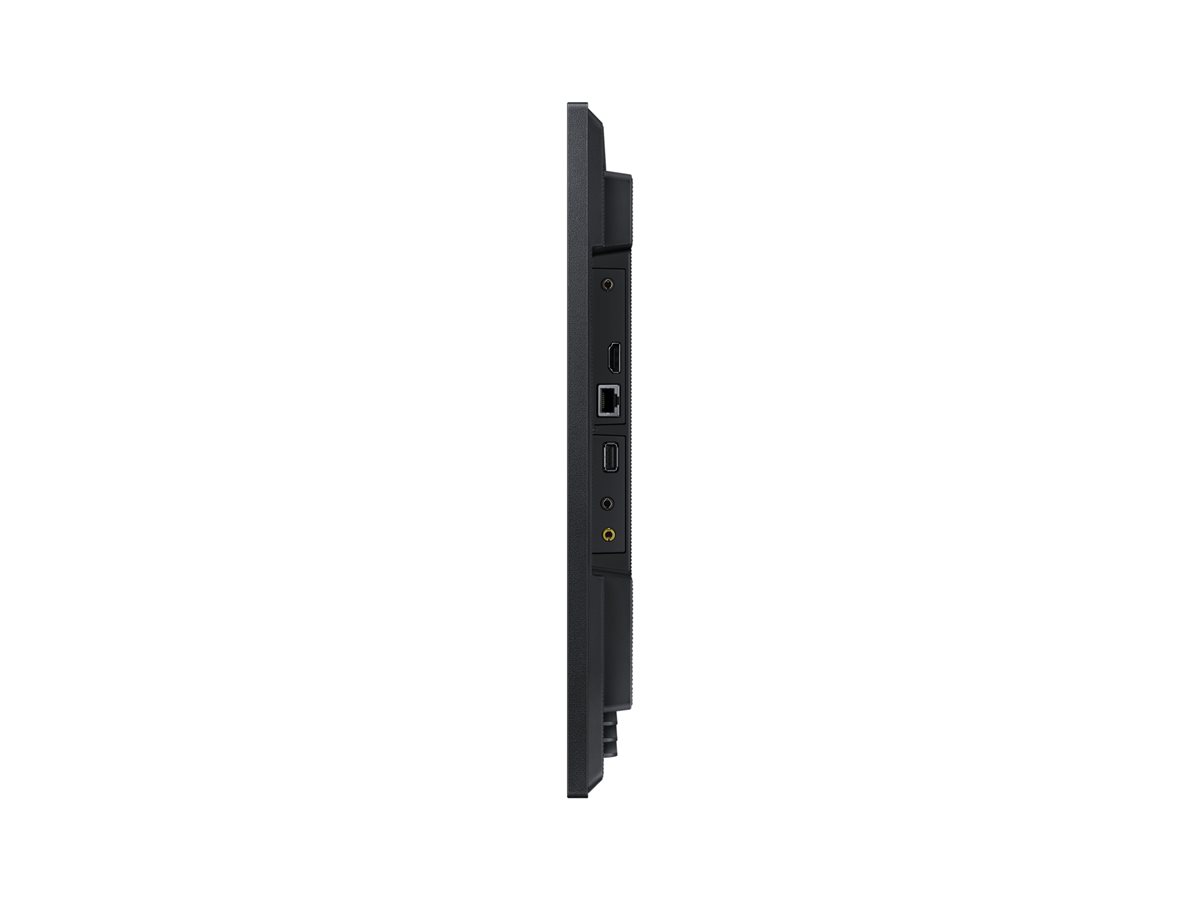

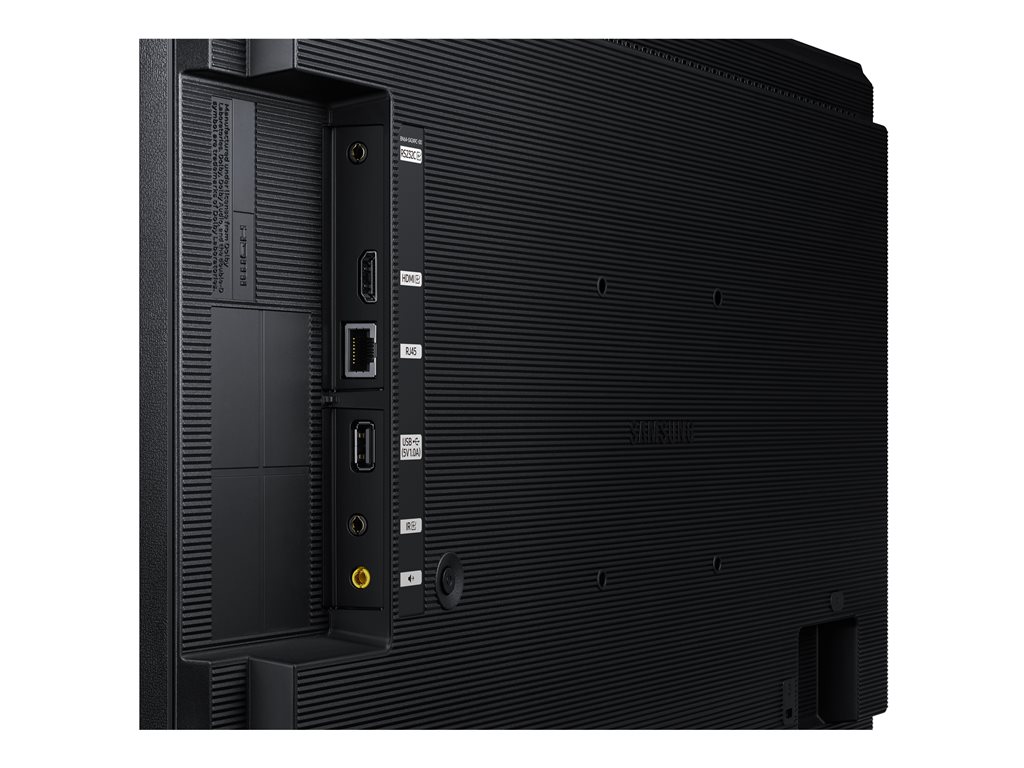

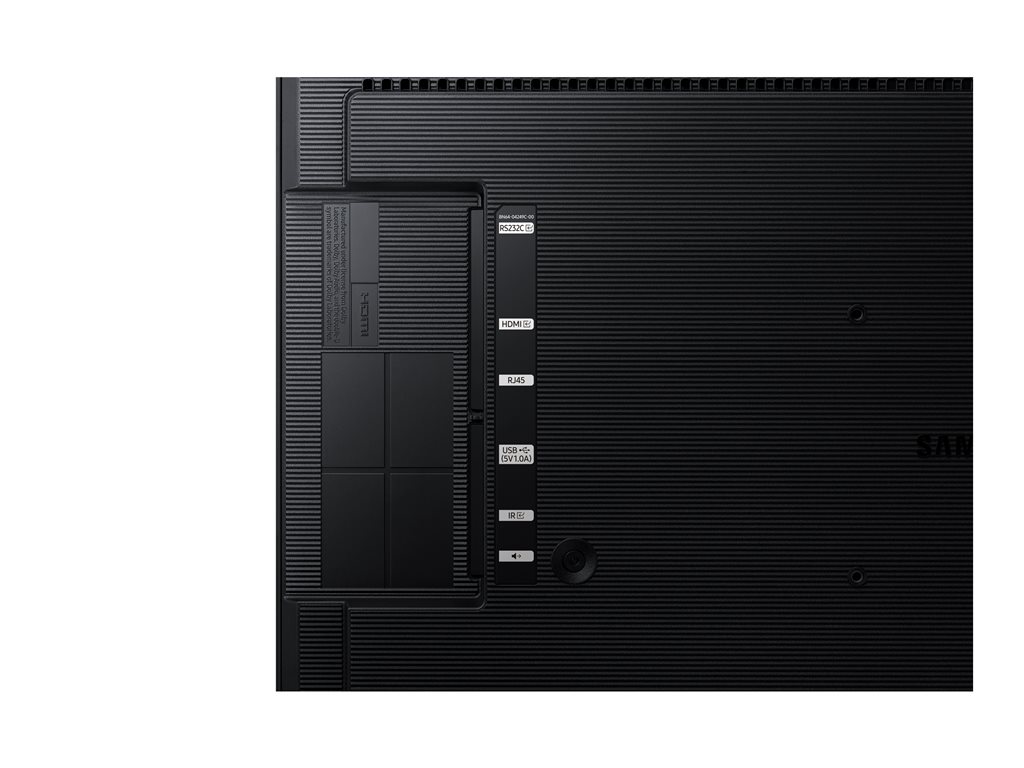

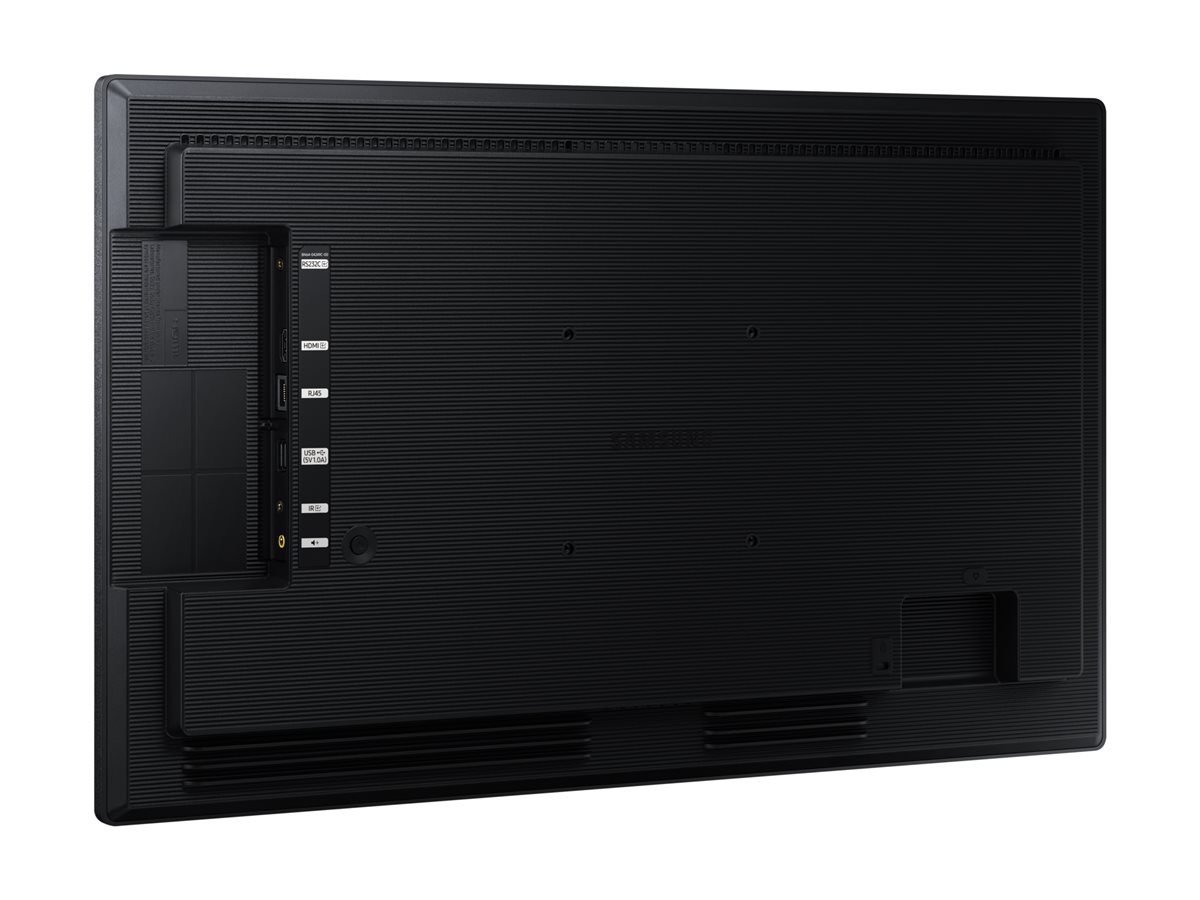

| Connector Type | HDMI input ¦ USB ¦ Audio line-out ¦ RS-232 input ¦ LAN input ¦ Infrared input |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 24.4 in |
| Depth (Shipping) | 4.8 in |
| Height (Shipping) | 16.5 in |
| Weight (Shipping) | 9.04 lbs |
| Network & Internet Multimedia | |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| LAN Protocol | Ethernet |
| Stands & Mounts | |

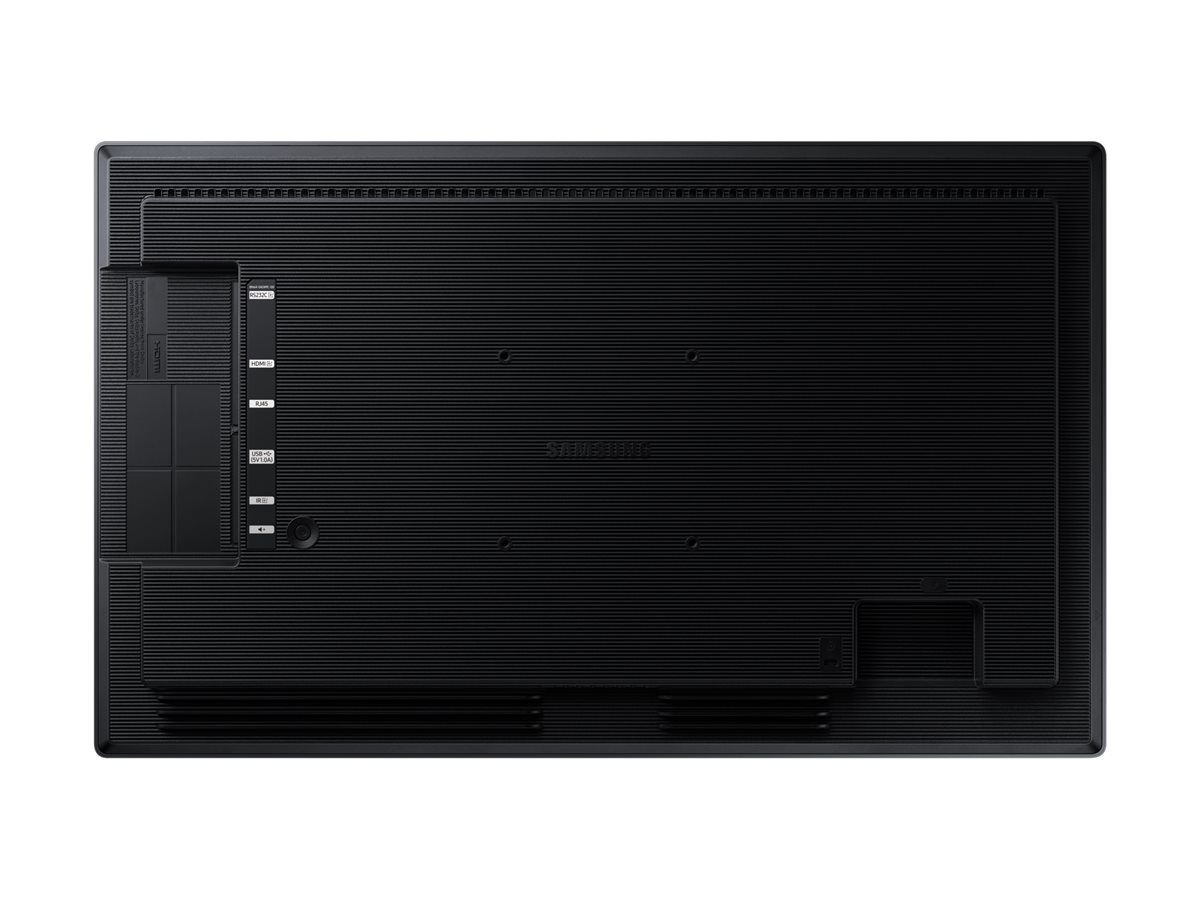

| Flat Panel Mount Interface | 100 x 100 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 1 |
| Configuration | 8 GB |
