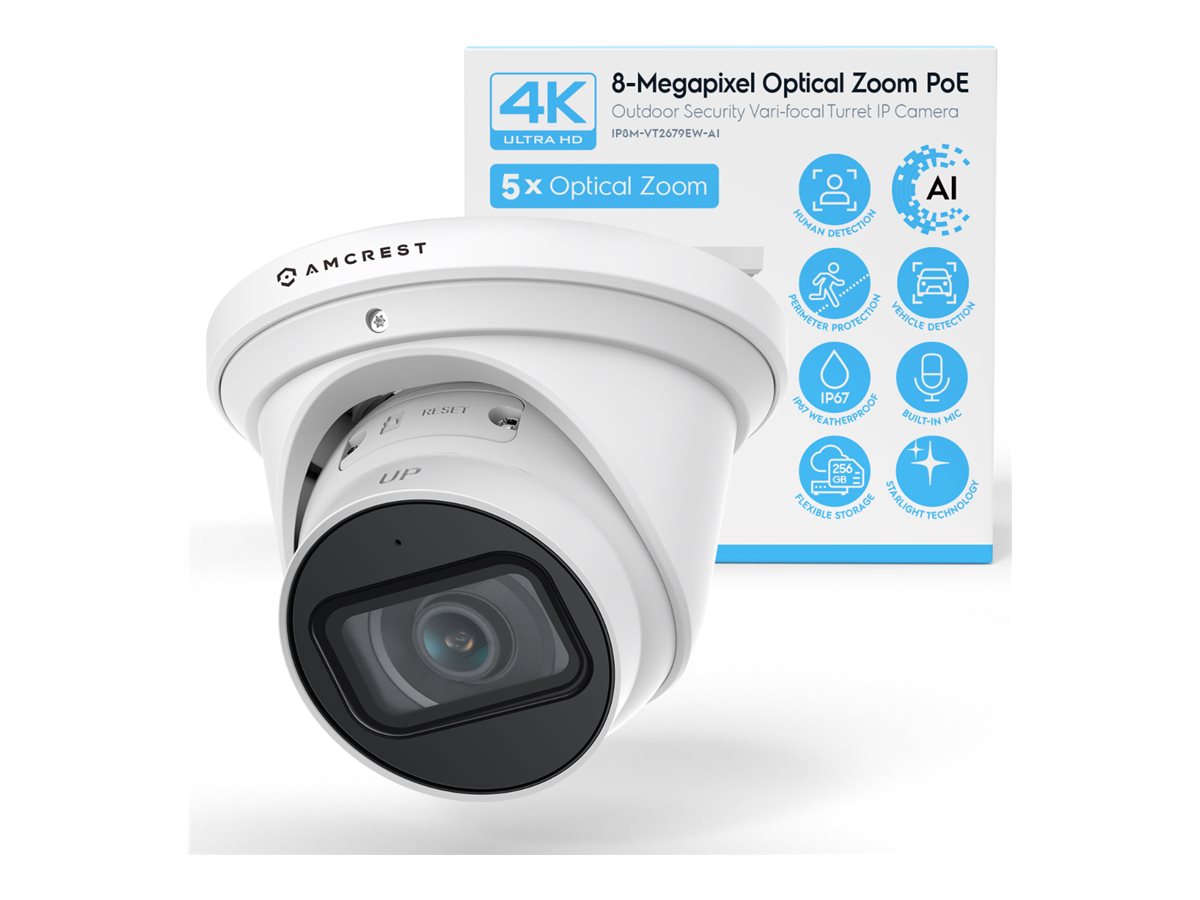

Amcrest - Amcrest IP8M-VT2679EW-AI

Network panoramic camera - turret - outdoor - vandal / weatherproof - color (Day&Night) - 8 MP - 3840 x 2160 - 4K - M14 mount - fixed iris - audio - LAN 10/100 - H.264, H.265 - DC 12 V / PoE

Amcrest
IP8M-VT2679EW-AI
N/A
0850047100207
N/A
New

Price: $208.00

MSRP: $194.99
Total Available: 0

Product Description

Additional Details

What's Included

Specifications

Main Specifications
Product Description Amcrest IP8M-VT2679EW-AI - network panoramic camera - turret
Device Type Network panoramic camera - fixed - turret - outdoor - vandal / weatherproof
Audio Yes: built-in microphone
Dimensions (WxDxH) 4.8 in x 4.8 in x 4.3 in
Color White
Connectivity Technology Wired
Camera Color - Day&Night
Optical Zoom 5 x
Max Resolution 3840 x 2160
Frame Rate (max) 30 frames per second
Motion Detection Yes
Video Modes 4K
Optical Sensor Type Progressive Scan CMOS - 1/2.7" - 8 MP
Minimum Illumination 0.005 lux - color - F1.5 - 30 IRE ¦ 0.0005 lux - B&W - F1.5 - 30 IRE
Focal Length 2.7 mm - 13.5 mm
Lens Mounting M14 mount
Lens Iris F/1.5 - fixed iris
Panning Range (degree) 0 to 360
Tilting Range (degree) 0 to 78
Interfaces Ethernet 10Base-T/100Base-TX
Voltage DC 12 V / PoE
Features Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Scene Self-adaptation (SSA), white balance, Gain Control, 3D Noise Reduction Technology, human detection, Vehicle Detection, tripwire detection, intrusion detection, Region of Interest (ROI), Smart Illumination, mirror lock, privacy masking (up to 4 areas), face detection, perimeter detection, Starlight Technology, Advanced Zone Detection
Environmental Parameters (operating) -22 °F - 140 °F; 0 - 95% relative humidity
General
Device Type Network panoramic camera
Audio Support Yes: built-in microphone
Audio Formats G.711u, G.711a, G.726, PCM
Form Factor Turret
Connectivity Technology Wired
Width 4.8 in
Depth 4.8 in
Height 4.3 in
Expansion / Connectivity
Ports LAN/power - RJ-45
Supported Memory Cards microSD Card
Miscellaneous
Compliant Standards IP67, IK10, IEEE 802.3at
Color White
Power
Power Requirements DC 12 V / PoE
Environmental Parameters
Min Operating Temperature -22 °F
Max Operating Temperature 140 °F
Relative Humidity (operating) 0 - 95%
Camera
Type Color - Day&Night - fixed - outdoor - vandal / weatherproof
Digital Video Format H.264, H.265
Max Digital Video Resolution 3840 x 2160
Motion Detection Yes
Video Modes 4K
Exposure Range 1/3 sec - 1/100000 sec
Minimum Illumination 0.005 lux - color - F1.5 - 30 IRE ¦ 0.0005 lux - B&W - F1.5 - 30 IRE
Infrared LEDs 2
Infrared Distance 131 ft
Digital Video Capture Resolution 3840 x 2160, 3072 x 2048, 3072 x 1728, 2880 x 1620, 2688 x 1520, 2048 x 1536, 2304 x 1296, 1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 704 x 480, 352 x 288, 352 x 240
Frame Rate (max) 30 frames per second
RAM 256 MB
Flash Memory 128 GB
Features Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Scene Self-adaptation (SSA), white balance, Gain Control, 3D Noise Reduction Technology, human detection, Vehicle Detection, tripwire detection, intrusion detection, Region of Interest (ROI), Smart Illumination, mirror lock, privacy masking (up to 4 areas), face detection, perimeter detection, Starlight Technology, Advanced Zone Detection
Lens Construction
Type M14 mount
Optical Zoom 5 x
Focal Length 2.7 mm - 13.5 mm
Lens Iris F/1.5 fixed iris
Horizontal Field of View (degree) 113 - 31
Vertical Field of View (degree) 58 - 18
Diagonal Field of View (degree) 138 - 36
Image Sensor
Type 8 MP Progressive Scan CMOS 1/2.7"
Interfaces
Network Interface Ethernet 10Base-T/100Base-TX
Network Protocols IPv4, IPv6, HTTP, TCP, UDP, RTSP, RTMP, SMTP, FTP, DHCP, DDNS, UPnP, NTP
Panning
Range (degree) 0 to 360
Tilting
Range (degree) 0 to 78
