Relay switch - wired - 10/100 Ethernet
| Main Specifications | |
|---|---|

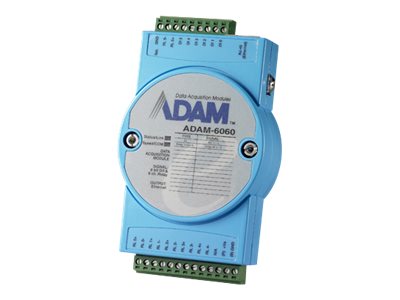

| Product Description | ADAM ADAM-6060 - relay switch |
| Product Type | Relay switch |
| Integrated Components | Watchdog timer |
| Power Source | Hardwired |
| Connectivity | Wired - 10/100 Ethernet |
| Dimensions (WxDxH) | 2.8 in x 1.2 in x 4.7 in |
| General | |
| Product Type | Relay switch |
| Integrated Components | Watchdog timer |
| Power Source | Hardwired |
| Connectivity Technology | Wired - Ethernet, Fast Ethernet, Modbus |
| Interfaces Details | LAN ¦ Relay |
| Features | Remote access, Peer-to-Peer (P2P) communications, 6 control channels, wall mountable, DIN rail mountable SNMP support, TCP support, RESTful APIs, 2000V isolation, MQTT support |
| Miscellaneous | |
| Product Material | PC/ABS |
| Encryption Algorithm | MODBUS, TLS |
| Voltage Required | DC 10 - 30 V |
| Power Consumption Operational | 2 Watt |
| Compliant Standards | KCC, FCC, UL, RoHS, cULus |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 20 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 2.8 in |
| Depth | 1.2 in |
| Height | 4.7 in |
