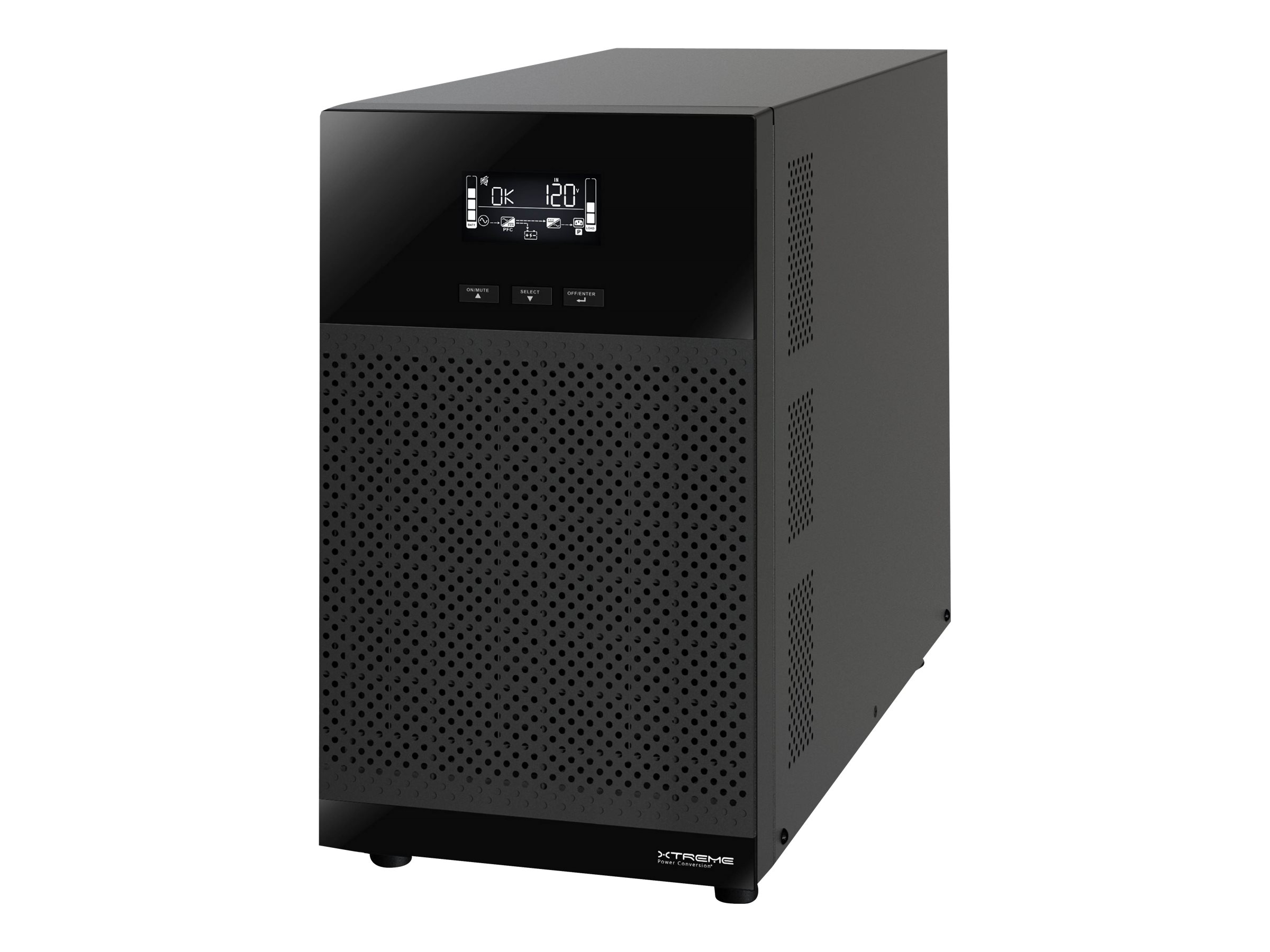

UPS - tower - AC 120 V - 1450 Watt - 1500 VA - 9 Ah - RS-232, USB - output connectors: 6 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | XPC T91 Series T91-1500 - UPS - tower - 1450 Watt - 1500 VA - TAA Compliant |
| Device Type | UPS - external |
| Weight | 34.39 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 100/110/115/120/127 V |
| Power Capacity | 1450 Watt / 1500 VA |
| Input Connectors | 1 x power NEMA 5-15P |
| Output connectors | 6 x power NEMA 5-15R |
| Battery | - 9 Ah |
| Batteries Qty | 3 |
| Run Time (Up To) | 3 min at full load |
| Networking | RS-232, USB |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 5.6 in x 15.6 in x 8.6 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | UPS - external |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) ¦ 1 x management (USB) - 4 pin USB Type B |
| Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - batteries - 3 years |
| Miscellaneous | |
| Cables Included | Power cable (NEMA 5-15P) - integrated - 6 ft ¦ USB cable - external |
| Equipment Protection Value | 50000 US Dollars |
| Features | LCD display, LED indicators, firmware upgradable, cooling fan, adjustable charging current, generator compatible, double conversion, zero transfer time, Unity Power Factor |
| Compliant Standards | UL, cUL, UL 1778, FCC Part 15 B, RoHS, cTUVus |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Software / System Requirements | |
| Software Included | ViewPower |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Sound Emission | 50 dB |
| Battery | |
| Quantity | 3 |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 1 min at 125% load ¦ 10 sec at 150% load ¦ 10 min at half load ¦ 3 min at full load |
| Recharge Time | 3 hours |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 55 - 150 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 6 x power NEMA 5-15R |
| Output Voltage | AC 100/110/115/120/127 V 50/60 Hz |
| Power Capacity | 1450 Watt / 1500 VA |
| Output Waveform | Sinewave |
| Efficiency | 98% Eco mode, 92% online mode |
| Dimensions & Weight | |
| Width | 5.6 in |
| Depth | 15.6 in |
| Height | 8.6 in |
| Weight | 34.39 lbs |
