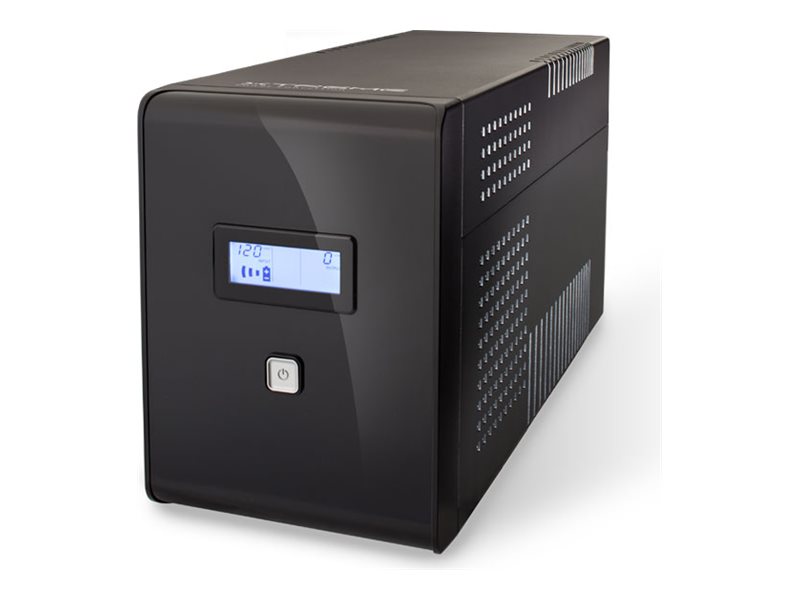

UPS - AC 120 V - 1200 Watt - 2000 VA - 2 x battery - lead acid - 9 Ah - USB, RS-232 - output connectors: 8 - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | XPC S70 Series S70-2000 - UPS - 1200 Watt - 2000 VA - lead acid - 9 Ah - TAA Compliant |
| Device Type | UPS - external |
| Weight | 0.41 oz |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V |
| Power Capacity | 1200 Watt / 2000 VA |
| Input Connectors | 1 x power NEMA 5-15P |
| Output connectors | 8 x power NEMA 5-15R |
| Battery | Lead acid - 9 Ah |
| Batteries Qty | 2 |
| Networking | USB, RS-232 |
| TAA Compliant | Yes |
| Dimensions (WxDxH) | 5.7 in x 15.6 in x 8.1 in |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | UPS - external |
| Expansion / Connectivity | |
| Interfaces | USB - 4 pin USB Type B ¦ RS-232 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - batteries - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 4 ft ¦ USB cable - external |
| Equipment Protection Value | 25000 US Dollars |
| Features | Low battery alarm, overload alarm, auto restart, Automatic Voltage Regulation (AVR), cooling fan, touch screen LCD display |
| Compliant Standards | RoHS, UL, cUL |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | USB, RS-232 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% |
| Battery | |
| Quantity | 2 |
| Technology | Lead acid |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Recharge Time | 6 hours |
| Transfer Time | 4 ms |
| Features | Maintenance free, sealed |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Frequency Provided | 60 Hz |
| Frequency Required | 60 Hz ± 1% |
| Input Connectors | 1 x power NEMA 5-15P |
| Power Output Connectors Details | 8 x power NEMA 5-15R |
| Output Voltage | AC 120 V 60 Hz |
| Power Capacity | 1200 Watt / 2000 VA |
| Dataline Surge Protection | Network - RJ-45 |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 465 Joules |
| Dimensions & Weight | |
| Width | 5.7 in |
| Depth | 15.6 in |
| Height | 8.1 in |
| Weight | 0.41 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.1 in |
| Shipping Depth | 19.3 in |
| Shipping Height | 11.3 in |
| Shipping Weight | 28 lbs |
