Wireless router 2.4 GHz / 5.8 GHz - with 1 year ConsoleFlow Premium services and LEVEL 2 technical services
| Main Specifications | |
|---|---|

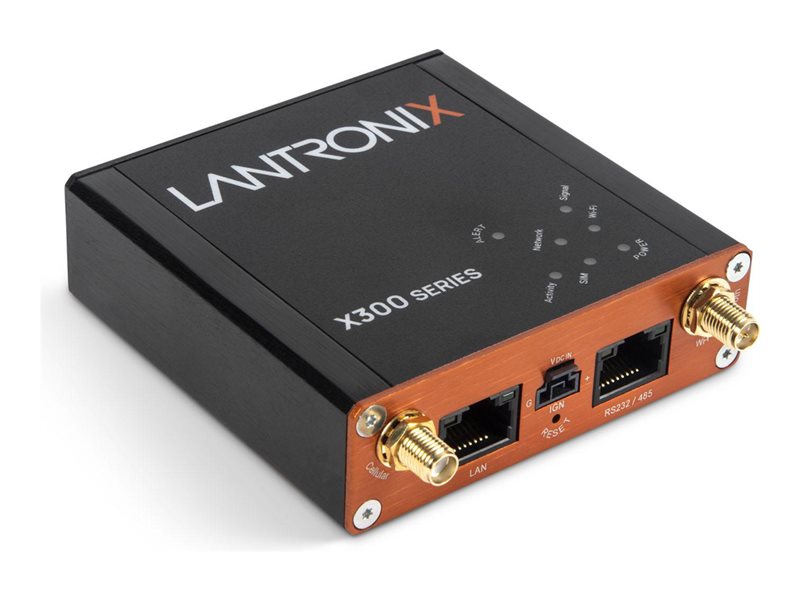

| Product Description | Lantronix X300 Series X303 - wireless router - Wi-Fi 5, Bluetooth - desktop |
| Device Type | Wireless router |
| Enclosure Type | Desktop |
| Bundled Services | 1 year ConsoleFlow Premium services and LEVEL 2 technical services |
| WAN Ports Qty | 1 |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 LE, Ethernet, Fast Ethernet |
| Frequency Band | 2.4 GHz / 5.8 GHz |
| Capacity | IPSec tunnels: 4 channels |
| Network / Transport Protocol | DHCP, DNS, L2TP, PPTP, IPSec, SPP, HTTPs |
| Routing Protocol | GRE |
| Remote Management Protocol | TR-069, NTP, ICMP |
| Features | 8MB SPI flash memory, aluminum alloy enclosure, static routing, port forwarding, dynamic DNS, DNS proxy, NAT support, STP support, PPTP client, OpenVPN client, OpenVPN pass-through, OpenVPN server, secure boot, VLAN support, DMZ support |
| Dimensions (WxDxH) | 3.1 in x 3.1 in x 0.9 in |
| Weight | 5.29 oz |
| Localization | Worldwide |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Wireless router |
| Bundled Services | 1 year ConsoleFlow Premium services and LEVEL 2 technical services |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 LE, Ethernet, Fast Ethernet |
| Frequency Band | 2.4 GHz / 5.8 GHz |
| Capacity | IPSec tunnels: 4 channels |
| Network / Transport Protocol | DHCP, DNS, L2TP, PPTP, IPSec, SPP, HTTPs |
| Routing Protocol | GRE |
| Remote Management Protocol | TR-069, NTP, ICMP |
| Encryption Algorithm | WPA, WPA-PSK, WPA2-PSK, WPA3-PSK, WPA2-Enterprise, WPA3-Enterprise |
| Features | 8MB SPI flash memory, aluminum alloy enclosure, static routing, port forwarding, dynamic DNS, DNS proxy, NAT support, STP support, PPTP client, OpenVPN client, OpenVPN pass-through, OpenVPN server, secure boot, VLAN support, DMZ support |
| Processor | 1 x ARM9 ARM926EJ 600 MHz |
| RAM | 128 MB DDR2 SDRAM |
| Flash Memory | 256 MB |
| Status Indicators | Status, power, SIM status, Wi-Fi, active, network, signal, alert |
| Expansion / Connectivity | |
| Interfaces | Antenna: 1 x RP-SMA ¦ LAN: 1 x 10Base-T/100Base-TX - RJ-45 ¦ Serial: 1 x RS-232 - RJ-45 ¦ Serial: 1 x RS-485 - RJ-45 ¦ 1 x DI ¦ 1 x DO |

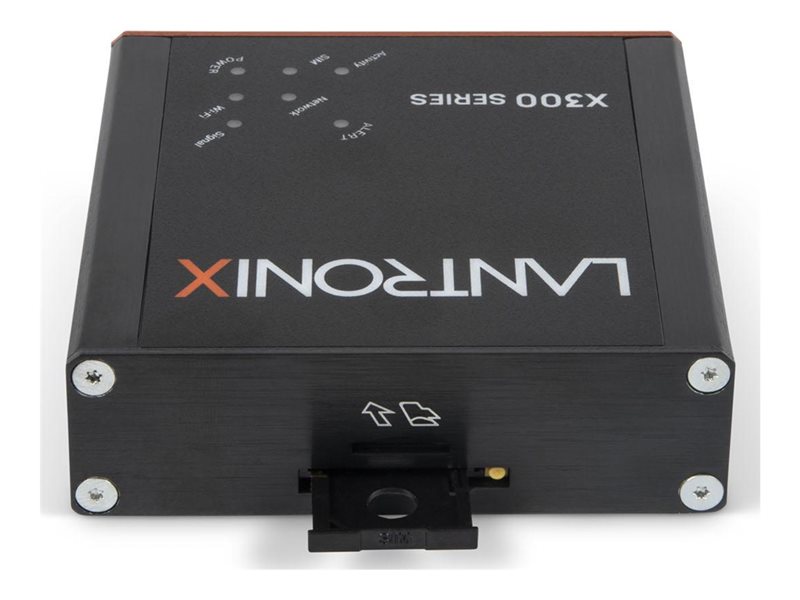

| Expansion Slots | 1 (total) / 1 (free) x SIM ¦ 1 (total) / 1 (free) x microSD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Included Accessories | LTE antenna |
| Cables Included | 1 x antenna cable - 10 ft |
| Localization | Worldwide |
| Power | |
| Power Device | External power adapter - 12 watt |
| Software / System Requirements | |
| OS Provided | Linux |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 0 - 95% RH |
| Dimensions & Weight | |
| Width | 3.1 in |
| Depth | 3.1 in |
| Height | 0.9 in |
| Weight | 5.29 oz |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 2 |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | LTE Cat M1 |
