Power supply (internal) - ATX12V - 80 PLUS Gold - AC 100-240 V - 750 Watt
| Main Specifications | |
|---|---|

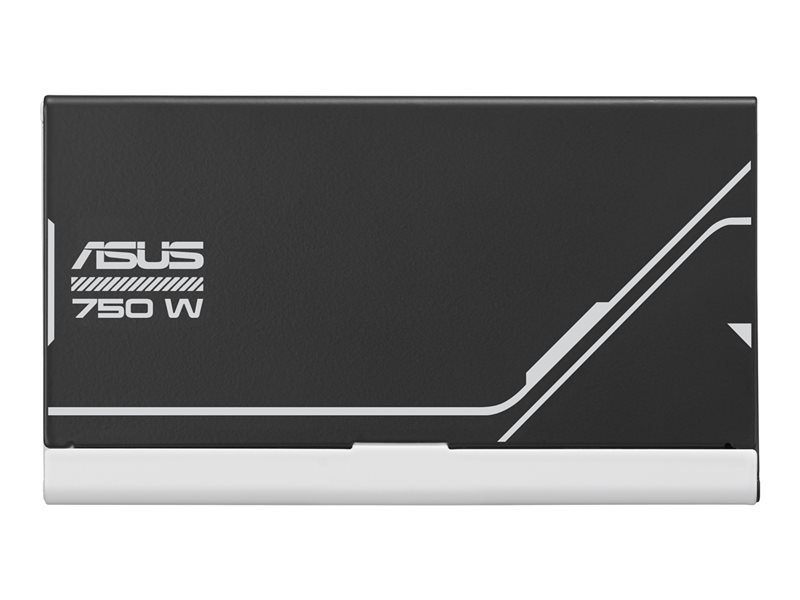

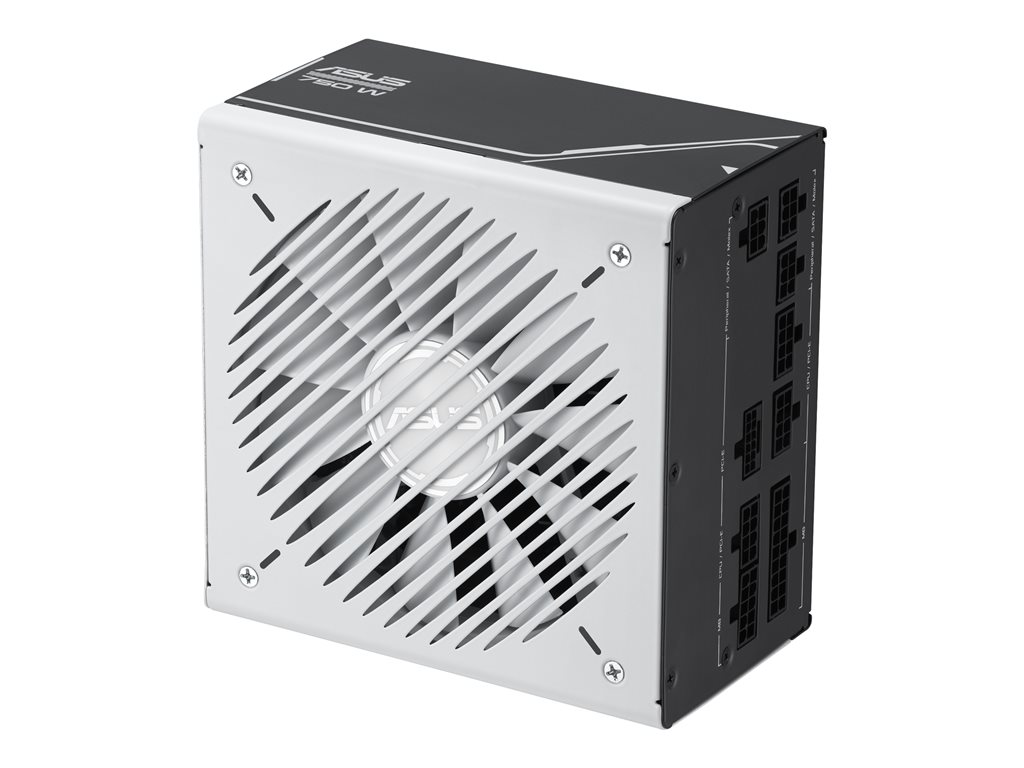

| Product Description | ASUS PRIME - power supply - 750 watt |
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V |
| 80 PLUS Certification | 80 PLUS Gold |
| Weight | 3.23 lbs |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
| Power Capacity | 750 watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |

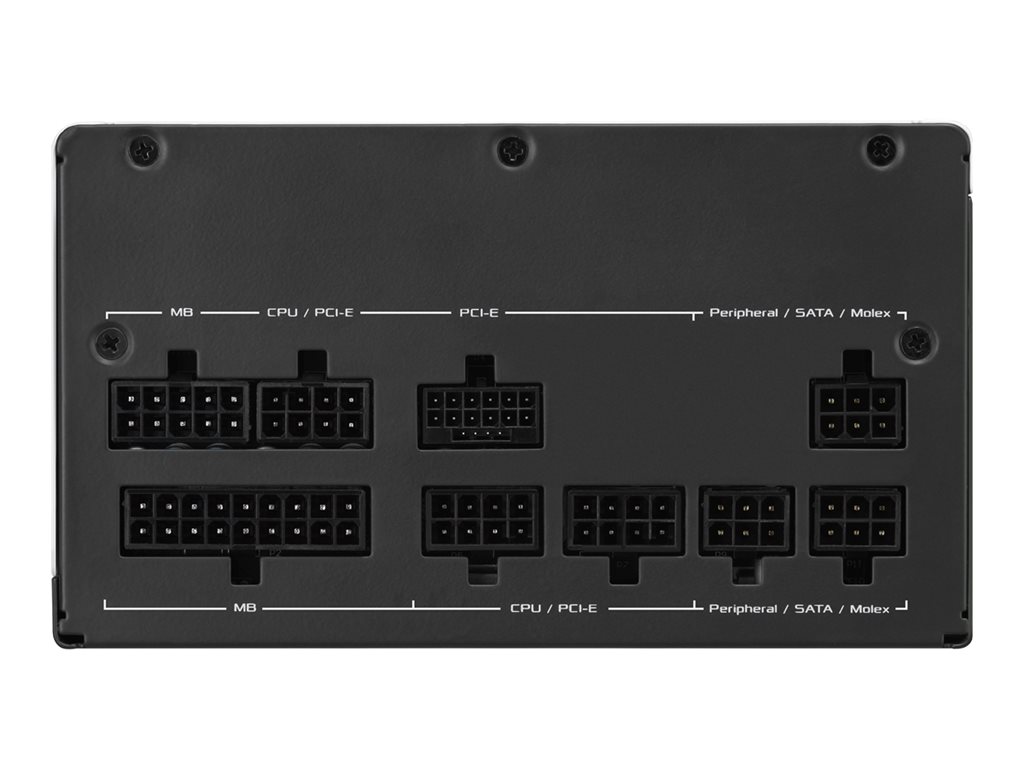

| Output connectors | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 3 x 8 pin PCI Express power with detachable 2 pin section ¦ 5 x 15 pin Serial ATA power ¦ 3 x 4 pin internal power ¦ 1 x 16 pin PCI Express power |
| Modular Cable Management | Yes |
| Cooling System | 135 mm fan |
| Dimensions (WxDxH) | 5.9 in x 5.9 in x 3.4 in |
| Manufacturer Warranty | 8-year warranty |
| General | |
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V |
| PSU Form Factor | ATX |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 8 years |
| Miscellaneous | |
| Cooling System | 135 mm fan |
| Features | Overpower protection, overvoltage protection, undervoltage protection, short-circuit protection, overcurrent protection, overheat protection, dual ball bearing cooling fan, fully modular |
| Compliant Standards | RoHS |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 3 x 8 pin PCI Express power with detachable 2 pin section ¦ 5 x 15 pin Serial ATA power ¦ 3 x 4 pin internal power ¦ 1 x 16 pin PCI Express power |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
| Power Capacity | 750 watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 5.9 in |
| Height | 3.4 in |
| Weight | 3.23 lbs |
