Video/audio/infrared/serial/USB/network/power extender - 1GbE, HDMI, HDBaseT 3.0 - USB - 1000Base-T - up to 295 ft
| Main Specifications | |
|---|---|

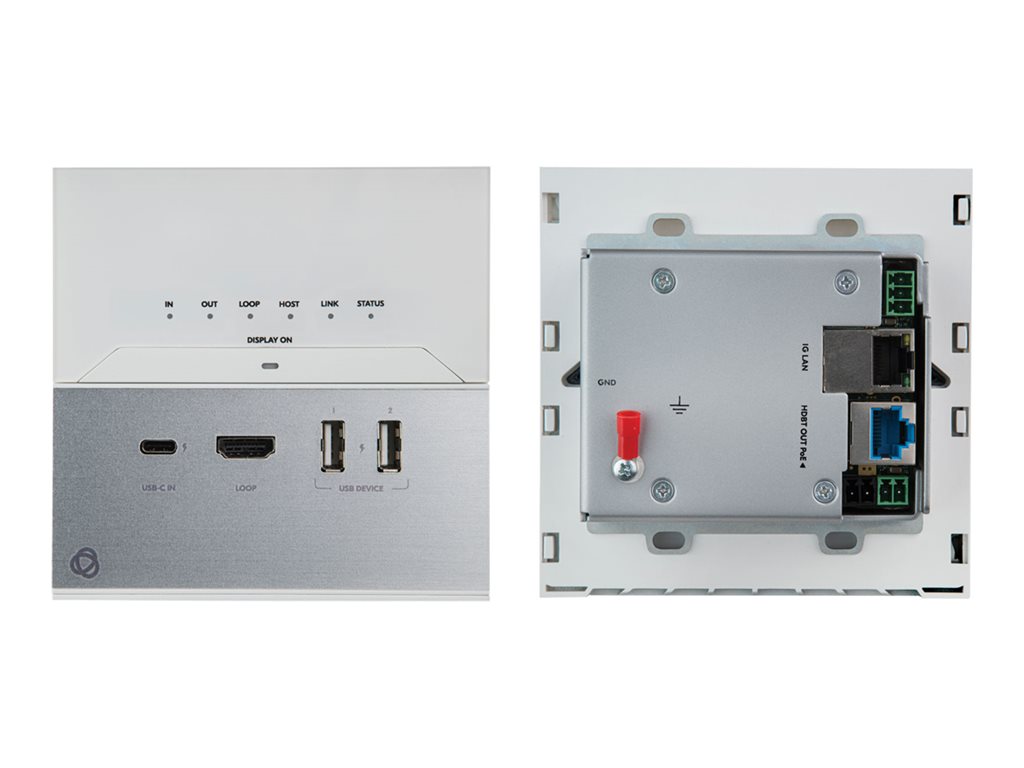

| Product Description | Kramer EXT3-C-WP-XR-T/US(W) - video/audio/infrared/serial/USB/network/power extender - 1GbE, HDMI, HDBaseT 3.0 |
| Device Type | Video/audio/infrared/serial/USB/network/power extender - USB |
| Form Factor | Wall mountable |
| Localization | United States |
| Cabling Type | 1000Base-T |
| Data Transfer Rate | 18 Gbps |
| Data Link Protocol | 1GbE, HDMI, HDBaseT 3.0 |
| Max Transfer Distance | 295 ft |
| Power | DC 20 V |
| Dimensions (WxDxH) | 4.8 in x 4.8 in x 1.9 in |
| Weight | 3.42 oz |
| General | |
| Device Type | Video/audio/infrared/serial/USB/network/power extender |
| Form Factor | Wall mountable |
| Built-in Devices | USB hub |
| Color | White decora |
| Localization | United States |
| Expansion / Connectivity | |
| Interfaces | 1 x USB-C / DisplayPort female ¦ 1 x HDBaseT (output) - RJ-45 female ¦ 1 x HDMI (Tx LOOP) - 19 pin HDMI Type A female ¦ 1 x IR (output) - 2 pin terminal block ¦ 2 x USB 2.0 - Type A female ¦ 1 x Ethernet 10/100/1000Base-T (PoE) - RJ-45 female ¦ 1 x RS-232 - 3 pin terminal block |
| Miscellaneous | |
| Cables Included | USB-C cable - 3.3 ft |
| Compliant Standards | RoHS, WEEE, UKCA |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-T |
| Data Link Protocol | 1GbE, HDMI, HDBaseT 3.0 |
| Data Transfer Rate | 18 Gbps |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 4K @ 60 Hz |
| Max Transfer Distance | 295 ft |
| Status Indicators | Power, host, input, output, link |
| Features | 3D support, 4K resolution support, 2K resolution support, Dolby TrueHD support, x.v.Color support, DTS-HD support, HDR10 support, aluminum housing, 4:4:4 chroma subsampling support, Deep Color support, LED status indicators, Video ALT mode |
| Compliant Standards | USB 1.1, USB 2.0, HDCP 2.3 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | DC 20 V |
| Power Consumption Operational | 88 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 4.8 in |
| Depth | 4.8 in |
| Height | 1.9 in |
| Weight | 3.42 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 23.49 oz |
