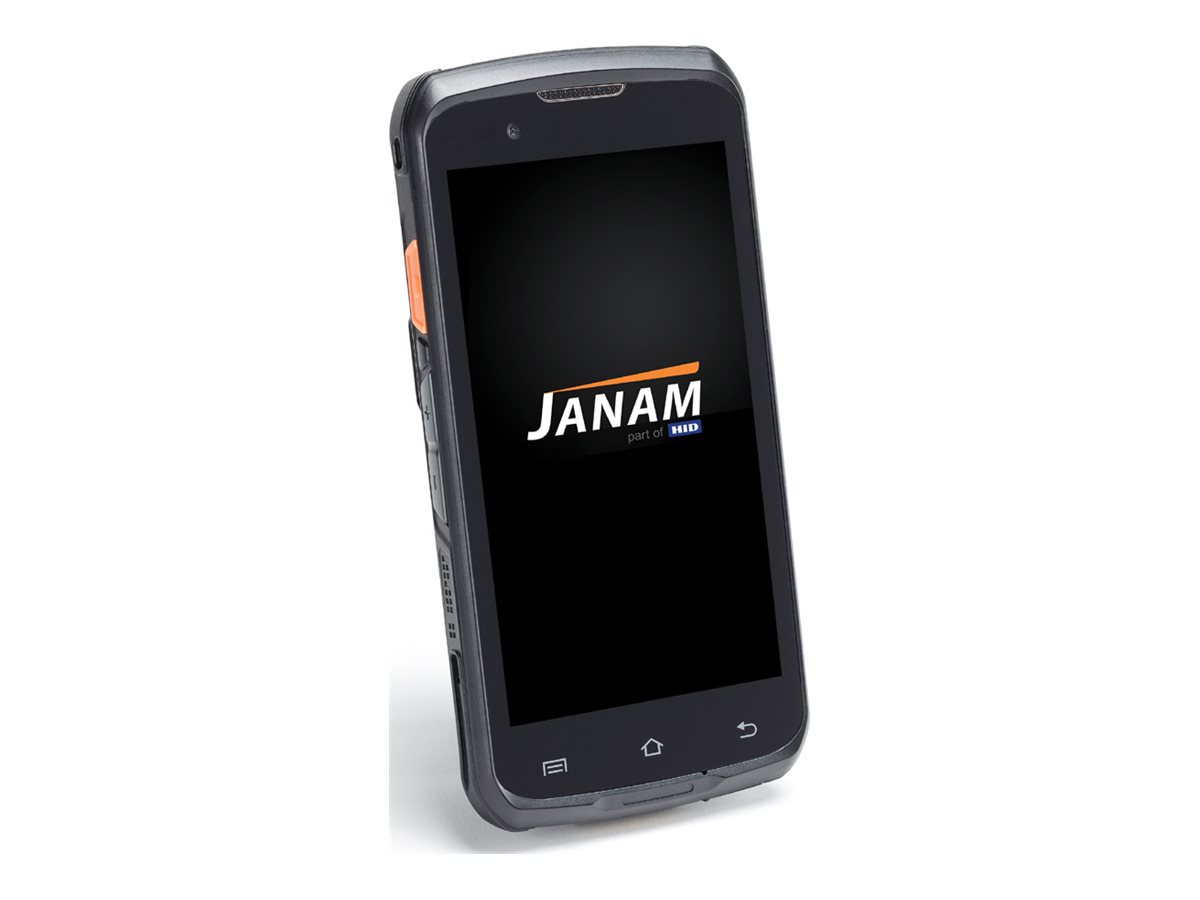

Janam - Janam XT40

Data collection terminal - rugged - Android 13 - 64 GB eMMC - 5" TFT (720 x 1280) - rear camera + front camera - barcode reader - (2D imager) - microSD slot - 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w, Bluetooth, NFC - 4G

Janam
XT40-ATHLRMGW00
N/A
N/A
N/A
New

Price: $762.00

MSRP: $1,695.00
Total Available: 1

Product Description

Additional Details

What's Included

Specifications

Main Specifications
Product Description Janam XT40 - data collection terminal - Android 13 - 64 GB - 5" - 4G
Product Type Data collection terminal - rugged
Operating System Android 13
Display 5" TFT - 720 x 1280 - Multi-Touch
Processor Qualcomm Snapdragon 680 SM6225 (8-core)
Processor Clock Speed 2.4 GHz
Storage 64 GB eMMC
RAM 4 GB
Supported Flash Memory Cards microSD, microSDXC
Cellular Technology 4G
Cellular Protocols 4G LTE
Wireless Connectivity 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w, Bluetooth 5.1, NFC
Rear Camera 13 Megapixel focus: automatic
Front Camera 5 Megapixel
Navigation System GPS/GLONASS/Galileo/BeiDou
Barcode Reader Yes (2D imager)
RFID Specification 13.56 MHz, ISO 14443A, ISO 14443B, ISO 15693, Mifare, DESFire, Felica
Battery Run Time Up to 12 hours
Dimensions (WxDxH) 3 in x 0.7 in x 6 in
Weight 9.88 oz
Manufacturer Warranty 2-year warranty
General
Product Type Data collection terminal - rugged
Operating System Android 13
Memory
Storage 64 GB eMMC
RAM 4 GB - LPDDR4 SDRAM
Supported Flash Memory Cards microSD, microSDXC
Max Supported Capacity 512 GB
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Miscellaneous
Sensors Accelerometer, proximity sensor, light sensor
Features 1.5 m drop resistant, ESD protection up to 8 kV (direct), ESD protection up to 15 kV (air), LED indicator, side trigger, volume control
Vibrating Alert Yes
Included Accessories Battery, hand strap, screen protector
Compliant Standards IP65, RoHS, WEEE, FCC, IC, IEC 60950, EMC, SAR
Processor
Processor Qualcomm Snapdragon 680 SM6225
Processor Clock Speed 2.4 GHz
Number of Cores 8-core
Environmental Parameters
Min Operating Temperature -4 °F
Max Operating Temperature 140 °F
Humidity Range Operating 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Battery
Technology Lithium ion
Capacity 4500 mAh
Run Time Up to 12 hours
Display
Type 5" TFT
Resolution 720 x 1280
Touchscreen Multi-Touch
Features Capacitive touch screen
Communications
Cellular Technology 4G
Cellular Protocols 4G LTE
Wireless Connectivity 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w, Bluetooth 5.1, NFC
Security Protocols & Features WEP, WPA, WPA2-Personal, TKIP, AES, WPA3-Personal, WPA2-Enterprise, WPA3-Enterprise, GCMP, EAP-TLS
Dimensions & Weight
Width 3 in
Depth 0.7 in
Height 6 in
Weight 9.88 oz
Barcodes
Barcode Reader Yes
Scan Element Type 2D imager
RFID
Frequency 13.56 MHz
RFID Specification ISO 14443A, ISO 14443B, ISO 15693, Mifare, DESFire, Felica
Multimedia
Audio Microphone, speaker
Expansion and Connectivity
Expansion Slots 1 x microSDXC
Interfaces 1 x USB-C ¦ 1 x headset mini jack (3.5mm)
Navigation System
Receiver GPS/GLONASS/Galileo/BeiDou
Front Camera
Sensor Resolution 5 Megapixel
Rear Camera
Sensor Resolution 13 Megapixel
Focus Adjustment Automatic
Light Source LED flash
