Data collection terminal - rugged - Android 13 - 64 GB eMMC - 5" TFT (720 x 1280) - rear camera + front camera - barcode reader - (2D imager) - microSD slot - 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w, Bluetooth, NFC - 4G
| Main Specifications | |
|---|---|

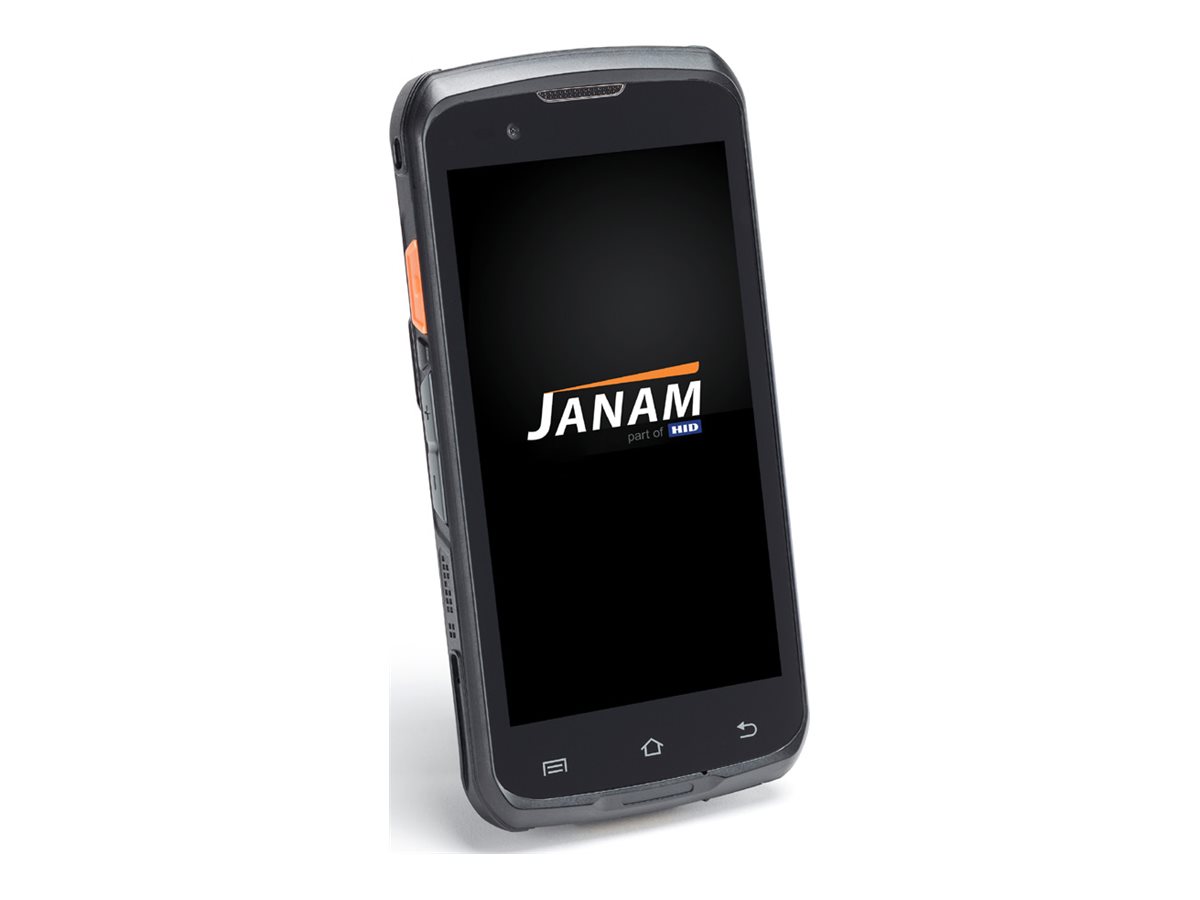

| Product Description | Janam XT40 - data collection terminal - Android 13 - 64 GB - 5" - 4G |
| Product Type | Data collection terminal - rugged |
| Operating System | Android 13 |
| Display | 5" TFT - 720 x 1280 - Multi-Touch |
| Processor | Qualcomm Snapdragon 680 SM6225 (8-core) |
| Processor Clock Speed | 2.4 GHz |
| Storage | 64 GB eMMC |
| RAM | 4 GB |
| Supported Flash Memory Cards | microSD, microSDXC |
| Cellular Technology | 4G |
| Cellular Protocols | 4G LTE |
| Wireless Connectivity | 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w, Bluetooth 5.1, NFC |
| Rear Camera | 13 Megapixel focus: automatic |
| Front Camera | 5 Megapixel |
| Navigation System | GPS/GLONASS/Galileo/BeiDou |
| Barcode Reader | Yes (2D imager) |
| RFID Specification | 13.56 MHz, ISO 14443A, ISO 14443B, ISO 15693, Mifare, DESFire, Felica |
| Battery Run Time | Up to 12 hours |
| Dimensions (WxDxH) | 3 in x 0.7 in x 6 in |
| Weight | 9.88 oz |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Product Type | Data collection terminal - rugged |
| Operating System | Android 13 |
| Memory | |
| Storage | 64 GB eMMC |
| RAM | 4 GB - LPDDR4 SDRAM |
| Supported Flash Memory Cards | microSD, microSDXC |
| Max Supported Capacity | 512 GB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Sensors | Accelerometer, proximity sensor, light sensor |
| Features | 1.5 m drop resistant, ESD protection up to 8 kV (direct), ESD protection up to 15 kV (air), LED indicator, side trigger, volume control |
| Vibrating Alert | Yes |
| Compliant Standards | IP65, RoHS, WEEE, FCC, IC, IEC 60950, EMC, SAR |
| Processor | |
| Processor | Qualcomm Snapdragon 680 SM6225 |
| Processor Clock Speed | 2.4 GHz |
| Number of Cores | 8-core |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Battery | |
| Technology | Lithium ion |
| Capacity | 4500 mAh |
| Run Time | Up to 12 hours |
| Display | |
| Type | 5" TFT |
| Resolution | 720 x 1280 |
| Touchscreen | Multi-Touch |
| Features | Capacitive touch screen |
| Communications | |
| Cellular Technology | 4G |
| Cellular Protocols | 4G LTE |
| Wireless Connectivity | 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w, Bluetooth 5.1, NFC |
| Security Protocols & Features | WEP, WPA, WPA2-Personal, TKIP, AES, WPA3-Personal, WPA2-Enterprise, WPA3-Enterprise, GCMP, EAP-TLS |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 0.7 in |
| Height | 6 in |
| Weight | 9.88 oz |
| Barcodes | |
| Barcode Reader | Yes |
| Scan Element Type | 2D imager |
| RFID | |
| Frequency | 13.56 MHz |
| RFID Specification | ISO 14443A, ISO 14443B, ISO 15693, Mifare, DESFire, Felica |
| Multimedia | |
| Audio | Microphone, speaker |
| Expansion and Connectivity | |
| Expansion Slots | 1 x microSDXC |
| Interfaces | 1 x USB-C ¦ 1 x headset mini jack (3.5mm) |
| Navigation System | |
| Receiver | GPS/GLONASS/Galileo/BeiDou |
| Front Camera | |
| Sensor Resolution | 5 Megapixel |
| Rear Camera | |
| Sensor Resolution | 13 Megapixel |
| Focus Adjustment | Automatic |
| Light Source | LED flash |
