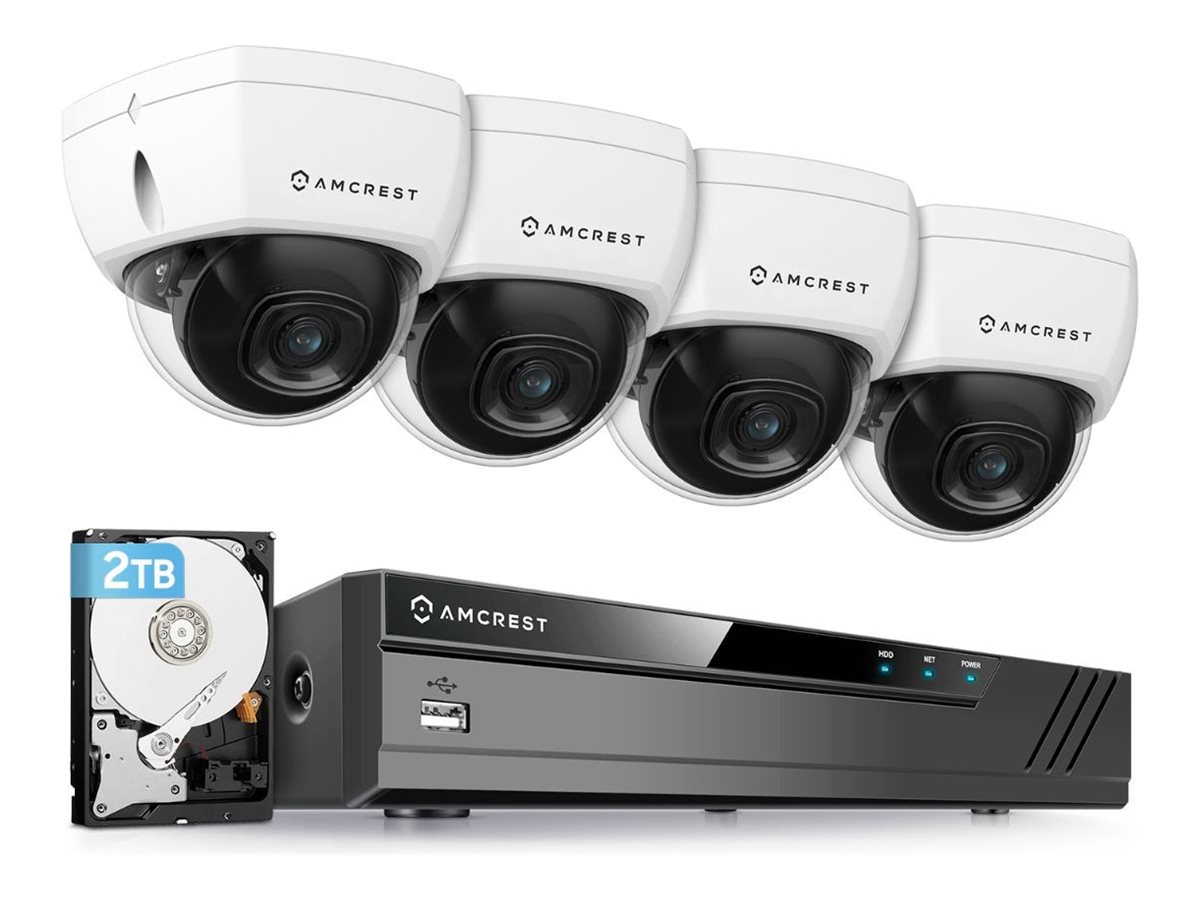

DVR + camera(s) - wired (LAN 10/100) - 8 channels - 1 x 2 TB - 4 camera(s) - dome - CMOS - white
| Main Specifications | |
|---|---|
| Product Description | Amcrest NV4108E-IP8M-2493EW4-2TB - DVR + camera(s) - wired (LAN 10/100) |
| System | DVR + camera(s) - wired - Ethernet 10Base-T/100Base-TX |
| Security DVR | 8 channels |
| Hard Drive | 1 x 2 TB |
| Camera | 4 cameras - indoor/outdoor - dome - night vision |
| Color | White |
| General | |
| System | DVR + camera(s) - wired |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Package Content | DVR, 4 cameras |
| Color | White |
| Hard Drive | |
| Quantity Installed | 1 |
| Capacity | 2 TB |
| Interface | Serial ATA |
| Supported Max Total Capacity | 10 TB |
| Connections | |
| Video Input Ports | RJ-45 x 8 (POE) |
| Video Output Ports | HDMI x 1, VGA x 1 |
| Audio Input Ports | Mini-phone 3.5 mm x 1 |
| Audio Output Ports | Mini-phone 3.5 mm x 1 |
| Network Port | 10/100Base-TX |
| Other Ports | USB 2.0 x 2 |
| Dimensions & Weight | |
| Details | DVR: 10.2 in x 9.1 in x 1.9 in - 32.5 oz ¦ Camera: 4.3 in x 4.3 in x 3.2 in - 12.3 oz |
| Security DVR | |
| Video Channels | 8 |
| Frame Rate (Record) | 15 fps, 30 fps, 25 fps |
| Compression Format | H.264, H.265, HEVC |
| Record Events | Video loss, motion detection, scheduled, manual, alarm |
| Features | Smartphone support, Pan/Tilt/Zoom support, privacy masking |
| Cameras | |
| Quantity | 4 cameras |
| Camera Type | Indoor/outdoor - dome |
| Sensor | CMOS - 1/2.7" - 3840x2160 |
| Field of View | 105° (H), 56° (V), 125° (D) |
| Night Vision | Yes |
| Infrared LEDs | 3 |
| Infrared Distance | 98 ft |
| Focal Length | 2.8 mm |
| Voltage | DC 12 V |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Compliant Standards | IP67, IK10 |
| Cameras Included | 4 - indoor/outdoor - dome |
