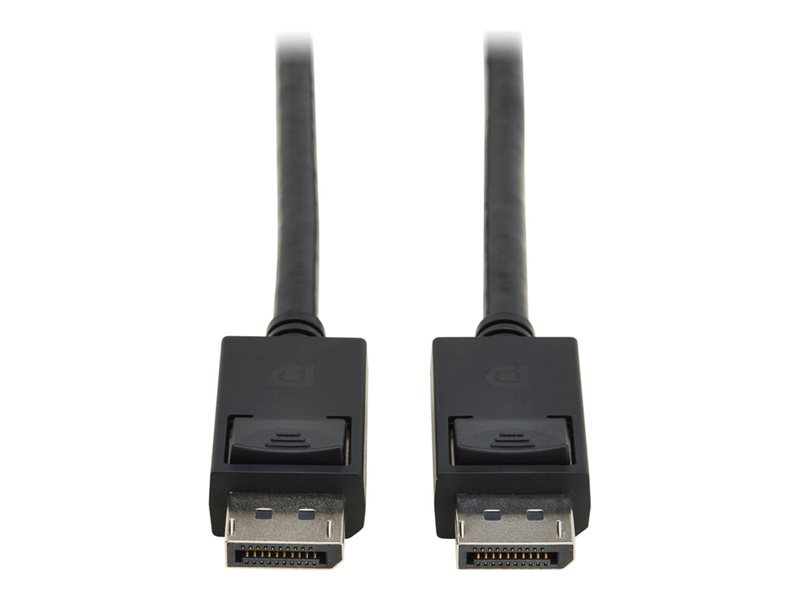

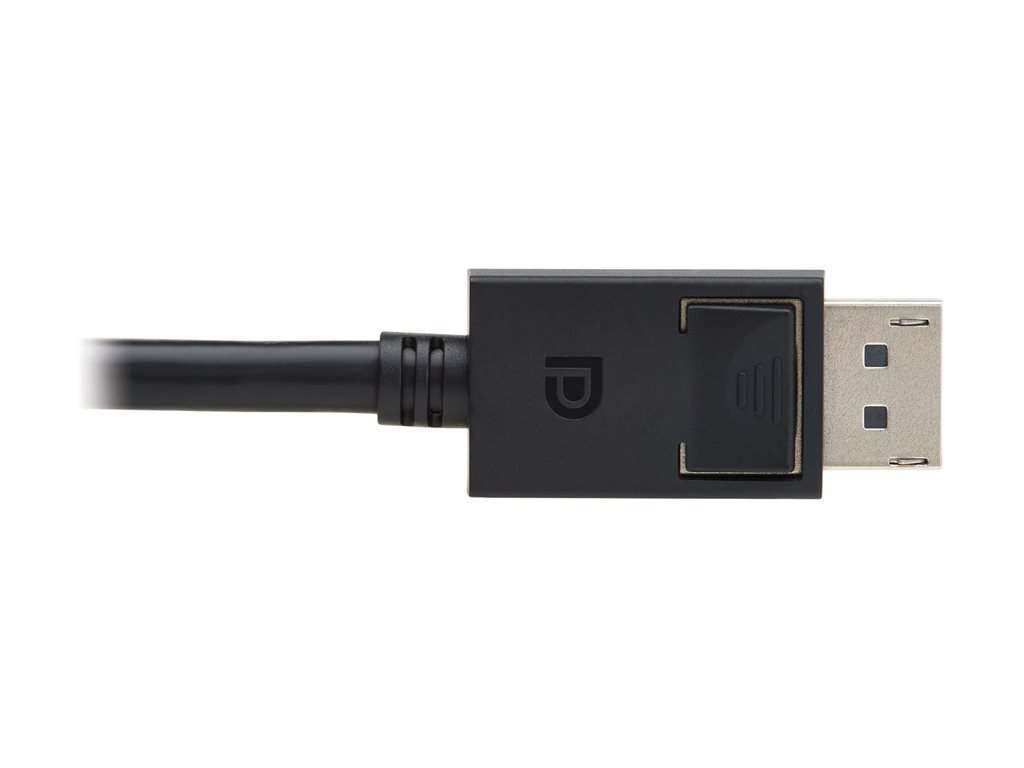

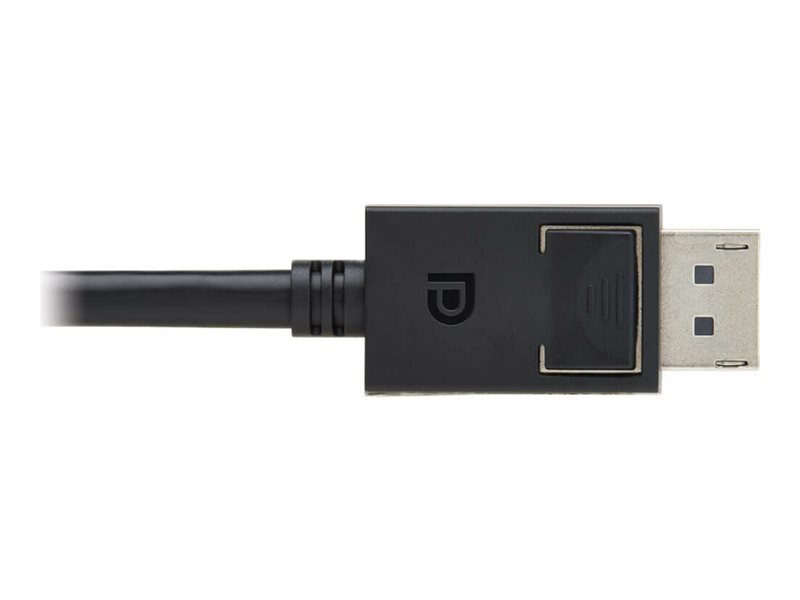

DisplayPort cable - DisplayPort (M) to DisplayPort (M) - DisplayPort 2.1 - 6 ft - 8K60Hz (7680 x 4320) support - black - for P/N: B127A-111-BDTD, B156-002-8K, B156-003-8K, B156E-002-8K-K, B156E-003-8K-K
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series DisplayPort 2.1 Cable with Latching Connectors (M/M), 8K 60 Hz, 40 Gbps, HDR, HBR3, MST, 4:4:4, HDCP 2.2, Black, 6 ft. (1.8 m) - DisplayPort cable - DisplayPort to DisplayPort - 6 ft |
| Type | DisplayPort cable |
| Features | 8K60Hz (7680 x 4320) support, HDR support, HBR3 support, HDCP compliant, MST support, 40 Gbps data rate |
| Length | 6 ft |
| Connector | 20 pin DisplayPort - male |
| Connector (Second End) | 20 pin DisplayPort - male |
| Compliant Standards | DisplayPort 2.1 |
| Color | Black |
| Package Type | Polybag |
| Manufacturer Warranty | Limited lifetime warranty |
| Designed For | P/N: B127A-111-BDTD, B127A-1A1-BDBD, B156-002-8K, B156-003-8K, B156-003-V2, B156E-002-8K-K, B156E-003-8K-K, B300-9X2-4K |
| General | |
| Type | DisplayPort cable |
| Jacket Material | PVC |
| American Wire Gauge (AWG) | 30 |
| Plated Connector | Gold |
| Features | 8K60Hz (7680 x 4320) support, HDR support, HBR3 support, HDCP compliant, MST support, 40 Gbps data rate |
| Length | 6 ft |
| Outside Diameter | 0.26 in |
| Color | Black |
| Miscellaneous | |
| Compliant Standards | DisplayPort 2.1, VW-1, RoHS, REACH, UKCA, WEEE, HDCP 2.2 |
| Package Details | Polybag |
| Connectivity | |
| Connector | 20 pin DisplayPort - male |
| Connector (Second End) | 20 pin DisplayPort - male |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7 in |
| Shipping Depth | 0.5 in |
| Shipping Height | 10 in |
| Shipping Weight | 3.53 oz |
| Service & Support | Limited lifetime warranty |
| Compatibility Information | |
| Designed For | P/N: B127A-111-BDTD, B127A-1A1-BDBD, B156-002-8K, B156-003-8K, B156-003-V2, B156E-002-8K-K, B156E-003-8K-K, B300-9X2-4K |
