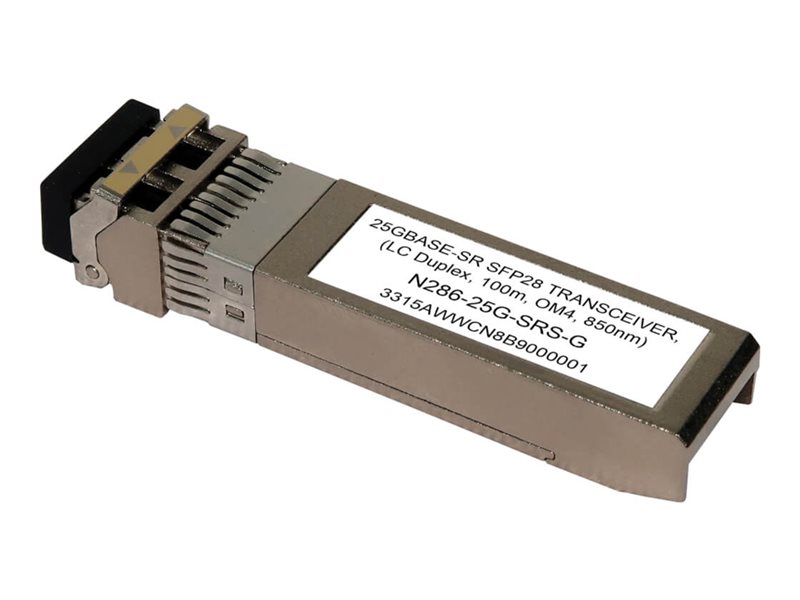

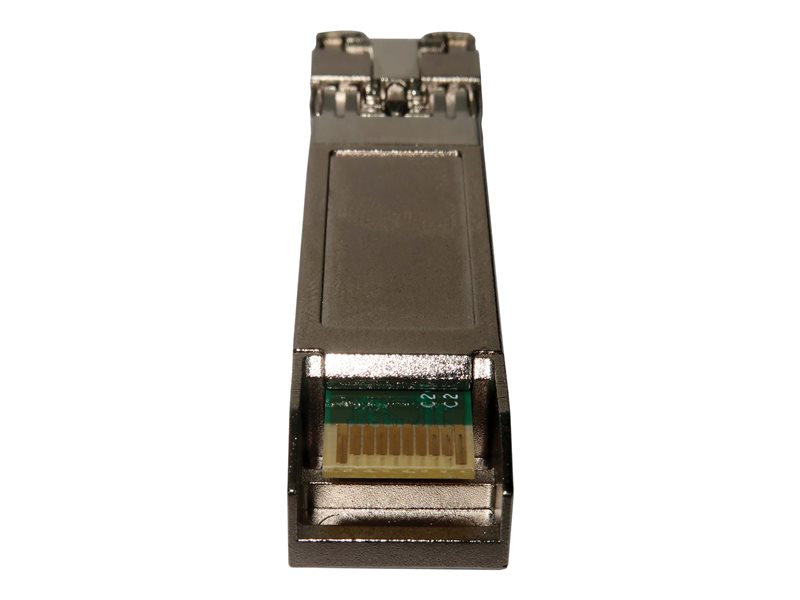

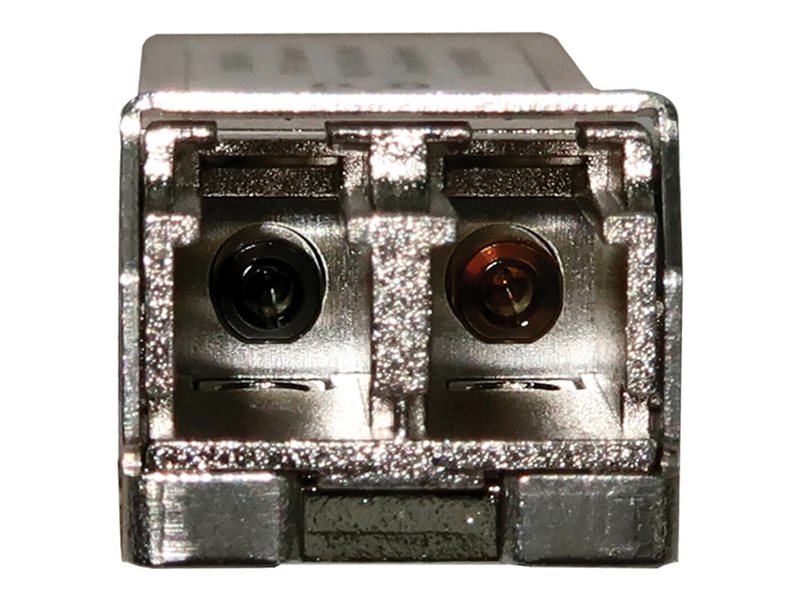

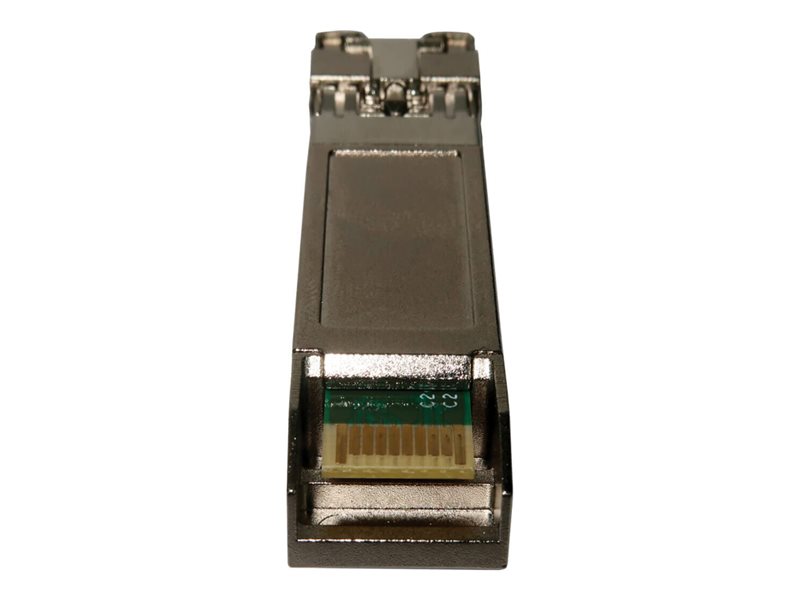

25GBase-SR, LC Duplex MMF, 25 Gbps, 850 nm, 100 m (328 ft.) - SFP28 transceiver module - 25GbE - 25GBase-SR - LC multi-mode - up to 328 ft - 840-860 nm
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series SFP28 Transceiver - 25GBase-SR, LC Duplex MMF, 25 Gbps, 850 nm, 100 m (328 ft.) - SFP28 transceiver module - 25GbE |
| Device Type | SFP28 transceiver module - LC multi-mode |
| Form Factor | Plug-in module |
| Cabling Type | 25GBase-SR |
| Data Transfer Rate | 25 Gbps |
| Optical Wave Length | 840-860 nm |
| Data Link Protocol | 25GbE |
| Max Transfer Distance | 328 ft |
| Weight | 1.76 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | SFP28 transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 25GBase-SR - LC multi-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | OM4, MSA, EN 55032, FCC Part 15 Class B, IEC/EN 63000, RoHS, UKCA |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 25GBase-SR |
| Data Link Protocol | 25GbE |
| Data Transfer Rate | 25 Gbps |
| Optical Wave Length | 840-860 nm |
| Max Transfer Distance | 328 ft |
| Features | Hot swappable, Digital Diagnostics Monitoring (DDM), zinc housing, EMI/RFI protection, Cisco compatible |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 85% RH (non-condensing) |
| Dimensions & Weight | |
| Weight | 1.76 oz |
