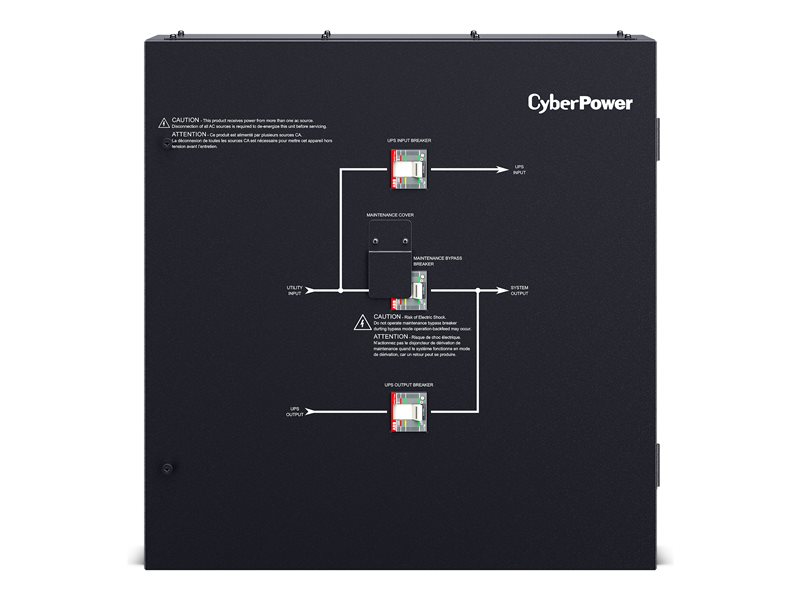

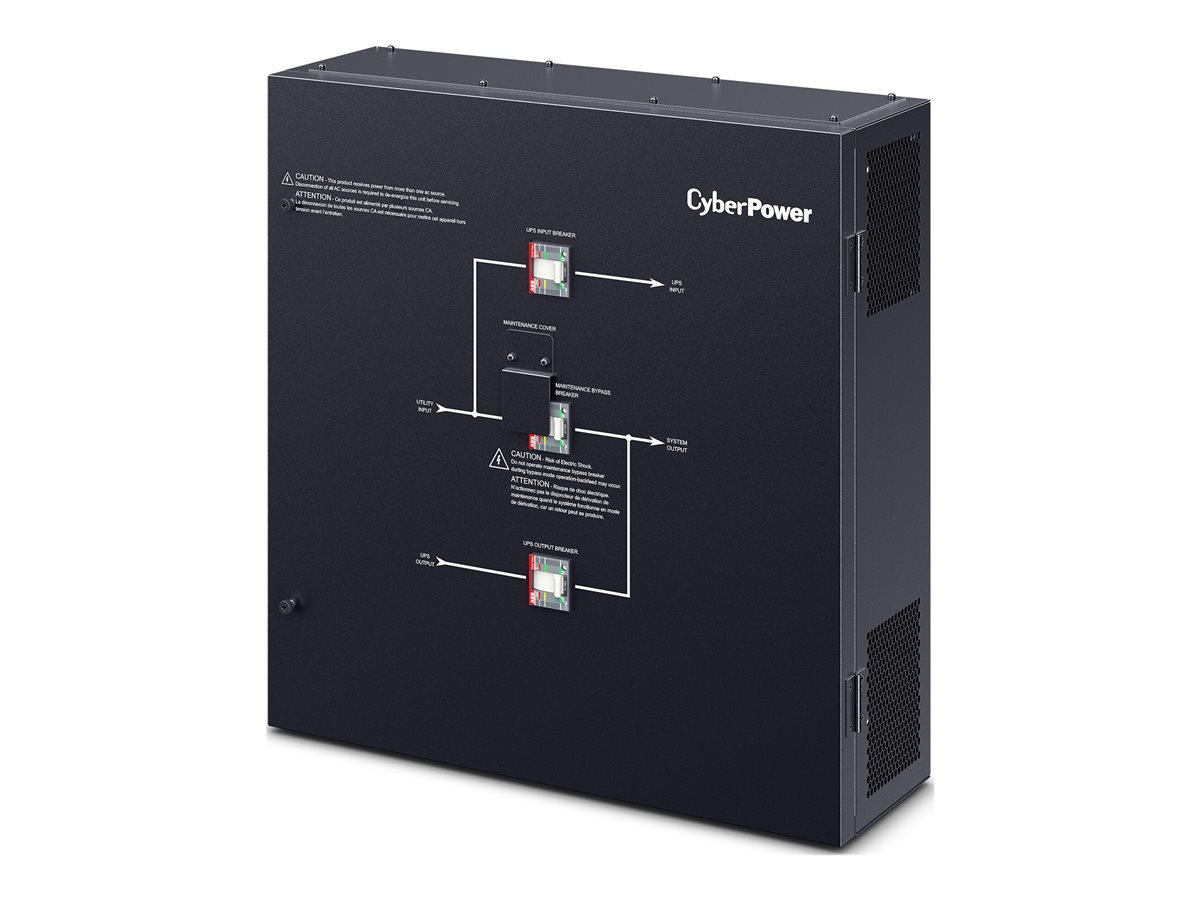

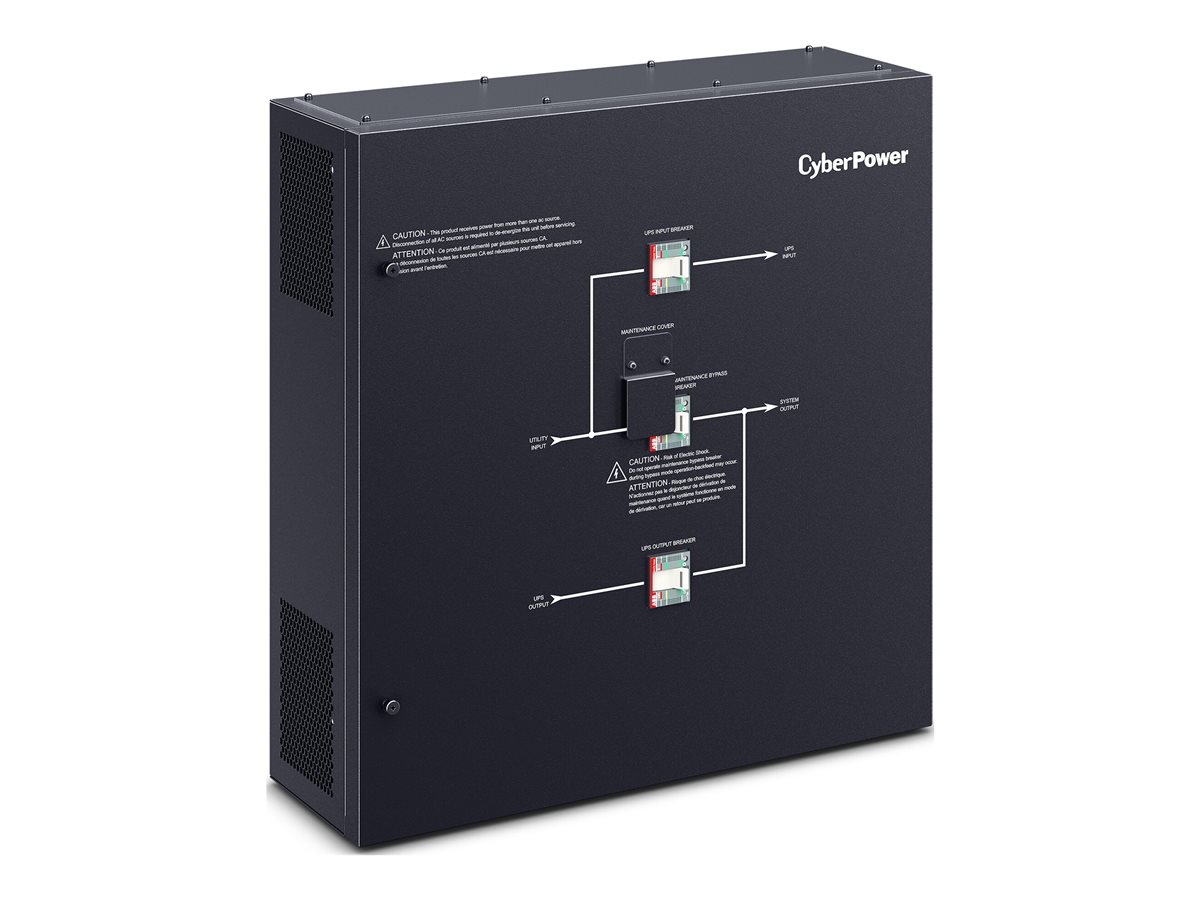

Bypass switch (rack-mountable / external) - maintenance - AC 120-208 V - 3-phase - black
| Main Specifications | |
|---|---|
| Product Description | CyberPower MBS100D5B - bypass switch - maintenance |
| Device Type | Bypass switch - rack-mountable / external |
| Weight | 49.6 lbs |
| Input Wiring | 3-phase |
| Input Voltage | AC 120-208 V |
| Included Accessories | Mounting hardware |
| Color | Black |
| Dimensions (WxDxH) | 23.6 in x 7.6 in x 24.4 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Bypass switch - rack-mountable / external |
| Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Included Accessories | Mounting hardware |
| Features | Metal housing, wall mountable, 3 poles |
| Compliant Standards | RoHS, UL 1778, CSA C22.2 No. 107.3.14, NFPA 70, CSA C22.1, IP20 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | AC 120-208 V |
| Input Wiring | 3-phase |
| Frequency Required | 50/60 Hz |
| Max Electric Current | 100 A |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 23.6 in |
| Depth | 7.6 in |
| Height | 24.4 in |
| Weight | 49.6 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 29.4 in |
| Shipping Depth | 27 in |
| Shipping Height | 11.5 in |
| Shipping Weight | 54.19 lbs |
