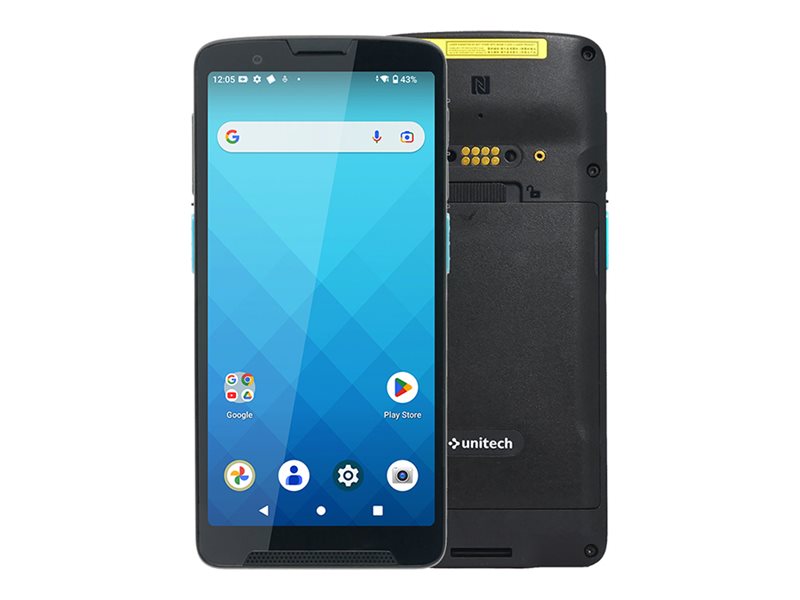

3rd Gen - data collection terminal - rugged - Android 13 - 128 GB UFS card - 6" color (2160 x 1080) - rear camera - barcode reader - (2D imager) - microSD slot - NFC, Bluetooth, Wi-Fi 6E - 5G, 3G, 4G - LTE
| Main Specifications | |
|---|---|
| Product Description | Unitech EA660 - 3rd Gen - data collection terminal - Android 13 - 128 GB - 6" - 5G, 3G, 4G |
| Product Type | Data collection terminal - rugged |
| Operating System | Android 13 |
| Display | 6" color LED backlight - 2160 x 1080 - Multi-Touch |
| Processor | Qualcomm Snapdragon 4490 (8-core) |
| Processor Clock Speed | 2.4 GHz |
| Storage | 128 GB UFS card |
| RAM | 6 GB |
| Supported Flash Memory Cards | microSD |
| Cellular Technology | 5G, 3G, 4G |
| Cellular Protocols | 5G NR, LTE |
| Wireless Connectivity | NFC, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Rear Camera | 16 Megapixel focus: automatic |
| Front Camera | 5 Megapixel |
| Navigation System | A-GPS/GPS/GLONASS/Galileo/Beidou/QZSS |
| Barcode Reader | Yes (2D imager) |
| Barcodes | Aztec, Codabar, Code 11, Code 128, Code 39, Code 93, Data Matrix, GS1 DataBar, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, Matrix 2 of 5, MaxiCode, Micro QR code, MicroPDF417, MSI, PDF417, QR code |
| RFID Specification | 13.56 MHz, ISO 14443A, ISO 14443B, ISO 15693, Mifare, Felica |
| Dimensions (WxDxH) | 3 in x 0.6 in x 6.4 in |
| Weight | 9.52 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Product Type | Data collection terminal - rugged |
| Operating System | Android 13 |
| Memory | |
| Storage | 128 GB UFS card |
| RAM | 6 GB |
| Supported Flash Memory Cards | microSD |
| Max Supported Capacity | 1 TB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Sensors | Gyroscope, G-sensor, eCompass, proximity sensor, ambient light sensor |
| Features | 2x2 MIMO technology, vibration, LED indicator, noise reduction, Drop Protection, shock vibration proof, warm swap |
| Vibrating Alert | Yes |
| Included Accessories | Power adapter, hand strap |
| Cables Included | USB-C cable |
| Compliant Standards | GMS, AER, IP65, IP68, UKCA, FCC, IC, NCC, VCCI, TELEC, CCC, SRRC, RoHS, BQB, N-Mark, NOM |
| Processor | |
| Processor | Qualcomm Snapdragon 4490 |
| Processor Clock Speed | 2.4 GHz |
| Number of Cores | 8-core |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Software | |
| Preloaded Software | SOTI, Mobolink |
| Input Device | |
| Type | Touchscreen |
| Keys Qty | 5 |
| Battery | |
| Capacity | 5000 mAh |
| Display | |
| Type | 6" color - LED backlight |
| Resolution | 2160 x 1080 |
| Touchscreen | Multi-Touch |
| Image Aspect Ratio | 18:9 |
| Image Brightness | 630 cd/m² |
| Features | Sunlight readable, Corning Gorilla glass 7, capacitive touch screen, wet touch mode, glove touch mode |
| Communications | |
| Cellular Technology | 5G, 3G, 4G |
| Cellular Protocols | 5G NR, LTE |
| Wireless Connectivity | NFC, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Dimensions & Weight | |
| Width | 3 in |
| Depth | 0.6 in |
| Height | 6.4 in |
| Weight | 9.52 oz |
| Barcodes | |
| Barcode Reader | Yes |
| Scan Element Type | 2D imager |
| Barcodes | Aztec, Codabar, Code 11, Code 128, Code 39, Code 93, Data Matrix, GS1 DataBar, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, Matrix 2 of 5, MaxiCode, Micro QR code, MicroPDF417, MSI, PDF417, QR code |
| RFID | |
| Frequency | 13.56 MHz |
| RFID Specification | ISO 14443A, ISO 14443B, ISO 15693, Mifare, Felica |
| Multimedia | |
| Audio | 2 microphones, speaker |
| Expansion and Connectivity | |
| Interfaces | 1 x USB-C 3.1 ¦ 2 x POGO pin |
| Navigation System | |
| Receiver | A-GPS/GPS/GLONASS/Galileo/Beidou/QZSS |
| Front Camera | |
| Sensor Resolution | 5 Megapixel |
| Rear Camera | |
| Sensor Resolution | 16 Megapixel |
| Focus Adjustment | Automatic |
| Light Source | Flash |
