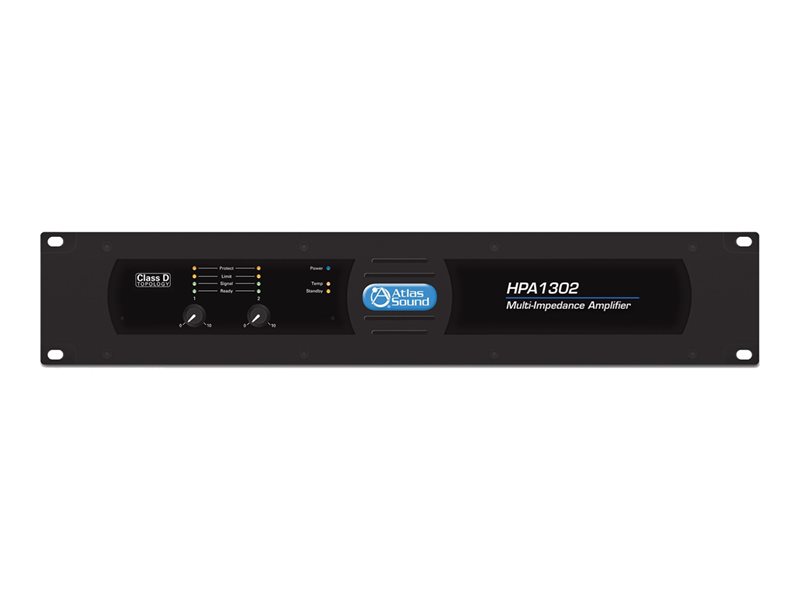

Power amplifier - 2 x 650 Watt - black
| Main Specifications | |
|---|---|
| Product Description | AtlasIED HPA Series HPA1302 - power amplifier |
| Product Type | Power amplifier |
| Enclosure Color | Black |
| Audio Specifications | Amplifier - 20 - 20000 Hz - 70 dB 0.15% |
| Output Power | 1300 Watt |
| Power | AC 100-240 V |
| Environmental Standards | ENERGY STAR Qualified |
| Dimensions (WxDxH) | 19 in x 10.3 in x 3.5 in |
| Weight | 15.43 lbs |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Product Type | Power amplifier |
| Enclosure Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Power | |
| Voltage Required | AC 100-240 V |
| Power Consumption Stand by | 1 Watt |
| Connections | |
| Connectors | 2 x balanced audio input (Euroblock terminal) - rear ¦ 2 x amplifier output (Euroblock terminal) - rear ¦ GPIO (5-pin Euroblock) |
| Dimensions & Weight | |
| Width | 19 in |
| Depth | 10.3 in |
| Height | 3.5 in |
| Weight | 15.43 lbs |
| Audio System | |
| Functions | Amplifier |
| Amplifier Class | D |
| Audio Specifications | Amplifier - Response Bandwidth - 20 - 20000 Hz - SNR - 70 dB - THD - 0.15% |
| Input Channel Qty | 2 channels |
| Output Channel Qty | 2 channels |
| Output Power (per channel) | 650 Watt |
| Output Power / Total | 1300 Watt |
| Amplifier Output Details | 650 Watt - 8 Ohm - 2 channels ¦ 650 Watt - 4 Ohm - 2 channels ¦ 650 Watt - 2 channels (70V) ¦ 650 Watt - 2 channels (100V) |
| Features | 70V/100V or 4/8 Ohm operation, fault reporting, rack mountable, cooling fan, short circuit protection, over current protection, peak current limiters, overheat protection |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 22 in |
| Depth (Shipping) | 16.5 in |
| Height (Shipping) | 6.7 in |
| Weight (Shipping) | 18.52 lbs |
| Slots | |
| Expansion Slots | Access Card |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
