Label printer - thermal line - Roll (2.3 in) - up to 236.2 inch/min - USB 2.0, RS232C - tear bar
| Main Specifications | |
|---|---|

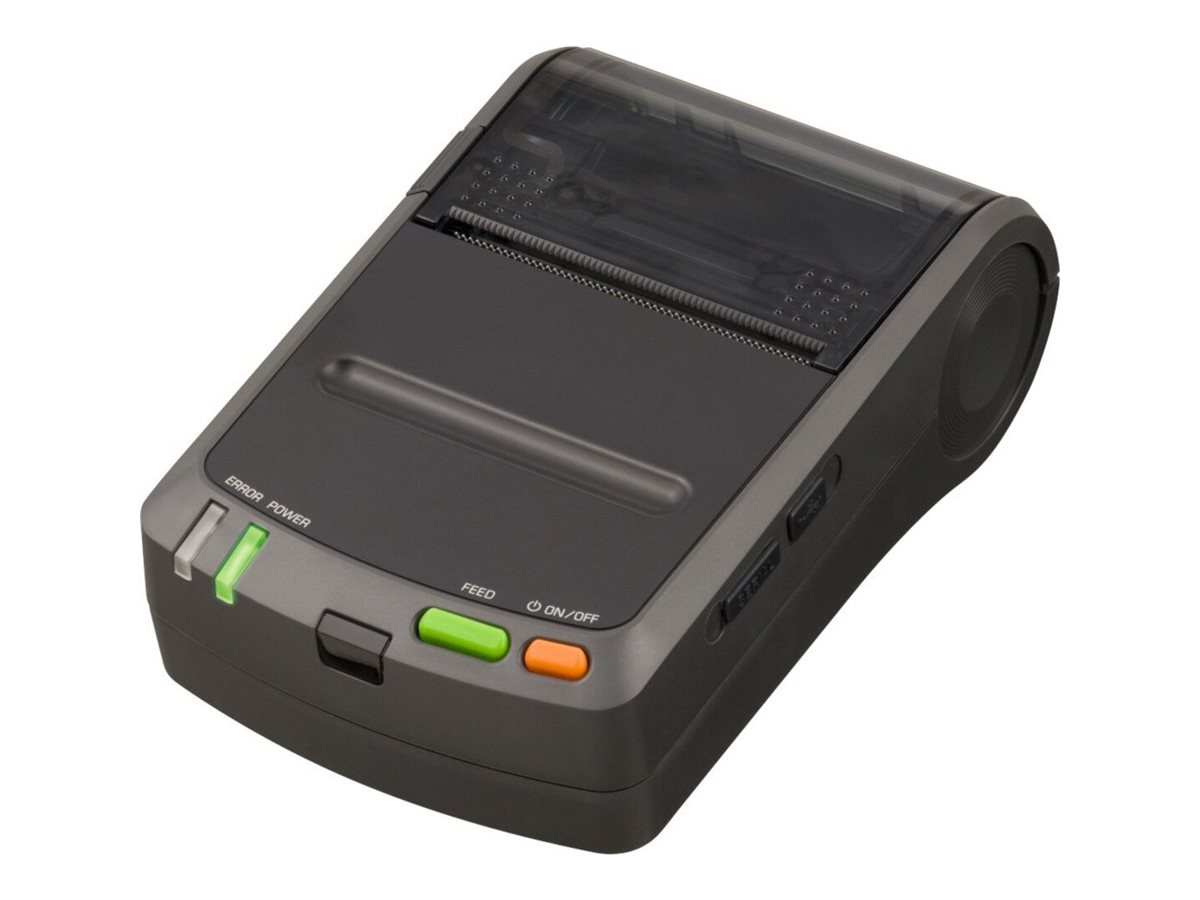

| Product Description | Seiko Instruments DPU S245 - label printer - B/W - thermal line |
| Printer Type | Label printer - thermal line - B/W |
| Form Factor | Portable |
| Weight | 9.88 oz |
| Max Media Size | Roll (2.3 in) |
| Max Media Size (Custom) | 2.25 in |
| Interface | USB 2.0, RS232C |
| Language Simulation | EPSON ESC/P |
| Barcodes | Code 39, QR code, MaxiCode, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Codabar, Code 128, PDF417, Data Matrix, ITF |
| Media Type | Thermal receipt paper, continuous labels |
| Features | Tear bar |
| Battery | Required 1 lithium ion Included Qty 1 |
| System Requirements | Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits) |
| Dimensions (WxDxH) | 3.3 in x 5.1 in x 1.8 in |
| General | |
| Printer Type | Label printer - thermal line - monochrome |
| Expansion / Connectivity | |
| Connections | 1 x USB 2.0 ¦ 1 x RS-232C |
| Miscellaneous | |
| Compliant Standards | VCCI, FCC, CCC |
| Printer | |
| Built-in Devices | Tear bar |
| Connectivity Technology | Wired |
| Interface | USB 2.0, RS232C |
| Language Simulation | EPSON ESC/P |
| Character Sizes (mm) | 0.039 in x 0.078 in, 0.059 in x 0.118 in, 0.079 in x 0.079 in, 0.118 in x 0.118 in |
| Columns | 32, 24, 16, 12 |
| Features | Tear bar |
| Barcodes | Code 39, QR code, MaxiCode, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Codabar, Code 128, PDF417, Data Matrix, ITF |
| Media Handling | |
| Media Type | Thermal receipt paper, continuous labels |
| Max Media Size | Roll (2.3 in) |
| Max Media Size (Custom) | 2.25 in |
| Media Sizes | Roll (2.3 in) |
| Max Printing Width | 1.89 in |
| Roll Maximum Outer Diameter | 1.5 in |
| Media Feeders | Input tray: 1 x manual - 1 roll - Roll (2.3 in) |
| Power | |
| Power Device | Power adapter - external |
| Software / System Requirements | |
| OS Required | Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits) |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 30 - 80% (non-condensing) |
| Battery | |
| Type | Lithium ion |
| Required Qty | 1 |
| Included | 1 |
| Dimensions & Weight | |
| Width | 3.3 in |
| Depth | 5.1 in |
| Height | 1.8 in |
| Weight | 9.88 oz |
