Power adapter - AC 100-240 V - 90 Watt - black
| Main Specifications | |
|---|---|
| Product Description | j5create JUP2290C - power adapter - 90 Watt |
| Device Type | Power adapter - external |
| Weight | 10.26 oz |
| Input Voltage | AC 100-240 V |
| Output Voltage | 19.5 V |
| Power Capacity | 90 Watt |
| Input Connectors | 1 x power USA 2-pole |

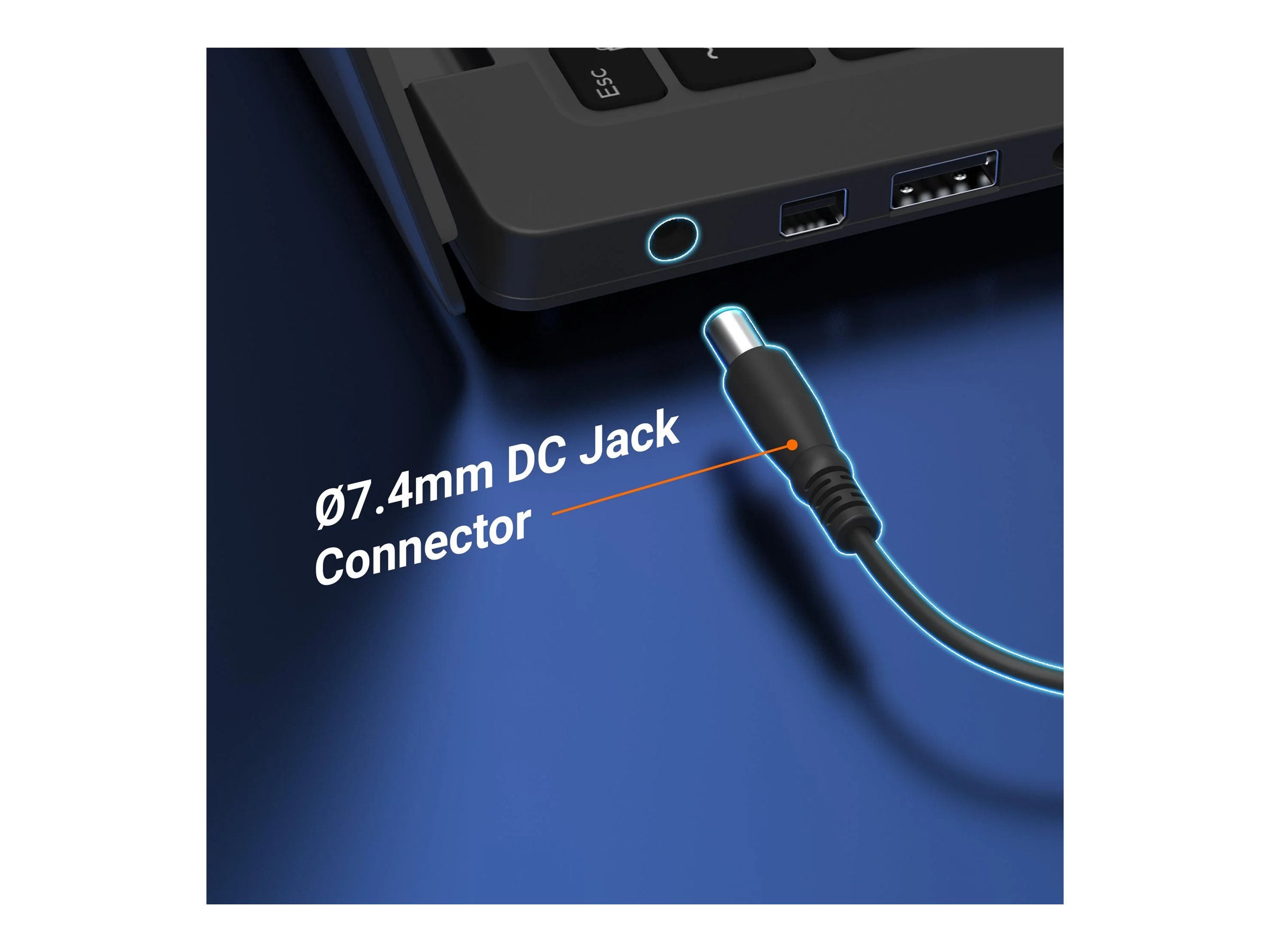

| Output connectors | 1 x power DC jack 7.4 mm (ID: 5 mm) - 19.5 V 4.62 A |
| Color | Black |
| Dimensions (WxDxH) | 2 in x 5 in x 1.3 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power adapter - external |
| Color | Black |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 4 ft |
| Features | Plastic enclosure, overheat protection, overcharge protection, overcurrent protection |
| Compliant Standards | FCC Part 15 Subpart B, ANSI C63.4-2014, CISPR PUB. 22, ANSI C63.4a-2017, ETL, CSA C22.2#62368-1:2019 Ed.3, UL 62368-1:2019 Ed.3, EN 62368-1:2014+A11:2017, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-2:2019, EN 61000-3-3:2013/A1:2019, UKCA, BS EN 62368-1:2014+A11, BS EN 55032:2015+A11, BS EN 55035:2017+A11, EN IEC 61000-3-2:2019, BS EN 61000-3-3:2013+A1, LVD, PSE Mark, BSMI, CNS 13438, CNS14336-1, ST-COA, IEC 62368-1:2014 2nd Ed, PSB, IEC 62368-1: 2014, RCM, SAA-203030-EA, EN 55032:2015, IEC62368-1:2014, EN62368-1:2014+A11:2017, J62368-1(2020), J55032 (H29) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 86 °F |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power USA 2-pole |
| Power Output Connectors Details | 1 x power DC jack 7.4 mm (ID: 5 mm) - 19.5 V 4.62 A |
| Output Voltage | 19.5 V |
| Max Electric Current | 2 A |
| Power Capacity | 90 Watt |
| Surge Suppression | Yes |
| Dimensions & Weight | |
| Width | 2 in |
| Depth | 5 in |
| Height | 1.3 in |
| Weight | 10.26 oz |
