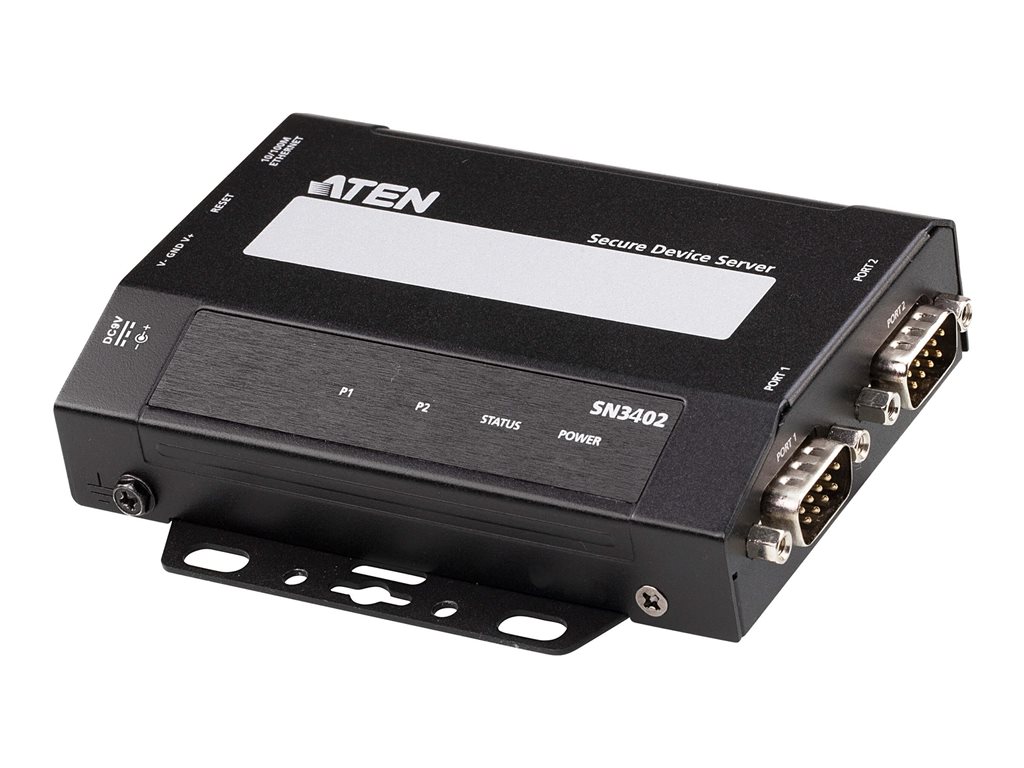

Device server - 2 ports - RS-232, RS-422, RS-485, 100Mb LAN - desktop / wall / DIN rail mountable
| Main Specifications | |
|---|---|
| Product Description | ATEN SN3402 - device server |
| Device Type | Device server |
| Form Factor | Desktop / wall / DIN rail mountable |
| Ports Qty | 2 |
| Data Link Protocol | RS-232, RS-422, RS-485, Ethernet, Fast Ethernet |
| Capacity | Connections per serial port: up to 16 |
| Included Accessories | Terminal block connector, feet set, DIN-rail mounting kit |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 4.6 in x 3.9 in x 1 in |
| Weight | 7.41 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Device server |
| Width | 4.6 in |
| Depth | 3.9 in |
| Height | 1 in |
| Weight | 7.41 oz |
| Expansion / Connectivity | |
| Interfaces | 2 x serial - DB-9 ¦ 1 x 100Base-TX - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Terminal block connector, feet set, DIN-rail mounting kit |
| Compliant Standards | EN 55032, EN 55035, CISPR 32, FCC Part 15 B Class A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, UL 60950-1, UL 62368-1, RoHS |
| Networking | |
| Form Factor | Desktop / wall / DIN rail mountable |
| Ports Qty | 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, RS-422, RS-485, Ethernet, Fast Ethernet |
| Network / Transport Protocol | TCP, UDP |
| Remote Management Protocol | Modbus TCP, Modbus RTU, SSH, Telnet, SNMP 1, SNMP 2c |
| Capacity | Connections per serial port: up to 16 |
| Status Indicators | Power, status, port status, port transmission speed |
| Features | Reset button, flow control, 1.5 KV Magnetic Isolation, metal housing, Secure Real COM, Secure TCP Server / Client, surge protection, IP address filtering, web GUI management portal, SNMP agent, SNMP trap, event notification, firmware upgradable, backup/restore, NTP time synchronization |
| Encryption Algorithm | TLS 1.2, 2048-bit RSA |
| Authentication Method | RADIUS |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
