8x1:3 presentation switcher
| Main Specifications | |
|---|---|

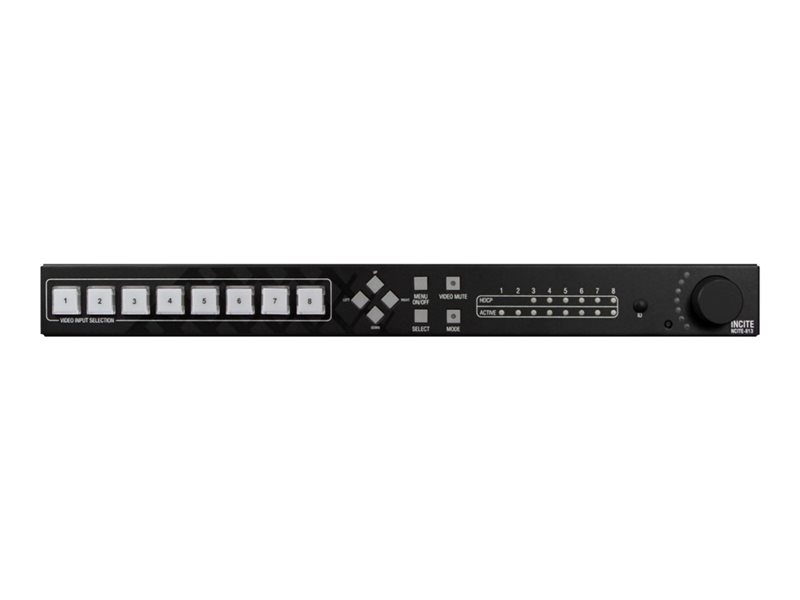

| Product Description | AMX Incite NCITE-813 8x1:3 presentation switcher |
| Type | 8x1:3 presentation switcher |
| Dimensions (WxDxH) | 19 in - 14 in - 1.7 in |
| General | |
| Type | 8x1:3 presentation switcher |
| Width | 19 in |
| Depth | 14 in |
| Height | 1.7 in |
| Power | |
| Voltage Required | AC 120/230 V AC 100-240 V |
| Frequency | 50/60 Hz |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% RH |
| Kit Content | |
| Kit Content | (2) x rack mount brackets ¦ (4) x rubber foot |
| Terminals | |
| Terminals | (4) x HDMI input - 19 pin HDMI Type A ¦ (2) x VGA input - 15 pin HD D-Sub (HD-15) ¦ (2) x DXLite input - RJ-45 ¦ (6) x balanced audio input - terminal block ¦ (2) x audio line-in / microphone - terminal block ¦ (2) x balanced audio output - terminal block ¦ (1) x network - RJ-45 ¦ (1) x IR/serial control - terminal block ¦ (1) x DXLite output - RJ-45 ¦ (2) x HDMI output - 19 pin HDMI Type A ¦ (1) x USB 2.0 |
| Studio & Production Equipment | |
| Features | HDCP 2.2 compliant, 4K60 4:4:4 signal support, scaler function, built-in DSP, 10-band parametric equalizer, gain controls, Advanced Feedback Suppression (AFS), rack-mountable, EDID support |
