Server - rack-mountable 1U - 1-way - no CPU - RAM 0 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - no HDD - AST2600 - Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet - no OS - monitor: none
| Main Specifications | |
|---|---|

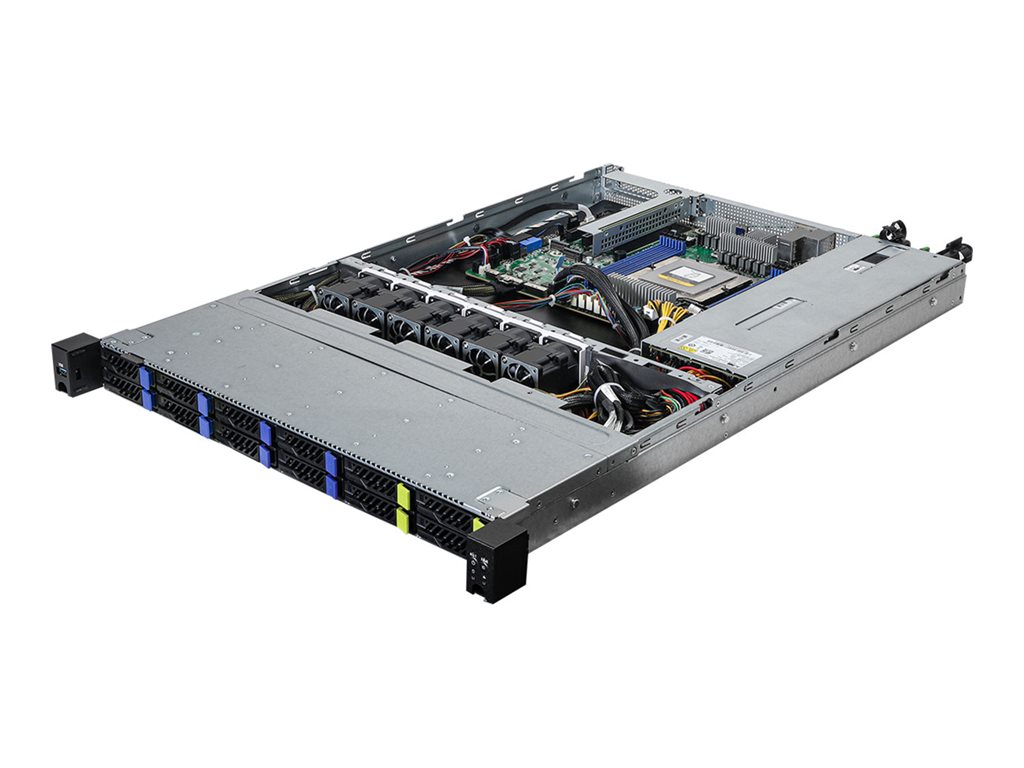

| Product Description | ASRock Rack 1U8S4E-GENOA/2T - rack-mountable no CPU - 0 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Server Scalability | 1-way |
| Processor | No CPU |
| Processor Socket | LGA6096 Socket |
| RAM | 0 GB DDR5 SDRAM |
| Storage Controller | SATA |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2600 |
| Video Memory | 512 MB DDR4 SDRAM |
| Networking | 1GbE, 2.5GbE, 5GbE, 10GbE |
| Power | (50 - 60 Hz) |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 17.2 in x 26.6 in x 1.7 in |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | 6 x hot-swap fans |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 12 |
| Expansion / Connectivity | |
| Bays | 4 (total) / 4 (free) x hot-swap 2.5" ¦ 8 (total) / 8 (free) x hot-swap 3.5" |
| Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height ¦ 2 (total) / 2 (free) x M.2 Card |
| Interfaces | 1 x management - RJ-45 (1 rear) ¦ 2 x LAN (10Gigabit Ethernet) - RJ-45 (2 rear) ¦ 2 x USB 3.2 Gen 1 (2 rear) ¦ 1 x VGA |
| RAM | |
| Installed Size | 0 GB |
| Technology | DDR5 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 8 (total) / 8 (empty) |
| Features | Registered, 3DS registered |
| Networking | |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | Intel X550-AT2, Realtek RTL8211F |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Power Provided | 750 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Storage Controller | |
| Type | 1 x SATA |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2600 |
| Video Memory | 512 MB DDR4 SDRAM |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 26.6 in |
| Height | 1.7 in |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA6096 Socket |
