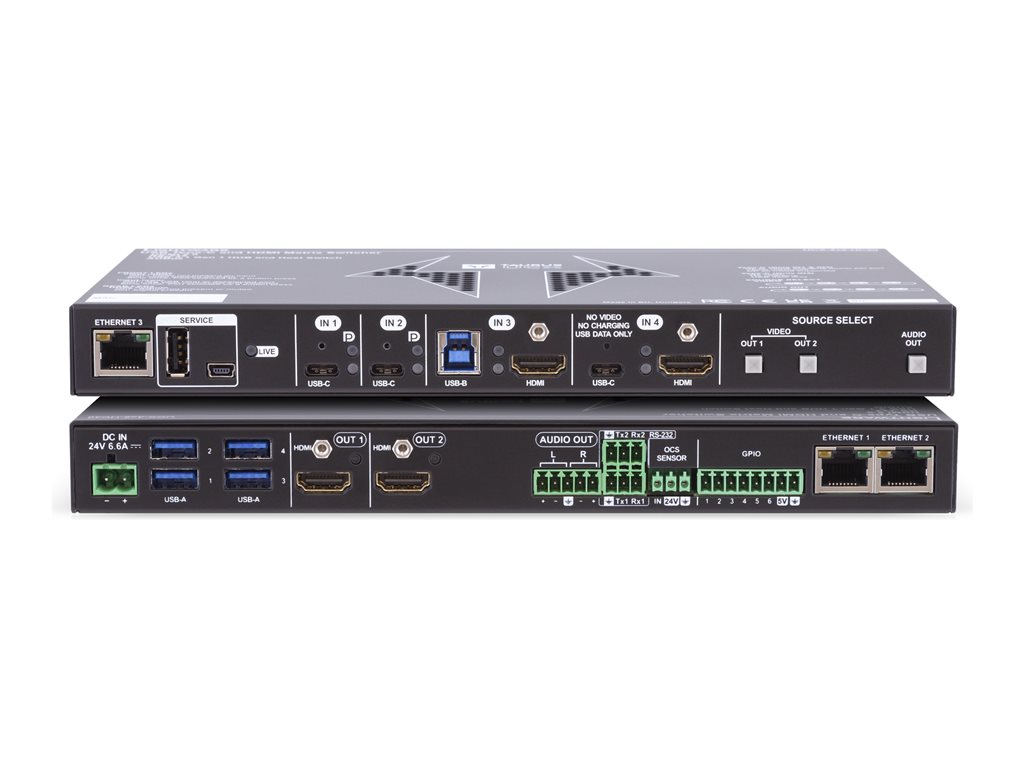

Video/audio/USB switch - 4 x 2 - desktop, rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Lightware UCX-4X2-HC40 - video/audio/USB switch - 4 x 2 - rack-mountable |
| Device Type | Video/audio/USB switch - 4 x 2 |
| Enclosure Type | Rack-mountable 1U |
| Subtype | HDMI / USB |
| Performance | Video bandwidth (HDMI): 18 Gbps |
| Features | Steel housing, passive cooling, 4K60Hz support, 5K30Hz support, DisplayPort Alternate mode, LPCM support, audio embedding/de-embedding, bi-directional RS-232, occupancy sensor triggering, automatic input selection |
| Compliant Standards | HDCP 2.2, USB 3.1 Gen 1 |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 9.7 in x 5.9 in x 1 in |
| Weight | 32.38 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/USB switch - 4 x 2 |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | HDMI / USB |
| Performance | Video bandwidth (HDMI): 18 Gbps |
| Encryption Algorithm | FIPS 140-2 |
| Features | Steel housing, passive cooling, 4K60Hz support, 5K30Hz support, DisplayPort Alternate mode, LPCM support, audio embedding/de-embedding, bi-directional RS-232, occupancy sensor triggering, automatic input selection |
| Compliant Standards | HDCP 2.2, USB 3.1 Gen 1 |
| Status Indicators | Input, live, USB, video |
| Expansion / Connectivity | |
| Interfaces | 2 x HDMI output female ¦ 2 x USB-C input female ¦ 2 x HDMI input female ¦ 1 x USB-C (data only) female ¦ 1 x USB input Type B female ¦ 4 x USB 3.1 Gen 1 Type A female ¦ 3 x 100Base-T RJ-45 female ¦ 1 x USB (service) Type A female ¦ 1 x management (mini-USB) mini-USB female ¦ 1 x audio output 5 pin Phoenix ¦ 2 x serial (RS-232) 3 pin Phoenix ¦ 1 x sensor 3 pin Phoenix ¦ 1 x GPIO 8 pin Phoenix |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | Power cable, power adapter, 2 x M3 screws |
| Cables Included | 1 x USB-C 3.1 cable - 3.3 ft |
| Compliant Standards | UKCA, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 63000:2018, FCC Class A certified, RoHS, FCC CFR47 Part 15 B, IEC 61000-3-3:2013, HDCP 2.2, WEEE |
| Power | |
| Power Device | External power adapter |
| Power Provided | 160 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 9.7 in |
| Depth | 5.9 in |
| Height | 1 in |
| Weight | 32.38 oz |
