Hub - 3 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 - desktop, DIN rail mountable, wall-mountable - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Startech 4-Port Managed USB Hub with 4x USB-A, Heavy Duty with Metal Industrial Housing, ESD & Surge Protection, Wall/Desk/Din-Rail Mountable, USB 3.0/3.1/3.2 Gen 1 5Gbps - hub - 4 ports - TAA Compliant |
| Device Type | Hub - 4 ports |
| Subtype | USB |
| Ports | 3 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 |
| Features | Surge protection, metal housing, 8KV ESD Protector (contact discharge), 15KV ESD Protector (air-gap discharge), managed, fast charging support, CLI management, lockable ports |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0, USB 3.1, USB 3.2 Gen 2, USB 3.2 Gen 1, Battery Charging 1.2 |
| Dimensions (WxDxH) | 4.5 in x 2.6 in x 1 in |
| Color | Black |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Hub - 4 ports |

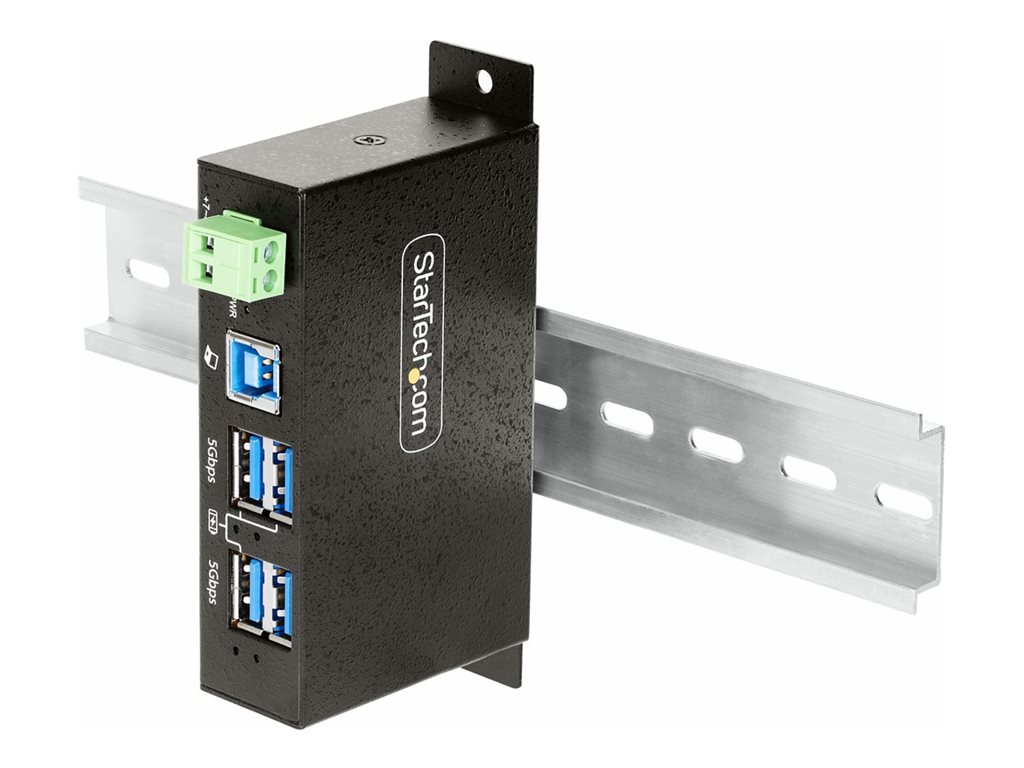

| Enclosure Type | Desktop, DIN rail mountable, wall-mountable |
| Subtype | USB |
| Ports | 3 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 |
| Features | Surge protection, metal housing, 8KV ESD Protector (contact discharge), 15KV ESD Protector (air-gap discharge), managed, fast charging support, CLI management, lockable ports |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0, USB 3.1, USB 3.2 Gen 2, USB 3.2 Gen 1, Battery Charging 1.2 |
| Status Indicators | Port status, power |
| Expansion / Connectivity | |

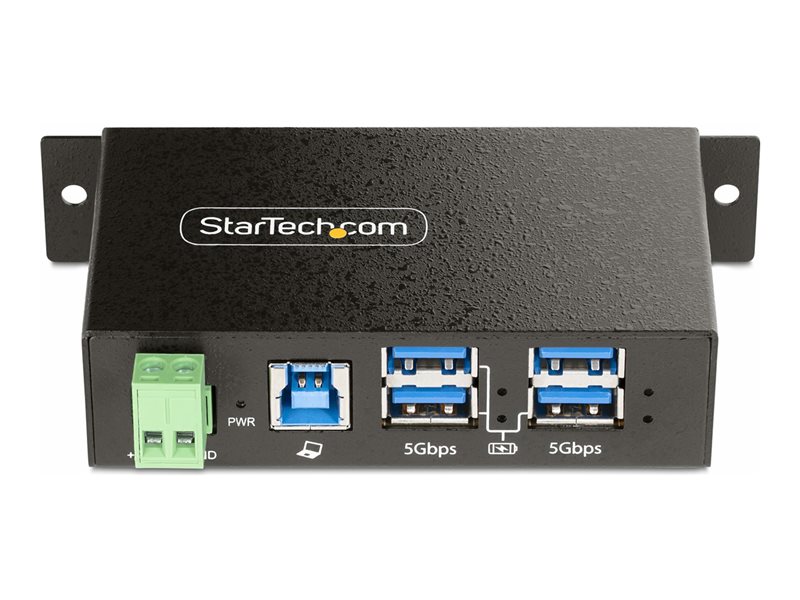

| Interfaces | 3 x USB 3.2 Gen 2 Type A Battery Charging 1.2 ¦ 1 x USB 3.2 Gen 1 Type A ¦ 1 x USB 3.2 Gen 1 Type B host ¦ 1 x terminal block |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Color | Black |

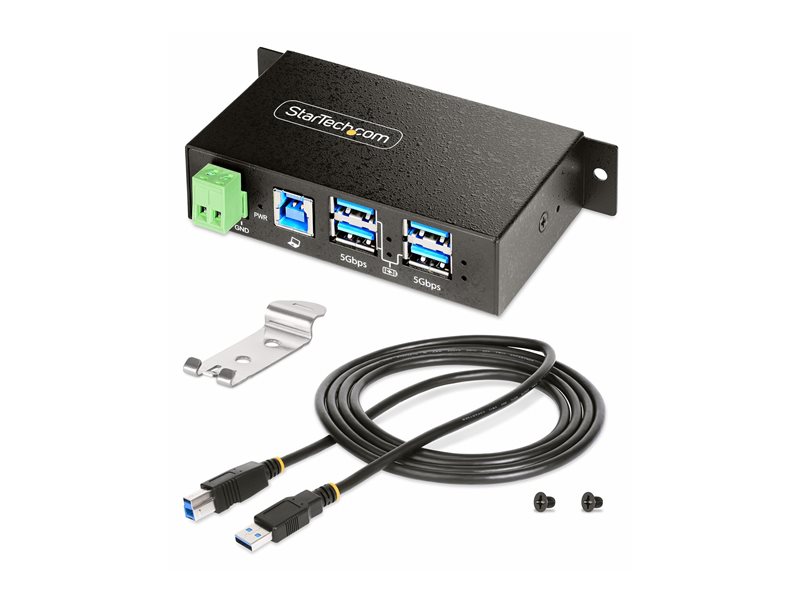

| Included Accessories | DIN-rail mounting kit, terminal block connector |
| Cables Included | 1 x USB-A to USB-B cable - 6 ft |
| MTBF | 131,406 hours |
| Compliant Standards | RoHS, WEEE, UASP (USB Attached SCSI Protocol) |
| TAA Compliant | Yes |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 5 - 95% RH |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 167 °F |
| Dimensions & Weight | |
| Width | 4.5 in |
| Depth | 2.6 in |
| Height | 1 in |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 8.4 in |
| Shipping Depth | 5.9 in |
| Shipping Height | 2 in |
| Shipping Weight | 15.87 oz |
