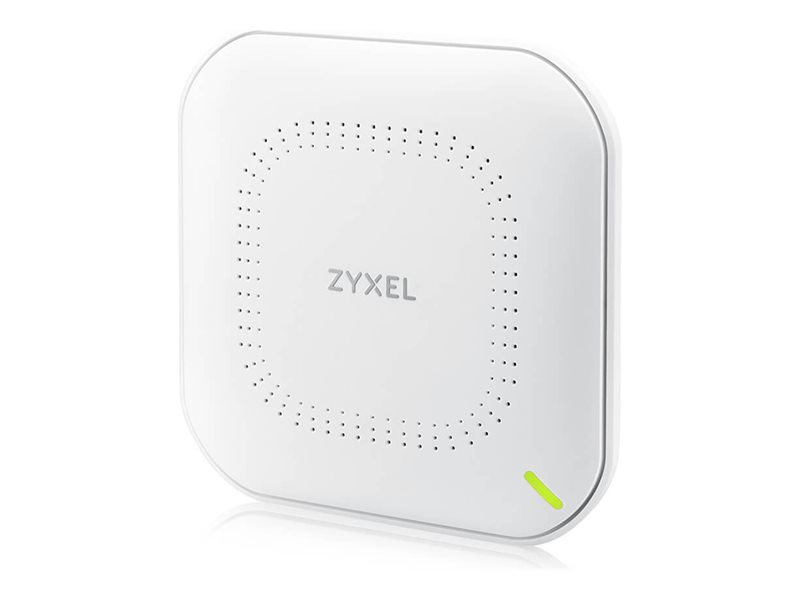

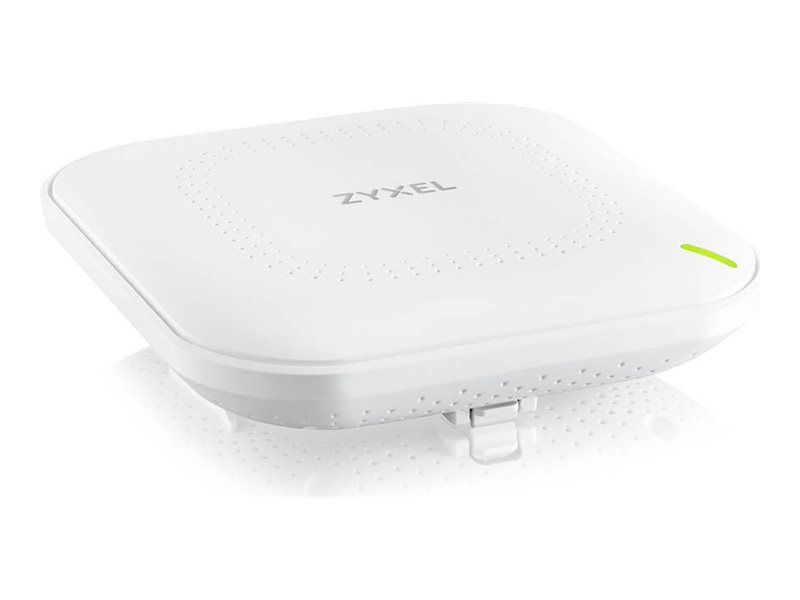

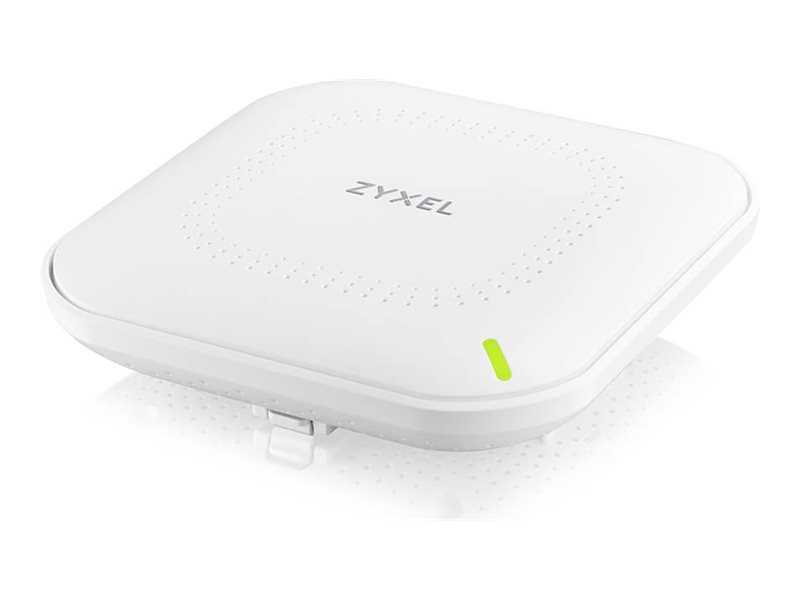

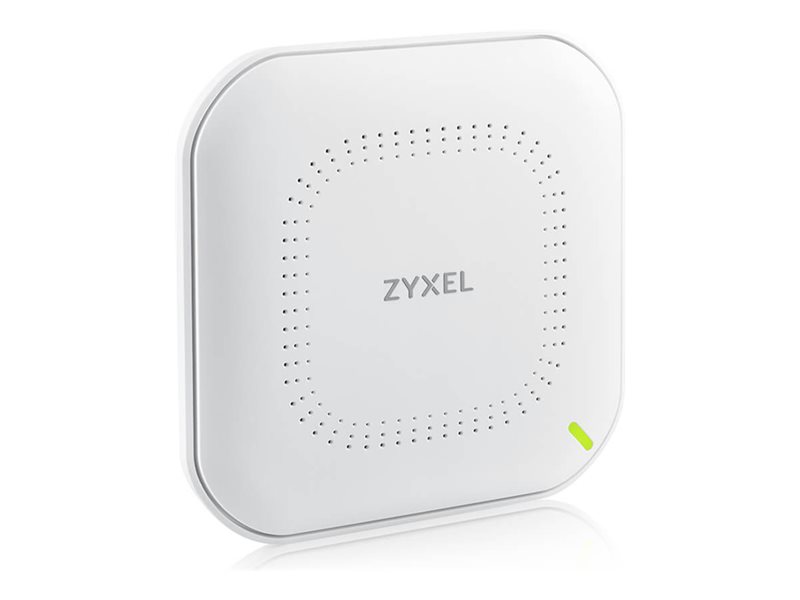

Wireless access point - AX3000, NebulaFlex - Wi-Fi 6 - 2.4 GHz, 5 GHz - cloud-managed
| Main Specifications | |
|---|---|
| Product Description | Zyxel NWA50AX Pro - wireless access point - AX3000, NebulaFlex - Wi-Fi 6 - cloud-managed |
| Device Type | Wireless access point |
| Form Factor | External |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 575 Mbps ¦ Maximum data rate (5 GHz): 2400 Mbps |
| Included Accessories | Mounting plate, mounting screws |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 5.5 in x 5.5 in x 1.5 in |
| Weight | 12.42 oz |
| General | |
| Device Type | Wireless access point |
| Width | 5.5 in |
| Depth | 5.5 in |
| Height | 1.5 in |
| Weight | 12.42 oz |
| Expansion / Connectivity | |

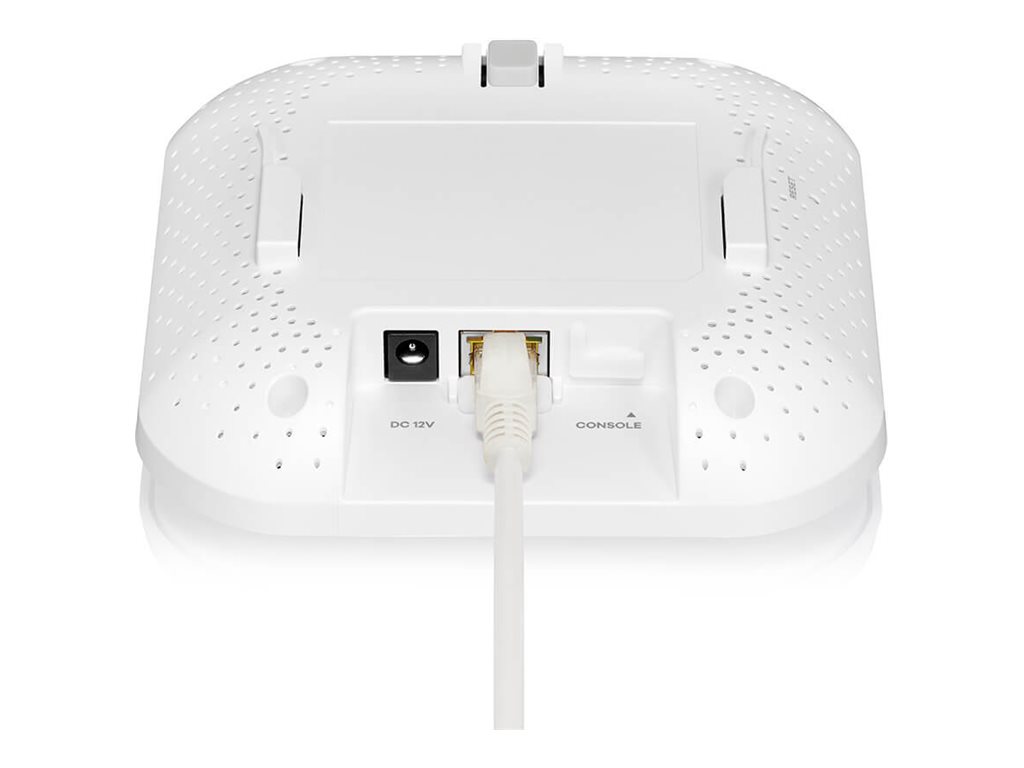

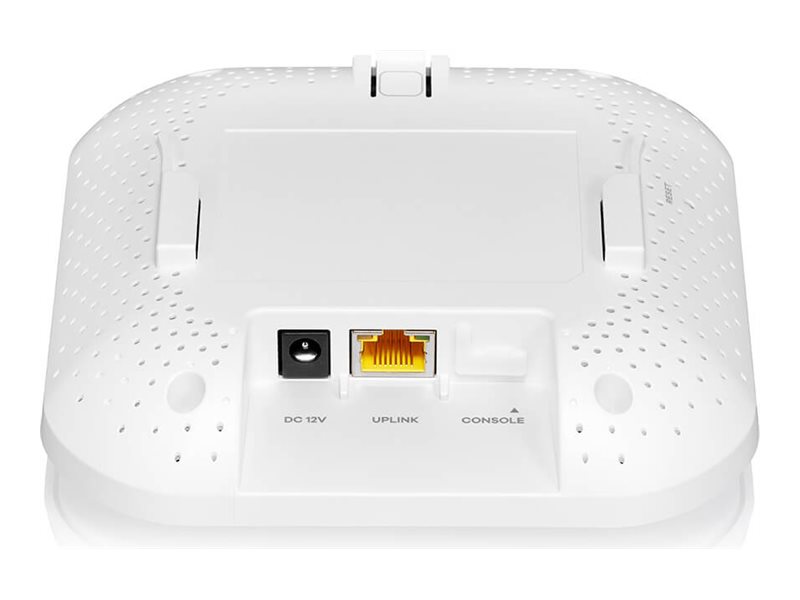

| Interfaces | 1 x 1/2.5GBase-T (PoE+) - RJ-45 |
| Miscellaneous | |
| Included Accessories | Mounting plate, mounting screws |
| MTBF | 420,539 hours |
| Compliant Standards | FCC Part 15 C, FCC Part 15 E, ETSI EN 300 328, EN 301 893, LP0002, EN 60601-1-2, FCC Part 15 B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN 61000-3-2, EN 61000-3-3, BSMI CNS 13438, EN 60950-1, IEC 60950-1, BSMI CNS 14336-1 |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Network / Transport Protocol | IPv6 |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 575 Mbps ¦ Maximum data rate (5 GHz): 2400 Mbps |
| Wi-Fi Rating | AX3000 |
| Features | MU-MIMO technology, band steering, Wireless Distribution System (WDS) support, Mesh networking, Fast Roaming, Pre-Authentication, PMK Caching, Dynamic Channel Selection (DCS), Advanced Cellular Coexistence (ACC), L2-isolation, MAC address filtering, rogue AP detection, VLAN support, Wi-Fi Multimedia (WMM) support, Unscheduled Automatic Power Save Delivery (U-APSD), web-based UI, command-line interface (CLI) management |
| Encryption Algorithm | WPA-Personal, WPA2-Personal, WPA3-Personal |
| Compliant Standards | IEEE 802.11r, IEEE 802.11k, IEEE 802.11v, IEEE 802.3at |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.4 in |
| Shipping Depth | 6.1 in |
| Shipping Height | 2.4 in |
| Shipping Weight | 23.56 oz |
| Antenna | |
| Antenna | Internal |
