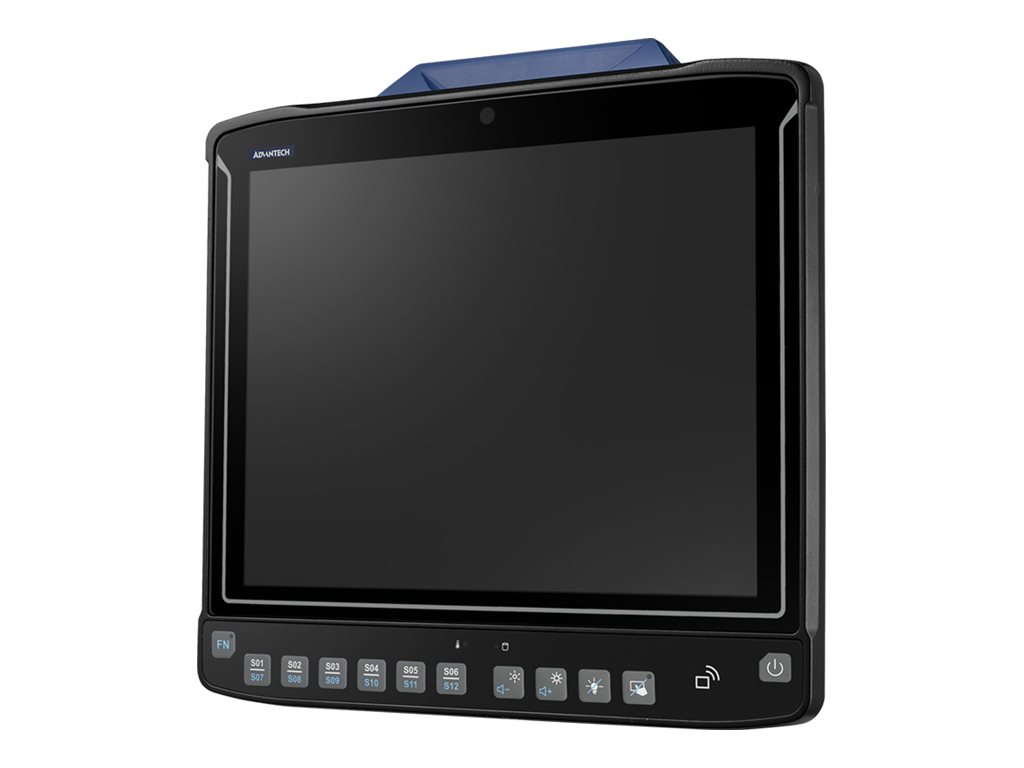

Rugged - vehicle mount computer - no keyboard - Intel Celeron - 6305E - Win 10 IoT Enterprise LTSC - UHD Graphics - 8 GB RAM - 128 GB - 12.1" touchscreen 1024 x 768 - 2.5 Gigabit Ethernet - Wi-Fi 6, Bluetooth, NFC
| Main Specifications | |
|---|---|
| Product Description | Advantech DLT-V73 Series - 12.1" - Intel Celeron - 6305E - 8 GB RAM - 128 GB |
| Product Type | Vehicle mount computer - no keyboard - rugged |
| Operating System | Win 10 IoT Enterprise LTSC |
| Processor | Intel Celeron 6305E / 1.8 GHz / 4 MB Cache |
| Memory | 8 GB LPDDR4X |
| Storage | 128 GB |
| Display | 12.1" touchscreen 1024 x 768 / XGA |
| Graphics | Intel UHD Graphics |
| Input Device | 3 x control buttons |
| Networking | 802.11a/b/g/n/ac/ax, Bluetooth 5.3, NFC, 2.5 Gigabit Ethernet |
| Features | Accelerometer, ambient light sensor, gyroscope |
| Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Dimensions (WxDxH) | 11.7 in x 11.4 in x 2.6 in |
| Weight | 10.58 lbs |
| Localization | Region: United States |
| General | |
| Product Type | Vehicle mount computer - no keyboard - rugged |
| Operating System | Windows 10 IoT Enterprise LTSC |
| Memory | |
| RAM | 8 GB |
| Technology | LPDDR4X SDRAM |
| Miscellaneous | |
| Case Material | Aluminum |
| Integrated Options | Accelerometer, ambient light sensor, gyroscope |
| Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Features | Shock absorbing, vibration-resistant, abrasion-resistant, resistive touch screen, fanless |
| Compliant Standards | ISO/IEC 14443, ISO/IEC 15693, MIFARE, IP66, MIL-STD 810F, IK08, FCC, CE Class A certified, EMI Class B, FCC Class B certified, BIS |
| Localization | Region: United States |
| Storage | |
| Main Storage | 128 GB |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Software | |
| Software Included | Advantech DeviceOn/iService, MDevice, MKeyboard, MWedge, MPair, MBlank, MTouch |
| Display | |
| Type | 12.1" |
| Touchscreen | Yes (multi-touch) |
| Resolution | 1024 x 768 (XGA) |
| Widescreen | No |
| Image Aspect Ratio | 4:3 |
| Image Brightness | 600 cd/m² |
| Features | Projected Capacitive Touch (PCT) technology |
| Communications | |
| Wireless | 802.11a/b/g/n/ac/ax, Bluetooth 5.3, NFC |
| Network Interface | 2.5 Gigabit Ethernet |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 11.7 in x 11.4 in x 2.6 in |
| Weight | 10.58 lbs |
| Processor / Chipset | |
| CPU | Intel Celeron 6305E / 1.8 GHz |
| Number of Cores | Dual-Core |
| Cache | 4 MB |
| Features | Intel Smart Cache, 2 Threads |
| Audio & Video | |
| Graphics Processor | Intel UHD Graphics |
| Sound | Stereo speakers |
| Input | |
| Type | 3 x control buttons |
| AC Adapter | |
| Input | DC 12 V / DC 24 V / DC 48 V |
| Connections & Expansion | |
| Interfaces Details | Serial (RS-232) ¦ 2 x USB 3.2 Gen 1 (USB-A) ¦ USB-C 3.2 Gen 2 ¦ USB-C 3.2 Gen 2 (service) ¦ RSMA ¦ 2 x SMA ¦ CAN bus |
