Video/audio/USB switch - 4 x 3 - desktop, rack-mountable
| Main Specifications | |
|---|---|

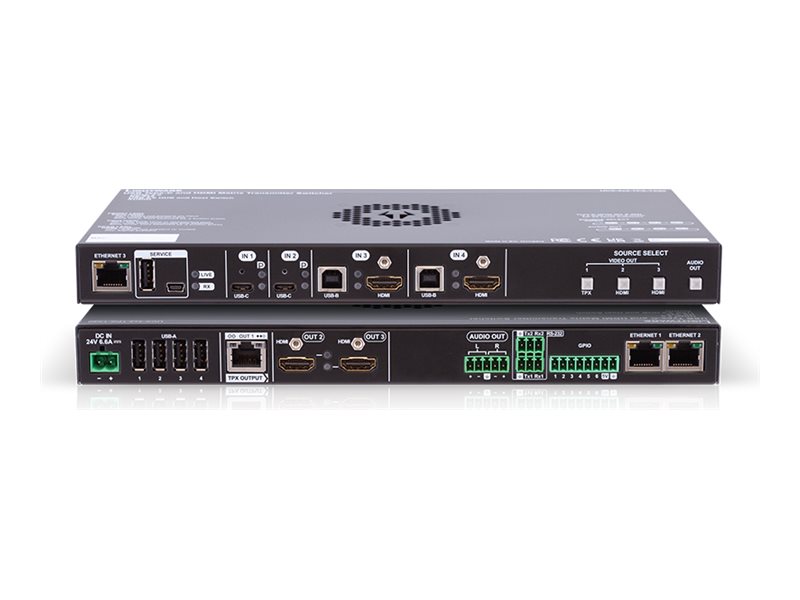

| Product Description | Lightware UCX-4X3-TPX-TX20 - video/audio/USB switch - 4 x 3 - rack-mountable |
| Device Type | Video/audio/USB switch - 4 x 3 |
| Enclosure Type | Rack-mountable |
| Subtype | HDMI / USB |
| Performance | Video bandwidth (HDMI): 18 Gbps |
| Remote Management Protocol | TCP/IP, UDP, TLS |
| Features | 1 fan, steel housing, Dolby Digital support, Dolby TrueHD support, DTS support, DTS-HD support, HBR, 5K30Hz support, DisplayPort Alternate mode, audio embedding/de-embedding, bi-directional RS-232, RGB 4:4:4, 3D support, YCbCr 4:4:4 |
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 10.7 in x 5.5 in x 1 in |
| Localization | Australia, Europe, Japan, New Zealand, United Kingdom, United States |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio/USB switch - 4 x 3 |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | HDMI / USB |
| Performance | Video bandwidth (HDMI): 18 Gbps |
| Remote Management Protocol | TCP/IP, UDP, TLS |
| Max Resolution | 4096 x 2160 @ 30 Hz |
| Max Video Bandwidth | 600 MHz |
| Features | 1 fan, steel housing, Dolby Digital support, Dolby TrueHD support, DTS support, DTS-HD support, HBR, 5K30Hz support, DisplayPort Alternate mode, audio embedding/de-embedding, bi-directional RS-232, RGB 4:4:4, 3D support, YCbCr 4:4:4 |
| Compliant Standards | HDCP 1.4, HDCP 2.2 |
| Status Indicators | Input, live, USB, video |
| Expansion / Connectivity | |
| Interfaces | 2 x HDMI input female ¦ 2 x HDMI output female ¦ 4 x USB 2.0 Type A ¦ 2 x USB-C female ¦ 2 x USB 2.0 input Type B female ¦ 1 x audio output 5 pin Phoenix ¦ 3 x 10/100/1000 Base-T RJ-45 female ¦ 2 x serial (RS-232) 3 pin Phoenix ¦ 1 x management (mini-USB) mini-USB female ¦ 1 x USB (service) Type A female ¦ 1 x GPIO 8 pin Phoenix |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | International power plugs |
| Compliant Standards | UKCA, IEC 61000-3-3:2013+AMD1:2017, EN 55032:2015, EN 55035:2017, EN 63000:2018, RFC3164, RFC5424 |
| Localization | Australia, Europe, Japan, New Zealand, United Kingdom, United States |
| Power | |
| Power Device | External power adapter |
| Power Provided | 220 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 10.7 in |
| Depth | 5.5 in |
| Height | 1 in |
