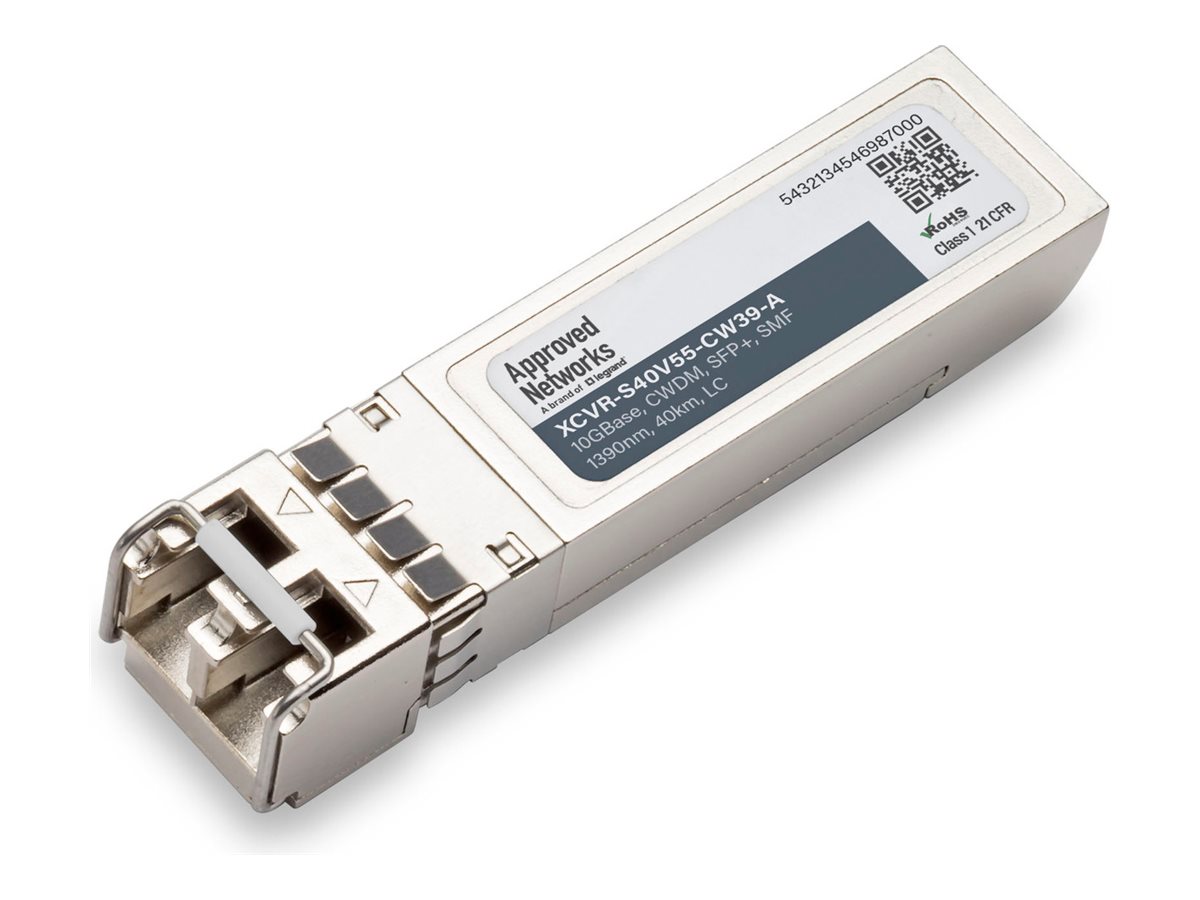

SFP+ transceiver module (equivalent to: Ciena XCVR-S40V55-CW39) - 10GbE - 10GBase-CWDM - LC single-mode - up to 24.9 miles - 1390 nm
| Main Specifications | |
|---|---|
| Product Description | Approved Networks - SFP+ transceiver module - 10GbE |
| Device Type | SFP+ transceiver module - LC single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 10GBase-CWDM |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1390 nm |
| Data Link Protocol | 10GbE |
| Max Transfer Distance | 24.9 miles |
| OEM Manufacturer Equivalent Part Number | Ciena XCVR-S40V55-CW39 |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-CWDM (duplex) - LC single-mode female x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | RoHS, MSA, SFF-8472 |
| OEM Manufacturer Equivalent Part Number | Ciena XCVR-S40V55-CW39 |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-CWDM |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1390 nm |
| Max Transfer Distance | 24.9 miles |
| Features | Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM), 15 dB power budget, Distributed Feedback Laser (DFB), white pull tab, ITU39, -16 dBm sensivity, transmit min -1 dBm / max 4 dBm |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
