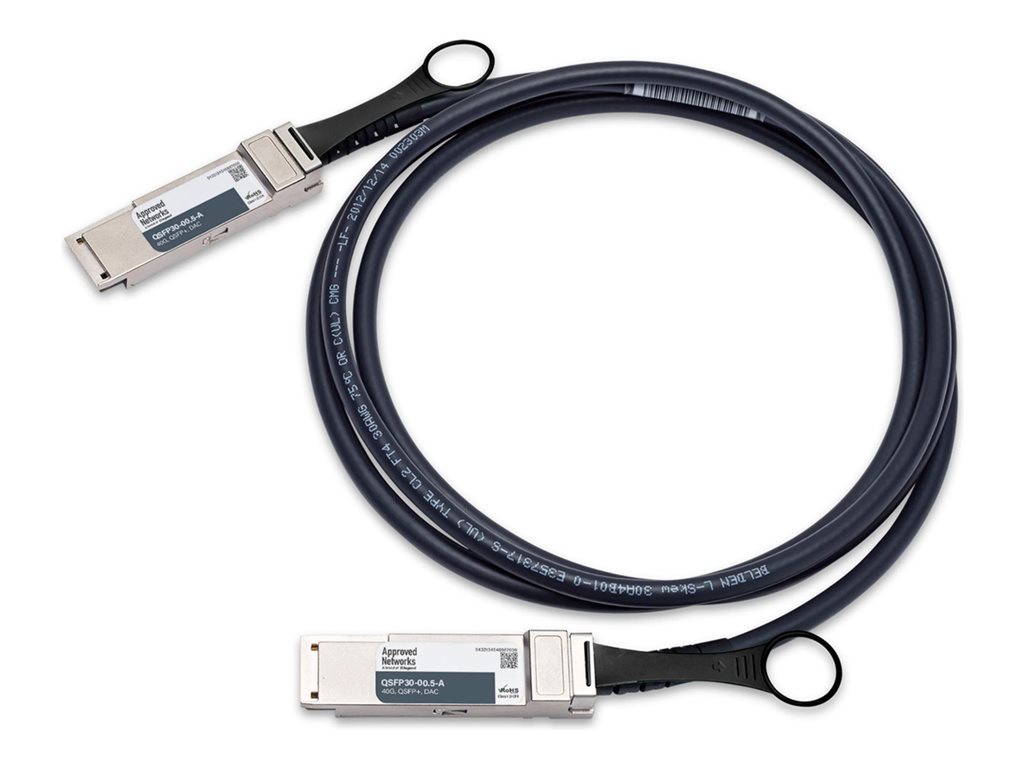

40GBase breakout cable - QSFP+ (M) to QSFP+ (M) - 1.6 ft - twinaxial - IEEE 802.3ba - passive, solid
| Main Specifications | |
|---|---|
| Product Description | Approved Networks 40GBase breakout cable - 1.6 ft |
| Type | 40GBase breakout cable - IEEE 802.3ba |
| Technology | Twinaxial |
| Features | Passive cable, solid, minimized Near-End Crosstalk (NEXT), silver-plated copper conductor, EMI protection, bending radius 44.45 mm |
| Length | 1.6 ft |
| Connector | QSFP+ - male |
| Connector (Second End) | QSFP+ - male |
| OEM Manufacturer Equivalent Part Number | Siemon QSFP30-00.5 |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Network Cable Type | 40GBase breakout cable - IEEE 802.3ba |
| Technology | Twinaxial |
| Jacket Material | PVC |
| American Wire Gauge (AWG) | 30 |
| Features | Passive cable, solid, minimized Near-End Crosstalk (NEXT), silver-plated copper conductor, EMI protection, bending radius 44.45 mm |
| Length | 1.6 ft |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| OEM Manufacturer Equivalent Part Number | Siemon QSFP30-00.5 |
| Compliant Standards | RoHS, MSA |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Connectivity | |
| Connector | QSFP+ - male |
| Connector (Second End) | QSFP+ - male |
