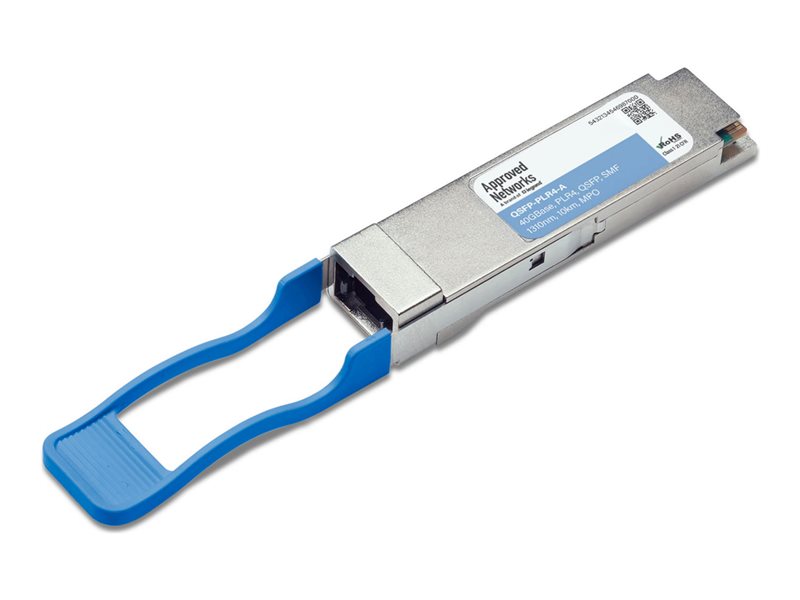

QSFP+ transceiver module (equivalent to: Arista QSFP-PLR4) - 40GbE - 40GBase-PLR4 - MTP/MPO-12 single-mode - up to 6.2 miles - 1310 nm
| Main Specifications | |
|---|---|
| Product Description | Approved Networks - QSFP+ transceiver module - 40GbE |
| Device Type | QSFP+ transceiver module - MTP/MPO-12 single-mode |
| Form Factor | Plug-in module |
| Cabling Type | 40GBase-PLR4 |
| Data Transfer Rate | 41.2 Gbps |
| Optical Wave Length | 1310 nm |
| Data Link Protocol | 40GbE |
| Max Transfer Distance | 6.2 miles |
| OEM Manufacturer Equivalent Part Number | Arista QSFP-PLR4 |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | QSFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 40GBase-PLR4 - MTP/MPO-12 single-mode |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | RoHS, MSA |
| OEM Manufacturer Equivalent Part Number | Arista QSFP-PLR4 |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 40GBase-PLR4 |
| Data Link Protocol | 40GbE |
| Data Transfer Rate | 41.2 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 6.2 miles |
| Features | Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM), OTU2 compatible, 4.5 dB power budget, Distributed Feedback Laser (DFB), -14.5 dBm sensivity, transmit min -6 dBm / max 1 dBm, OTU1e compatible, OTU2e compatible |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
