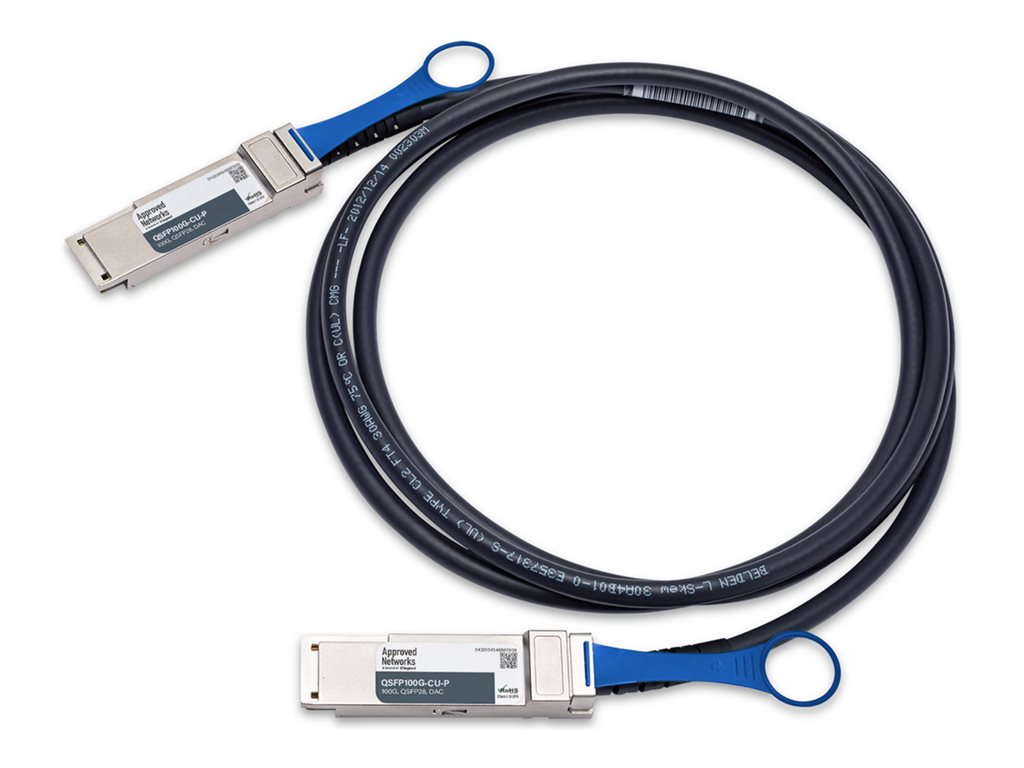

100GBase direct attach cable - QSFP28 (M) to QSFP28 (M) - 10 ft - twinaxial - SFF-8636/SFF-8679/IEEE P802.3by - passive, solid
| Main Specifications | |
|---|---|
| Product Description | Approved Networks 100GBase direct attach cable - 10 ft |
| Type | 100GBase direct attach cable - SFF-8636/SFF-8679/IEEE P802.3by |
| Technology | Twinaxial |
| Features | Passive cable, solid, silver-plated copper conductor, bending radius 34.5mm |
| Length | 10 ft |
| Connector | QSFP28 - male |
| Connector (Second End) | QSFP28 - male |
| OEM Manufacturer Equivalent Part Number | Cisco QSFP-100G-CU3M-A |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Network Cable Type | 100GBase direct attach cable - SFF-8636/SFF-8679/IEEE P802.3by |
| Technology | Twinaxial |
| Jacket Material | PVC |
| American Wire Gauge (AWG) | 30 |
| Impedance | 100 Ohm |
| Features | Passive cable, solid, silver-plated copper conductor, bending radius 34.5mm |
| Length | 10 ft |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| OEM Manufacturer Equivalent Part Number | Cisco QSFP-100G-CU3M-A |
| Compliant Standards | RoHS, MSA |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Connectivity | |
| Connector | QSFP28 - male |
| Connector (Second End) | QSFP28 - male |
