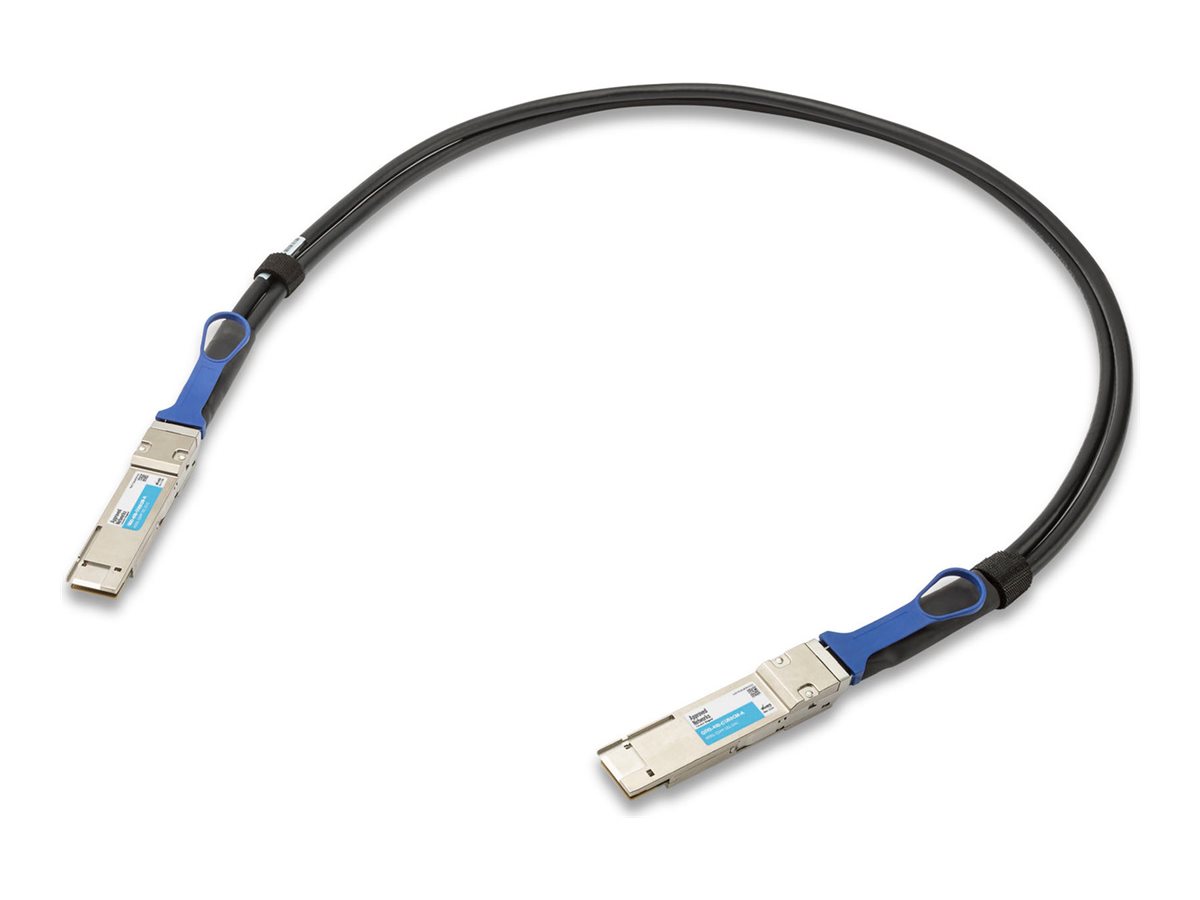

400GBase-CR8 direct attach cable - QSFP-DD to QSFP-DD - 1.6 ft - twinaxial - IEEE P802.3cd/SFF-8679/SFF-8636 - passive
| Main Specifications | |
|---|---|
| Product Description | Approved Networks 400GBase-CR8 direct attach cable - 1.6 ft |
| Type | 400GBase-CR8 direct attach cable - IEEE P802.3cd/SFF-8679/SFF-8636 |
| Technology | Twinaxial |
| Features | Passive cable, InfiniBand EDR Link support, up to 400 Gbps, bending radius 35mm, 8 x 50Gbps PAM4 modulation, Bit Error Rate (BER) 1E-15 |
| Length | 1.6 ft |
| Connector | QSFP-DD |
| Connector (Second End) | QSFP-DD |
| OEM Manufacturer Equivalent Part Number | Cisco QDD-400-CU50CM |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Network Cable Type | 400GBase-CR8 direct attach cable - IEEE P802.3cd/SFF-8679/SFF-8636 |
| Technology | Twinaxial |
| Jacket Material | PVC |
| American Wire Gauge (AWG) | 30 |
| Features | Passive cable, InfiniBand EDR Link support, up to 400 Gbps, bending radius 35mm, 8 x 50Gbps PAM4 modulation, Bit Error Rate (BER) 1E-15 |
| Length | 1.6 ft |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Miscellaneous | |
| OEM Manufacturer Equivalent Part Number | Cisco QDD-400-CU50CM |
| Compliant Standards | RoHS, MSA |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Connectivity | |
| Connector | QSFP-DD |
| Connector (Second End) | QSFP-DD |
