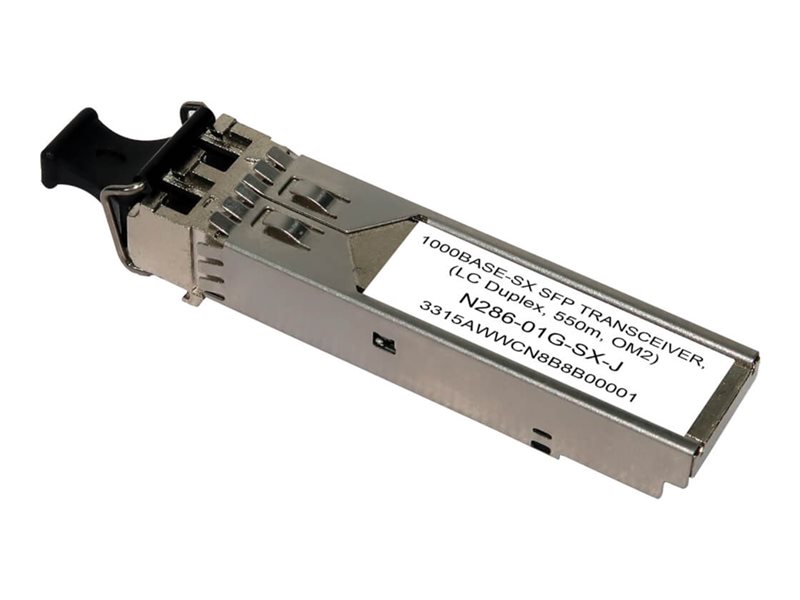

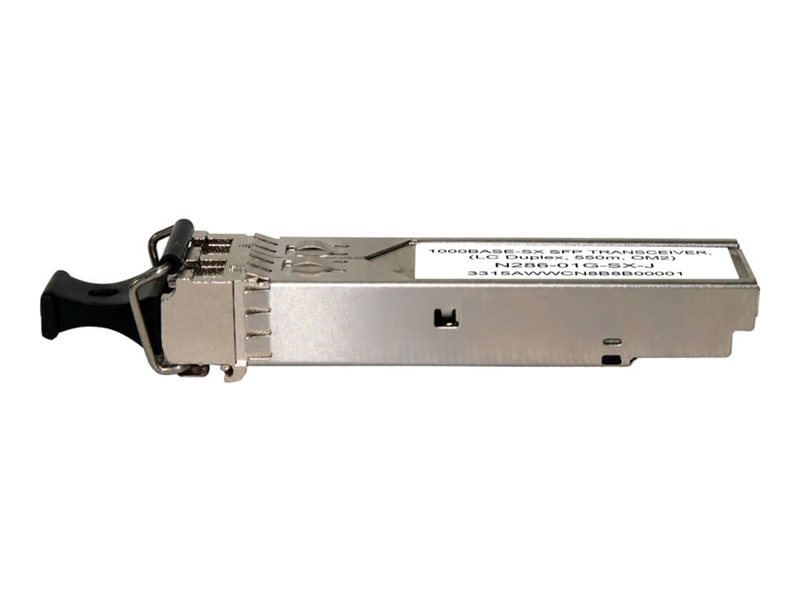

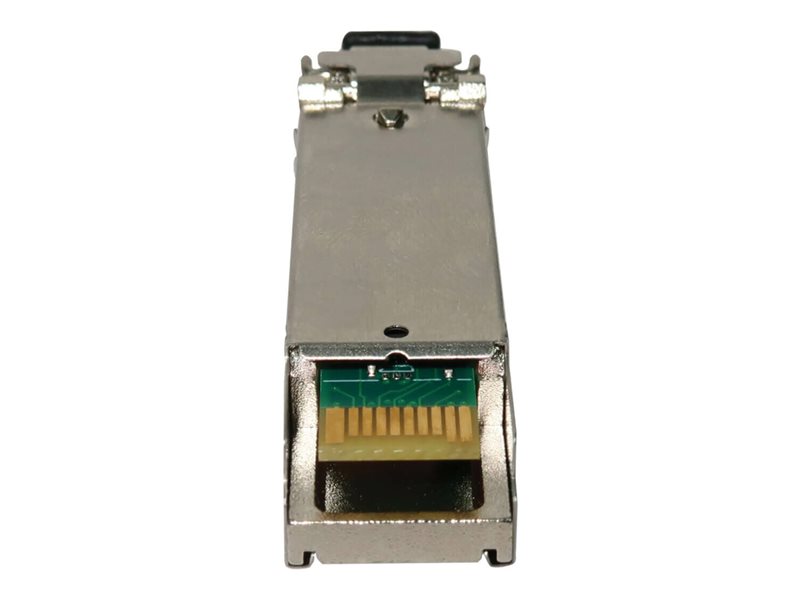

1000Base-SX, LC Duplex MMF, 1.25 Gbps, 850 nm, 550 m (1804 ft.) - SFP (mini-GBIC) transceiver module - 1GbE - 1000Base-SX - LC multi-mode - up to 1800 ft - 830-860 nm
| Main Specifications | |
|---|---|
| Product Description | Eaton Tripp Lite Series Juniper-Compatible EX-SFP-1GE-SX SFP Transceiver - 1000Base-SX, LC Duplex MMF, 1.25 Gbps, 850 nm, 550 m (1804 ft.) - SFP (mini-GBIC) transceiver module - 1GbE |
| Device Type | SFP (mini-GBIC) transceiver module - LC multi-mode |
| Form Factor | Plug-in module |
| Cabling Type | 1000Base-SX |
| Data Transfer Rate | 1.25 Gbps |
| Optical Wave Length | 830-860 nm |
| Data Link Protocol | 1GbE |
| Max Transfer Distance | 1800 ft |
| Weight | 1.76 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-SX - LC multi-mode male x 2 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | OM2, EN 55032, IEC/EN 63000, RoHS, UKCA, MSA |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-SX |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1.25 Gbps |
| Optical Wave Length | 830-860 nm |
| Max Transfer Distance | 1800 ft |
| Features | Hot swappable, Digital Diagnostics Monitoring (DDM), EMI/RFI protection, zinc housing, Juniper compatible |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Dimensions & Weight | |
| Weight | 1.76 oz |
