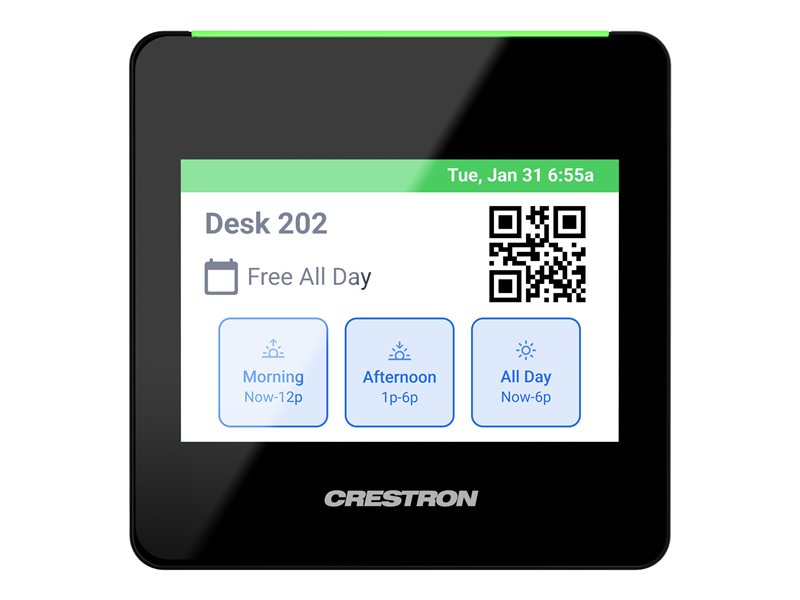

Room manager - 3.5", desk scheduling - wireless, wired - 802.11a/b/g/n/ac - 2.4 Ghz, 5 GHz - 10/100/1000 Ethernet - textured black
| Main Specifications | |
|---|---|
| Product Description | Crestron TSS-470E-B-T - room manager - 3.5", desk scheduling - 802.11a/b/g/n/ac - textured black |
| Product Type | Room manager |
| Functions | Desk scheduling |
| Power Source | PoE |
| Internet of Things (IoT) Platform | XiO Cloud |
| Connectivity | Wireless, wired - 802.11a/b/g/n/ac - 10/100/1000 Ethernet |
| Frequency Band | 2.4 Ghz, 5 GHz |
| Input Type | Touch screen |
| Display | 3.5" - LED - color - Yes |
| Color | Textured black |
| Dimensions (WxDxH) | 3.9 in x 1.3 in x 3.9 in |
| General | |
| Product Type | Room manager |
| Functions | Desk scheduling |
| Power Source | PoE |
| Connectivity Technology | Wireless, wired - Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Max Range Open Space | 45 ft |
| Frequency Band | 2.4 Ghz, 5 GHz |
| Display | 3.5" - LED - color |
| Display Resolution | 480 x 320 pixels |
| Touchscreen | Yes |
| Interfaces Details | LAN ¦ USB-C 2.0 |
| Features | Reset button, RGB LED illumination, PoE+, auto-switching, auto-negotiation, auto-discovery, full duplex mode, half duplex mode, TCP/IP support, UDP support, CIP support, DHCP support, SFTP support, SNMP support, NTP support, IPv4 support, HTTPS support |
| Miscellaneous | |
| Product Material | Plastic |
| Color | Textured black |
| Encryption Algorithm | SSL, TLS, 64-bit WEP, 128-bit WEP, WPA, WPA2-PSK, TKIP, AES |
| Authentication Method | Secure Shell (SSH) |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 3 Watt |
| Compliant Standards | IEEE 802.1x, IEEE 802.3at, IEEE 802.3af, FCC Part 15 B, IC, Intertek |
| RAM | |
| Installed Size | 1 GB |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Flash Memory | |
| Installed Size | 8 GB |
| Dimensions & Weight | |
| Width | 3.9 in |
| Depth | 1.3 in |
| Height | 3.9 in |
| Weight | 5.47 oz |
| Control Unit | |
| Input Type | Touch screen |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Platform | XiO Cloud |
