Presentation controller kit
| Main Specifications | |
|---|---|
| Product Description | Crestron AirMedia Series 3 AM3-111 KIT presentation controller kit |
| Type | Presentation controller kit |
| Dimensions (WxDxH) | 5 in - 5 in - 1.2 in |
| Weight | 11.64 oz |
| General | |
| Type | Presentation controller kit |
| Width | 5 in |
| Depth | 5 in |
| Height | 1.2 in |
| Weight | 11.64 oz |
| Power | |
| Voltage Required | AC 120/230 V AC 100-240 V |
| Frequency | 50/60 Hz |
| Power Consumption | 13.5 Watt |
| Low Voltage Power | DC 24 V / PoE Plus |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Kit Content | |
| Kit Content | (1) x receiver unit ¦ (1) x wireless connect adapter |
| Terminals | |

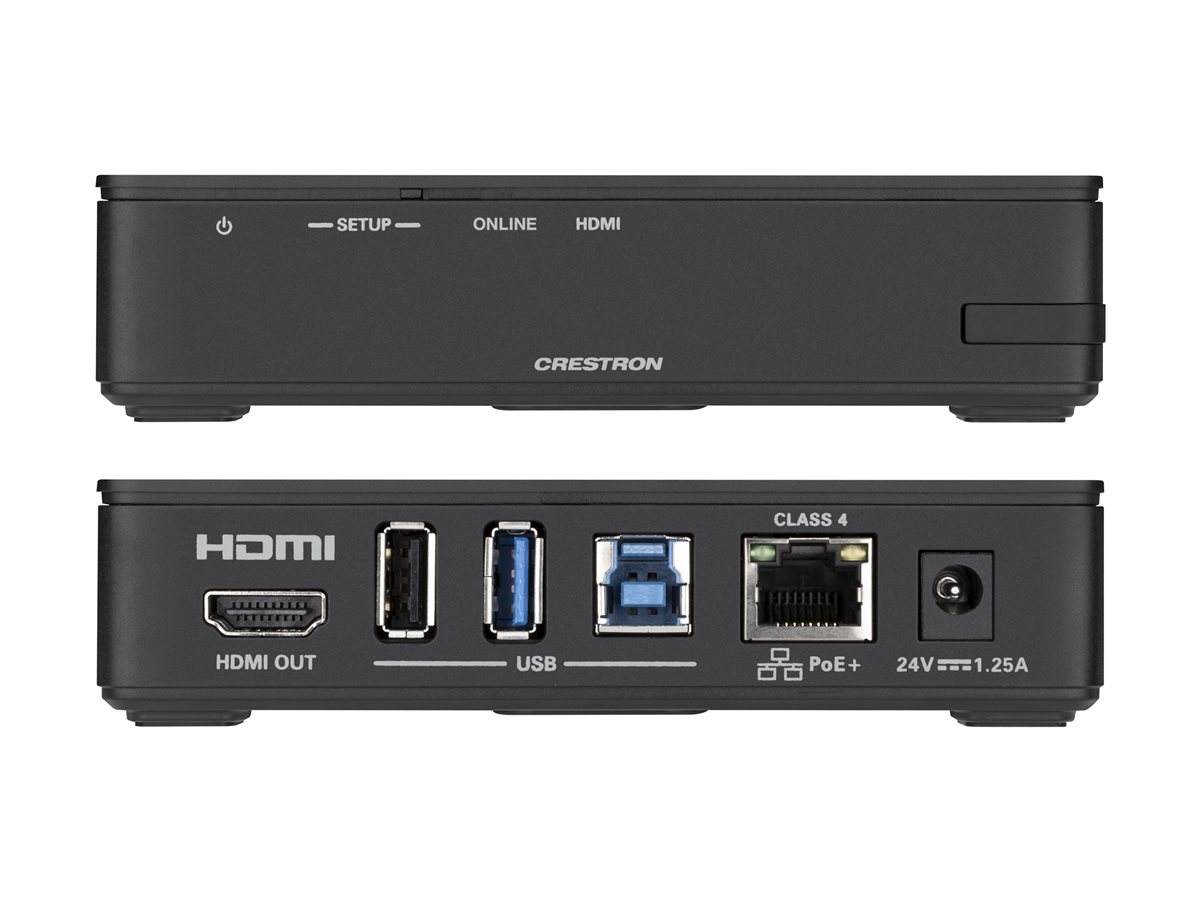

| Terminals | (1) x HDMI output - 19 pin HDMI Type A ¦ (1) x USB 2.0 - 4 pin USB type A ¦ (1) x USB 3.0 - 9 pin USB Type A ¦ (1) x USB 3.0 - 9 pin USB Type B ¦ (1) x network - RJ-45 - PoE+ |
| Studio & Production Equipment | |
| Features | Power Over Ethernet support, EDID support, Consumer Electronics Control (CEC), HDCP 2.2 compliant, IEEE 802.11 a/b/g/n/ac/ax support, surface-mountable, HTTPS support, DHCP support, TCP/IP support, UDP/IP support, SSL support, SSH support, SFTP support, active directory authentication, IPv4 support, mDNS support, TLS support, AES encryption, 4K30 signal support |
