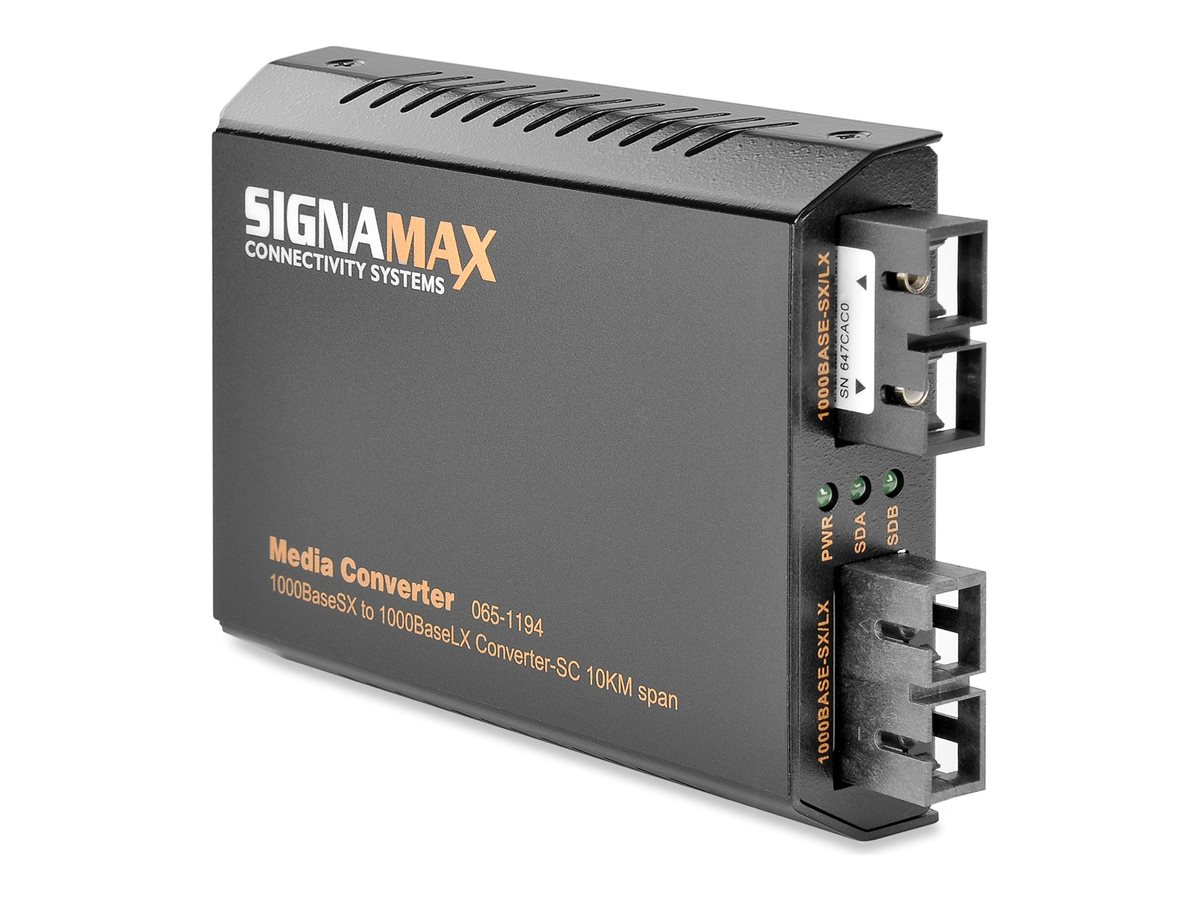

Media converter - 1GbE - 1000Base-SX, 1000Base-LX - SC multi-mode / SC single-mode - up to 12.4 miles
| Main Specifications | |
|---|---|
| Product Description | Signamax - media converter - 1GbE |
| Device Type | Media converter - SC multi-mode / SC single-mode |
| Form Factor | External |
| Cabling Type | 1000Base-SX, 1000Base-LX |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | 1GbE |
| Max Transfer Distance | 12.4 miles |
| Dimensions (WxDxH) | 3.3 in x 4.3 in x 0.9 in |
| Weight | 5.29 oz |
| General | |
| Device Type | Media converter |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-SX ¦ 1 x Ethernet 1000Base-LX |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, VCCI Class A |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-SX, 1000Base-LX |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1 Gbps |
| Max Transfer Distance | 12.4 miles |
| Status Indicators | Power, status, port transmission speed |
| Compliant Standards | IEEE 802.3z |
| Power | |
| Power Device | External power adapter |
| Voltage Required | (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 95% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 3.3 in |
| Depth | 4.3 in |
| Height | 0.9 in |
| Weight | 5.29 oz |
