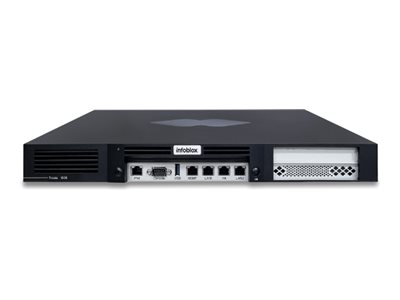

Network management device - 1GbE - 1U - hardware only - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Infoblox Trinzic X6 TE-1606 - network management device |
| Device Type | Network management device |
| Form Factor | Rack-mountable - 1U |
| Processor | 1 x Intel Xeon |
| RAM | 64 GB |
| Hard Drive | 2 TB x 2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Pricing Type | Hardware only |
| Dimensions (WxDxH) | 17.4 in x 20.6 in x 1.7 in |
| Weight | 17 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Network management device |
| Height (Rack Units) | 1U |
| Built-in Devices | 3 x fans |
| Width | 17.4 in |
| Depth | 20.6 in |
| Height | 1.7 in |
| Weight | 17 lbs |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (HA) - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x management (Lights-Out) - RJ-45 ¦ 1 x serial - DB-9 ¦ 1 x USB 3.0 - Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC, TUV, CB, VCCI, C-Tick, KCC, CCC, NOM, BIS, GOST, WEEE, RoHS |
| Pricing Type | Hardware only |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | DHCP, DNS |
| Status Indicators | Power, Unit ID |
| Features | Trusted Platform Module (TPM), UEFI support, Lights Out Management (LOM), chassis ground lug, system on flash, High Availability |
| Compliant Standards | USB 2.0, USB 3.0 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 600 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Intel Xeon |
| RAM | 64 GB |
| Hard Drive | SSD 2 TB x 2 |
| RAID Level | RAID 1 |
