Motherboard - deep micro atx - LGA4926 Socket - USB 3.2 Gen 1 - 10 Gigabit LAN
| Main Specifications | |
|---|---|

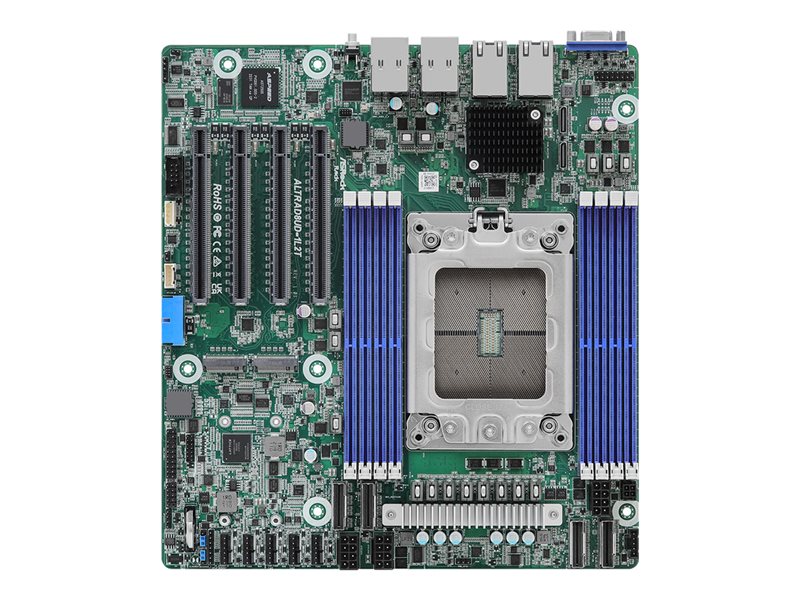

| Product Description | ASRock ALTRAD8UD-1L2T - motherboard - deep micro atx - LGA4926 Socket |
| Product Type | Motherboard - deep micro atx |
| Processor Socket | 1 x LGA4926 Socket |
| Compatible Processors | (supports Ampere Altra Max / Ampere Altra) |
| Max RAM Size | 2048 GB |
| RAM Supported | 8 DIMM slots - DDR4 registered, Load-Reduced |
| Storage Ports | 4 x SlimSAS, 2 x Nvme port, 2 x M.2 |
| USB / FireWire Ports | USB 3.2 Gen 1 |
| Graphics | ASPEED AST2500 |
| Dedicated Video Memory | 512 MB DDR4 SDRAM |
| LAN | 10 Gigabit Ethernet |
| General | |
| Product Type | Motherboard - deep micro atx |
| Processor Socket | LGA4926 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Ampere Altra Max / Ampere Altra) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin ¦ 4 x PCIe 4.0 x16 ¦ 2 x M.2 socket (2230/2280 M.2 Key M slot) ¦ 4 x PCIe 4.0 x8 ¦ 2 x PCIe 4.0 x4 |
| Storage Interfaces | PCIe 4.0 -connectors: 2 x M.2 ¦ PCIe 4.0 -connectors: 4 x SlimSAS ¦ PCIe 4.0 -connectors: 4 x NVMe port |
| Interfaces | 1 x VGA ¦ 4 x USB 3.2 Gen 1 ¦ 2 x LAN (10Gigabit Ethernet) ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x IPMI ¦ 1 x management |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x SPI - header |
| Power Connectors | 4-pin ATX12V connector, 3 x 8-pin ATX12V connectors, DC-in power connector |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| Width | 9.6 in |
| Depth | 10.5 in |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ACPI 6.2 support, SMBIOS 3.4 support, IPMI support |
| Hardware Monitoring | Chassis temperature, chassis fan tachometer, fan control, system voltage |
| Hardware Features | Aspeed AST2500 Controller, ASRock Rack Instant Flash |
| LAN | |
| Network Controller | Intel I210 / X550 / Realtek RTL8211E |
| Network Interfaces | 10 Gigabit Ethernet |
| Graphics | |
| Graphics Controller | ASPEED AST2500 |
| Dedicated Video Memory | 512 MB DDR4 SDRAM |
| Supported RAM | |
| Max Size | 2048 GB |
| Technology | DDR4 |
| Bus Clock | 3200 MHz |
| Registered or Buffered | Registered, Load-Reduced |
| Features | Registered, Load-Reduced DIMM (LRDIMM) |
