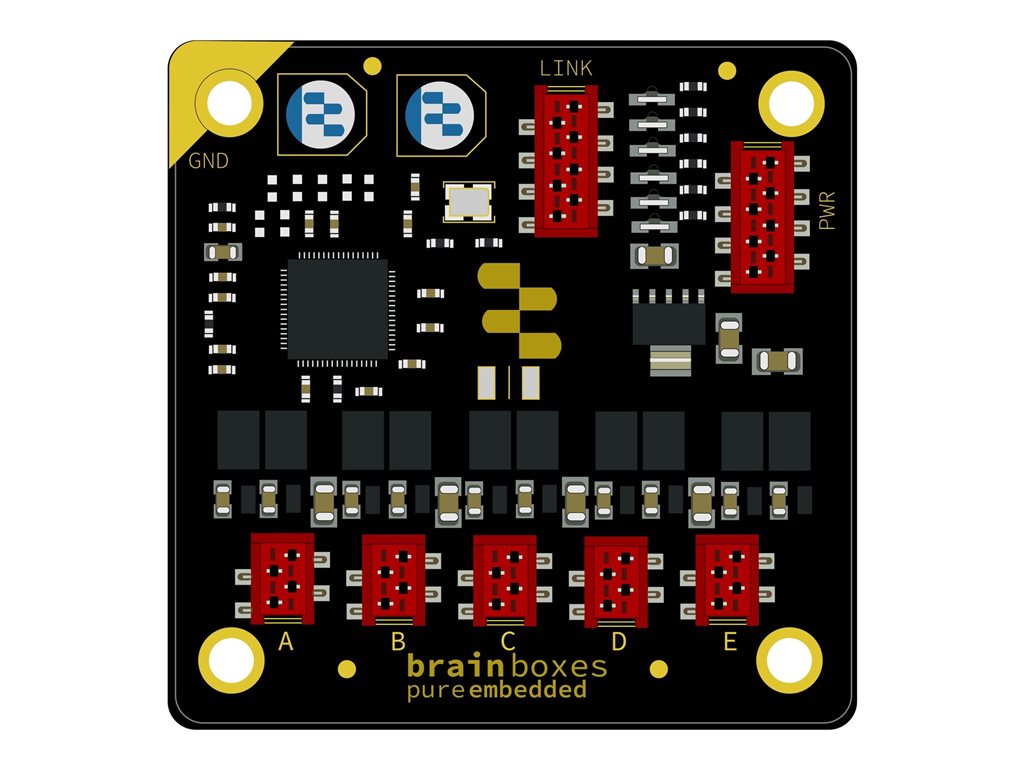

Switch - pure, embedded, industrial - unmanaged - 5 x 10/100 - internal - TAA Compliant
| Main Specifications | |
|---|---|
| Product Description | Brainboxes PE-505 - switch - pure, embedded, industrial - 5 ports - unmanaged - internal - TAA Compliant |
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | Internal |
| Subtype | Fast Ethernet |
| Ports | 5 x 10/100 |
| Features | Auto-uplink (auto MDI/MDI-X), reverse polarity protection, transient voltage protection, 1.5 KV Magnetic Isolation |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Power | DC 3.3 - 5 V |
| Dimensions (WxDxH) | 2.2 in x 0.3 in x 2.2 in |
| Weight | 0.63 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | Internal |
| Subtype | Fast Ethernet |
| Ports | 5 x 10/100 |
| Features | Auto-uplink (auto MDI/MDI-X), reverse polarity protection, transient voltage protection, 1.5 KV Magnetic Isolation |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Status Indicators | Link/activity, power |
| Expansion / Connectivity | |
| Interfaces | 5 x 10/100 Base-T TE MicroMatch |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | AEO, FCC, UKCA, RoHS, REACH, WEEE, BS EN IEC 62368-1, BS EN 55032, BS EN 55035, UL 94-V0, RoHS 2015/863/EU, IEC/EN 63000, Directive 1907/2006/EC, EN 60068-2-31, ISO 9001, ISO 14001, GSA |
| TAA Compliant | Yes |
| Power | |
| Voltage Required | DC 3.3 - 5 V |
| Power Consumption Operational | 2.5 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Dimensions & Weight | |
| Width | 2.2 in |
| Depth | 0.3 in |
| Height | 2.2 in |
| Weight | 0.63 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 3.9 in |
| Shipping Depth | 1.2 in |
| Shipping Height | 3.5 in |
| Shipping Weight | 0.95 oz |
