NVR - 32 channels 4 TB - networked - rack-mountable
| Main Specifications | |
|---|---|

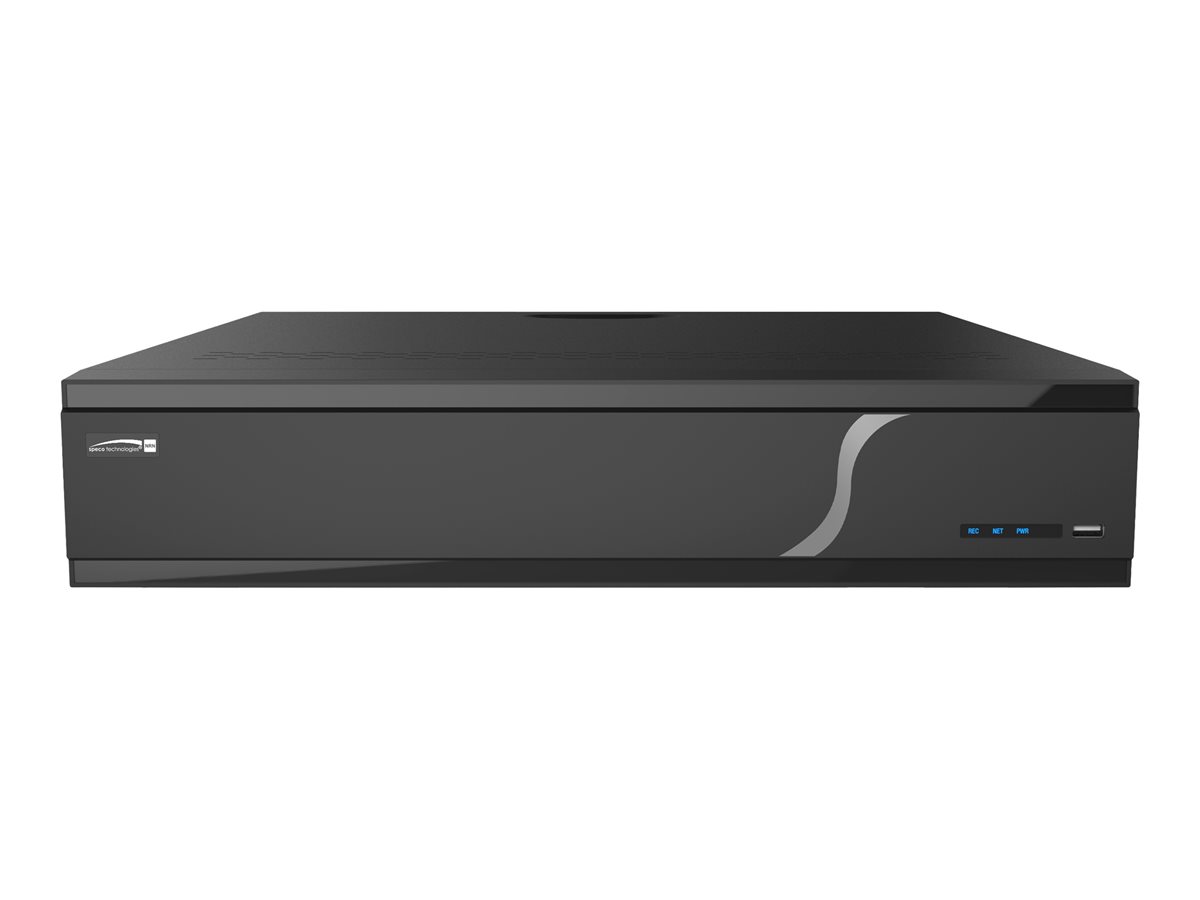

| Product Description | Speco N32NRN - standalone NVR - 32 channels |
| Device Type | NVR - 32 channels - networked - rack-mountable |
| IP Cameras Supported | 32 |
| Frame Rate | 30 fps, 20 fps |
| Compression Format | H.264, H.265 |
| Hard Drive | 4 TB |
| Hard Drive(s) Supported | Quantity: 8 - total capacity: 160 TB |
| Dimensions (WxDxH) | 17.5 in x 17.2 in x 3.5 in |
| Manufacturer Warranty | 5 years |
| General | |
| Device Type | NVR - rack-mountable |
| Video Channels | 32 |
| IP Cameras Supported | 32 |
| Audio Channels | 32 |
| Compression Format | H.264, H.265 |
| Package Content | Rack ears, remote control |
| Compliant Standards | NDAA Section 889 |
| Warranty | 5 years |
| Networking | |
| DDNS Support | Yes |
| Supported Protocols | P2P, TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP |
| Features | Disk S.M.A.R.T. Scan, Polycom Lost Packet Recovery (LPR) technology, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% |
| Hard Drive | |
| Quantity Supported | 8 |
| Capacity | 4 TB |
| Interface | Serial ATA |
| Supported Max Total Capacity | 160 TB |
| Connections | |
| Video Output Ports | HDMI x 2, VGA x 1 |
| Audio Input Ports | RCA x 1 |
| Audio Output Ports | RCA x 1 |
| Alarm Ports | Alarm output x 9, alarm input x 16 |
| Other Ports | USB 2.0 x 2, USB 3.0 x 1 |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 17.2 in |
| Height | 3.5 in |
| Security DVR | |
| Frame Rate (Record) | 30 fps, 20 fps |
| Video Recording Resolution | 12 Megapixels, 8 Megapixels, 5 Megapixels, 4 Megapixels, 3 Megapixels, 1920x1080, 1280x720 |
| Playback Search | Smart search, bookmark, motion detection, date/time, event, museum, log, snapshot |
| Record Events | Analytics, continuous, motion detection, sensor, scheduled, manual |
| Networked | Yes |
| Features | RAID 0 support, RAID 1 support, RAID 10 support, RAID 5 support, RAID 6 support, 2-way audio communication, face recognition, Line Crossing Detection, Fisheye Dewarp function, smartphone support, intrusion detection, people counting |
