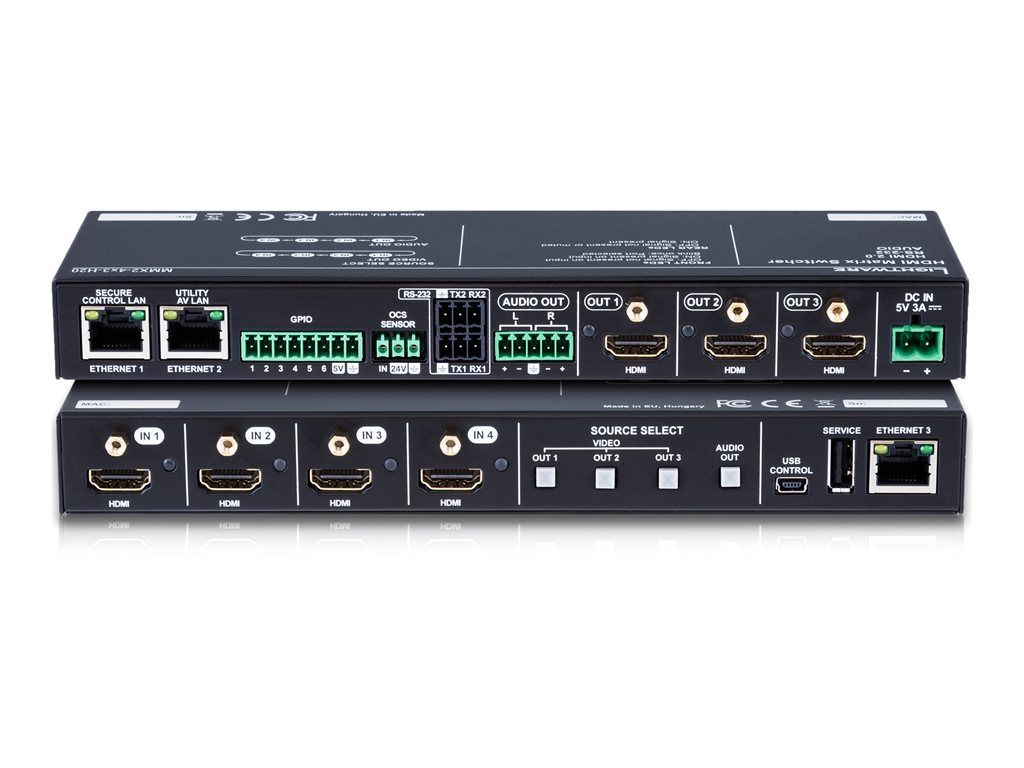

Video/audio switch - matrix - desktop
| Main Specifications | |
|---|---|
| Product Description | Lightware MMX2-4X3-H20 - video/audio switch - matrix |
| Device Type | Video/audio switch |
| Subtype | HDMI |
| Features | HDCP compliant, BYOD mode, 4K60Hz support, RGB 4:4:4, 18 Gbps video bandwidth, LPCM support, YCbCr 4:4:4, audio de-embedding, HDMI audio support, front panel select buttons, passive cooling, steel housing, HTTPS support, noise suppression, Dolby Digital support, Dolby TrueHD support, DTS support, DTS-HD support, HBR |
| Compliant Standards | HDCP 2.2 |
| Dimensions (WxDxH) | 8.7 in x 2.7 in x 1 in |
| Weight | 16.4 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video/audio switch |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Encryption Algorithm | SSL |
| Max Resolution | 4K @ 60 Hz |
| Features | HDCP compliant, BYOD mode, 4K60Hz support, RGB 4:4:4, 18 Gbps video bandwidth, LPCM support, YCbCr 4:4:4, audio de-embedding, HDMI audio support, front panel select buttons, passive cooling, steel housing, HTTPS support, noise suppression, Dolby Digital support, Dolby TrueHD support, DTS support, DTS-HD support, HBR |
| Compliant Standards | HDCP 2.2 |
| Expansion / Connectivity | |
| Interfaces | 4 x HDMI input ¦ 3 x HDMI output ¦ 3 x LAN RJ-45 ¦ 2 x serial (RS-232) 3 pin Phoenix ¦ 1 x USB mini-USB ¦ 1 x GPIO 8 pin Phoenix ¦ 1 x USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Included Accessories | 2 x M3 screws |
| Compliant Standards | EN 55032:2015, FCC CFR47 Part 15 B, IEC 61000-3-3:2013+AMD1:2017 |
| Power | |
| Power Device | External power adapter |
| Power Provided | 5 V - 3 A |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 8.7 in |
| Depth | 2.7 in |
| Height | 1 in |
| Weight | 16.4 oz |
