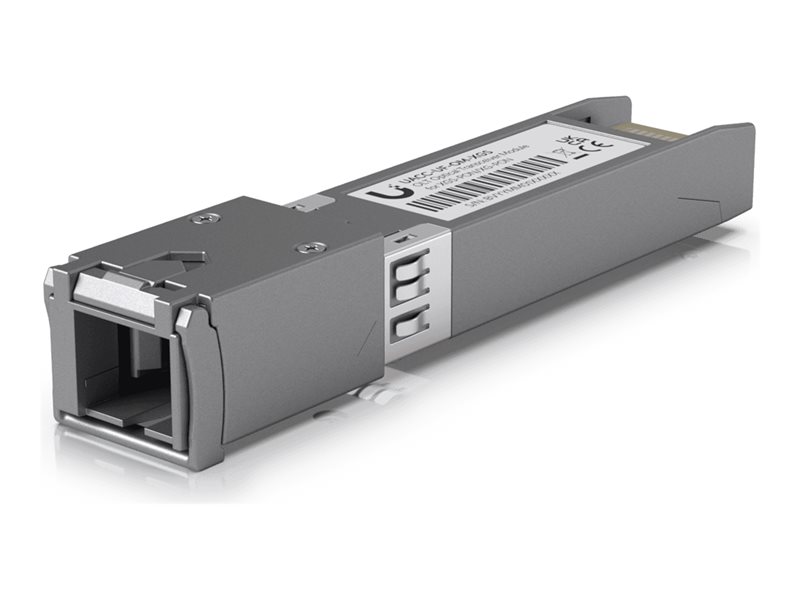

SFP+ transceiver module - XGS-PON, XG-PON, 10GbE, 2.5GbE - SC/UPC single-mode - up to 12.4 miles - 1577 (TX) / 1270 (RX) nm
| Main Specifications | |
|---|---|
| Product Description | Ubiquiti - SFP+ transceiver module - XGS-PON, XG-PON, 10GbE, 2.5GbE |
| Device Type | SFP+ transceiver module - SC/UPC single-mode |
| Form Factor | Plug-in module |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1577 (TX) / 1270 (RX) nm |
| Data Link Protocol | XGS-PON, XG-PON, 10GbE, 2.5GbE |
| Max Transfer Distance | 12.4 miles |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Expansion / Connectivity | |
| Interfaces | 1 x XGS/XG-PON - SC/UPC single-mode female |
| Miscellaneous | |
| Compliant Standards | Laser Class 1, EN 60825-1:2014, IEC 60825-1:2014 |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | XGS-PON, XG-PON, 10GbE, 2.5GbE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1577 (TX) / 1270 (RX) nm |
| Max Transfer Distance | 12.4 miles |
| Features | Optical line termination (OLT) |
| Power | |
| Power Consumption Operational | 2.6 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
