Video/audio switch - desktop - TAA Compliant
| Main Specifications | |
|---|---|

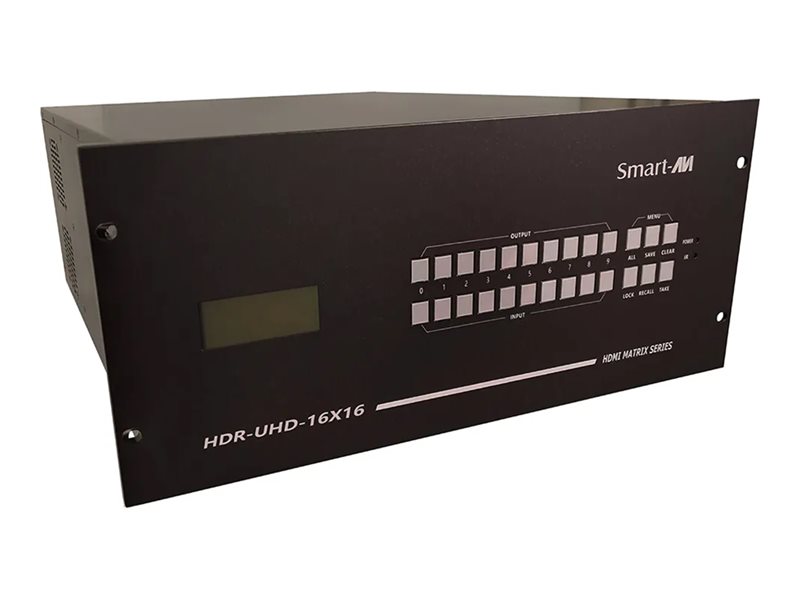

| Product Description | SmartAVI HDR-UHD-16x16 - video/audio switch - 16 ports - TAA Compliant |
| Device Type | Video/audio switch - 16 ports |
| Subtype | HDMI |
| Performance | Bandwidth: 18 Gbps |
| Features | Seamless switching, integrated scaler, EDID Management |
| Power | (50/60 Hz) |
| Dimensions (WxDxH) | 17 in x 15 in x 7.1 in |
| Weight | 24.47 lbs |
| TAA Compliant | Yes |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Video/audio switch - 16 ports |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Performance | Bandwidth: 18 Gbps |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Features | Seamless switching, integrated scaler, EDID Management |
| Expansion / Connectivity | |
| Interfaces | 16 x HDMI input ¦ 16 x HDMI output ¦ 16 x audio input mini-jack ¦ 16 x audio output mini-jack ¦ 1 x management (RS-232) DB-9 ¦ 1 x management (LAN) RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | Power cable |
| Compliant Standards | Plug and Play, NIAP, ISO 9001:2015 |
| TAA Compliant | Yes |
| Power | |
| Power Device | External power adapter |
| Power Provided | AC 110-240 V |
| Voltage Required | (50/60 Hz) |
| Power Consumption Operational | 100 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Storage | 20 - 90% |
| Dimensions & Weight | |
| Width | 17 in |
| Depth | 15 in |
| Height | 7.1 in |
| Weight | 24.47 lbs |
