KVM extender - transmitter - over CAT 5/5e/6 - USB - up to 499 ft
| Main Specifications | |
|---|---|

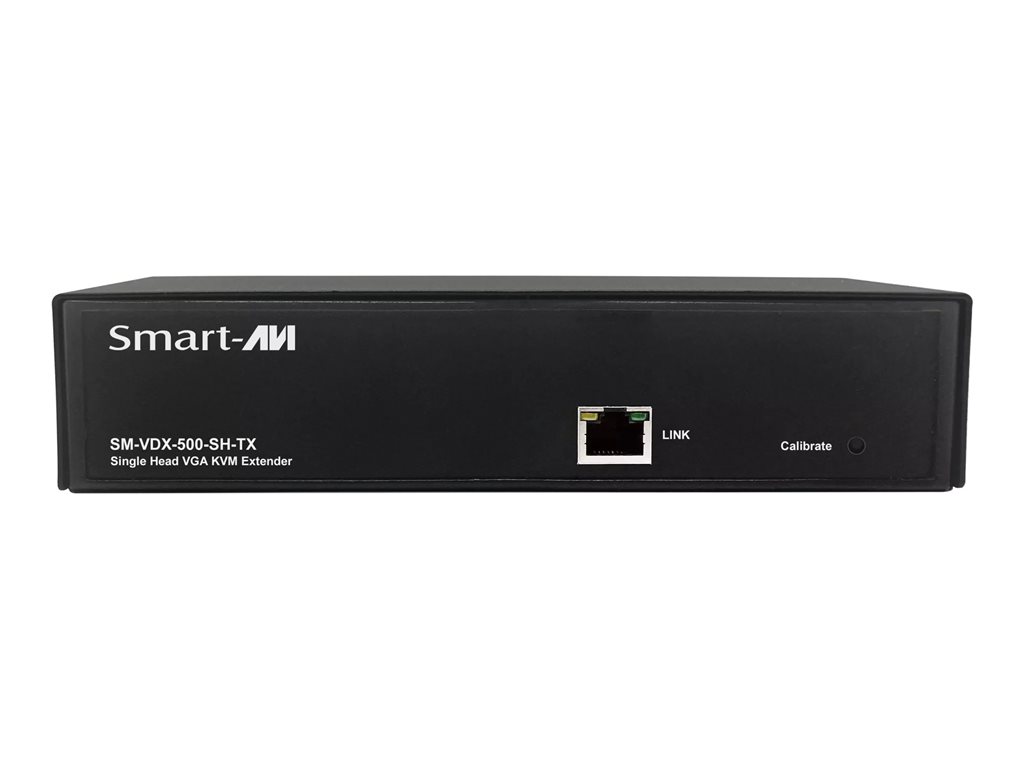

| Product Description | SmartAVI SM-VDX-500-SH-TX-S - KVM extender |
| Device Type | KVM extender (transmitter) - USB |
| Form Factor | External |
| Transmission Medium | CAT 5/5e/6 |
| Max Transfer Distance | 499 ft |
| Power | AC 100-240 V |
| System Requirements | Windows, Apple MacOS, Linux |
| Dimensions (WxDxH) | 11.9 in x 2.9 in x 1.7 in |
| Weight | 28 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | KVM extender (transmitter) |
| Form Factor | External |
| Expansion / Connectivity | |
| Interfaces | 1 x link - RJ-45 female ¦ 1 x VGA (input) female ¦ 1 x VGA (output) male ¦ 1 x USB 2.0 - Type B female |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | HDCP, UL, RoHS, RoHS2, FCC, ICES-003 |
| Networking | |
| Connectivity Technology | Wired |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 1920 x 1200 @ 60 Hz |
| Max Video Bandwidth | 340 MHz |
| Max Transfer Distance | 499 ft |
| Features | Automatic Data Direction Control (ADDC), 24-bit Deep Color support |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Provided | 15 Watt |
| Software / System Requirements | |
| OS Required | Windows, Apple MacOS, Linux |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Dimensions & Weight | |
| Width | 11.9 in |
| Depth | 2.9 in |
| Height | 1.7 in |
| Weight | 28 oz |
