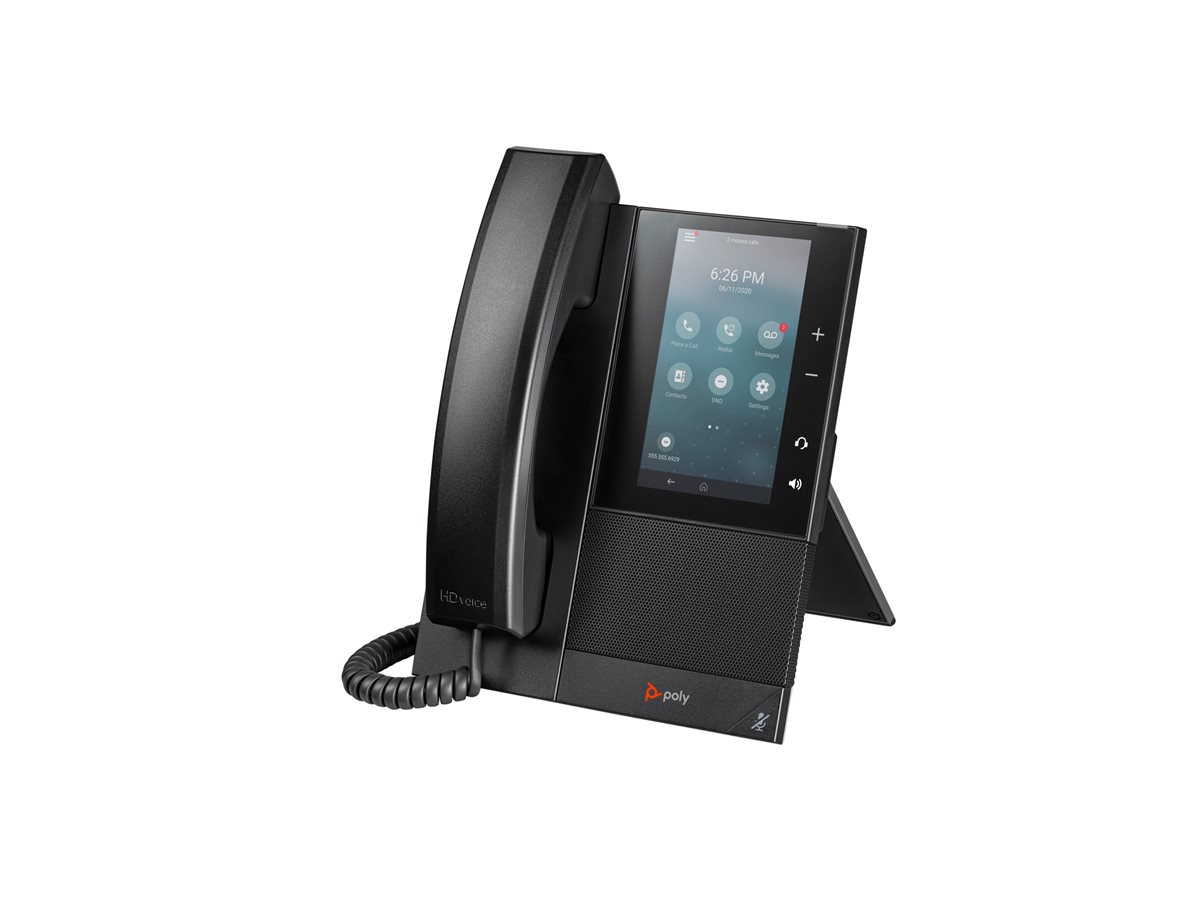

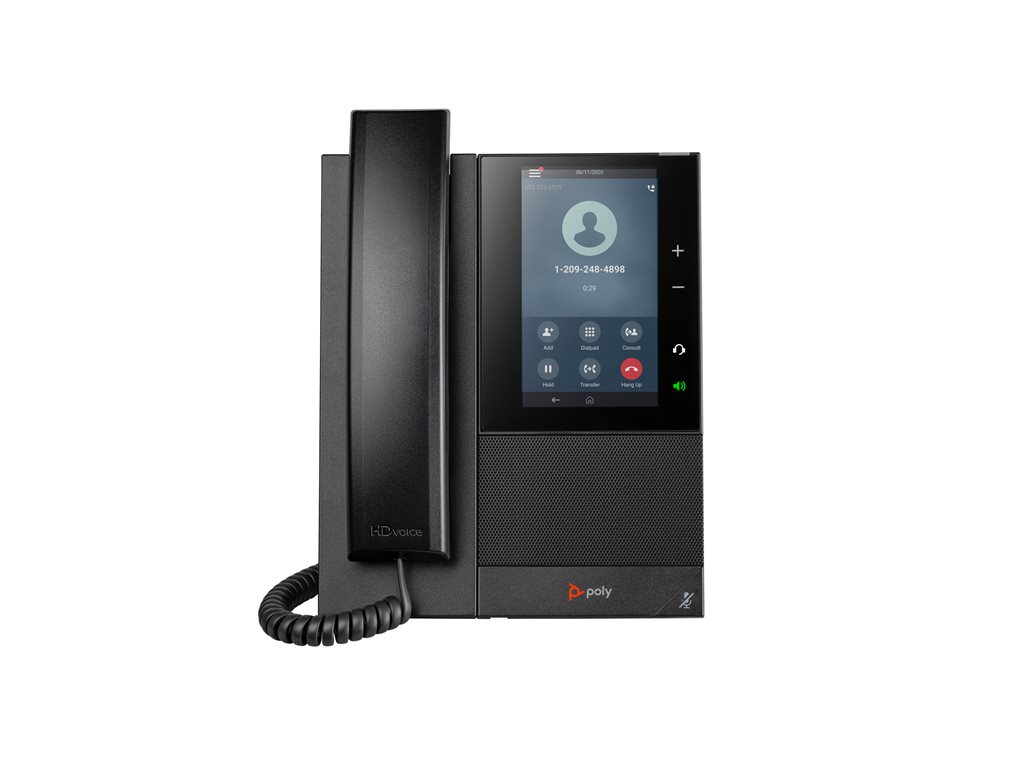

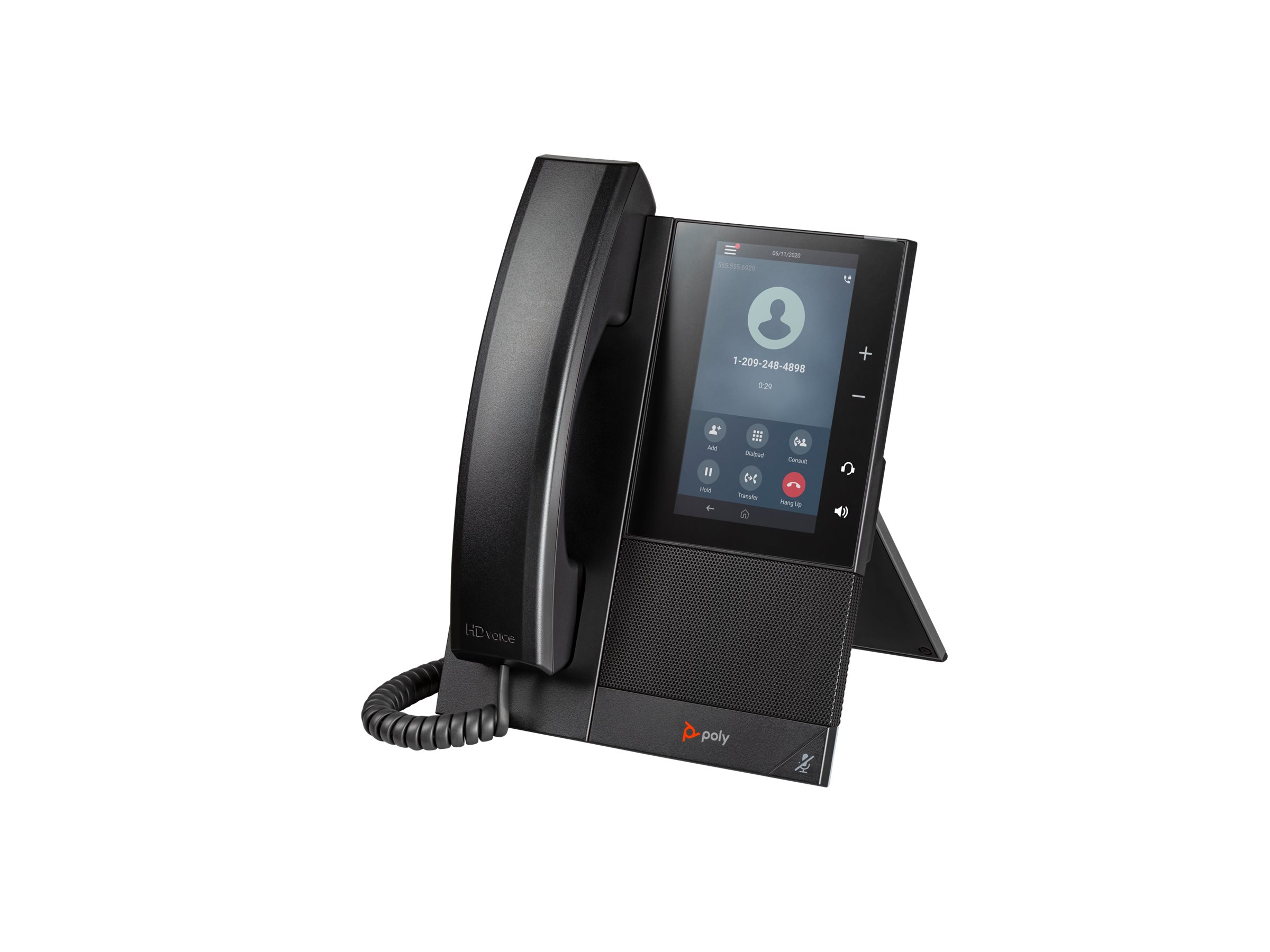

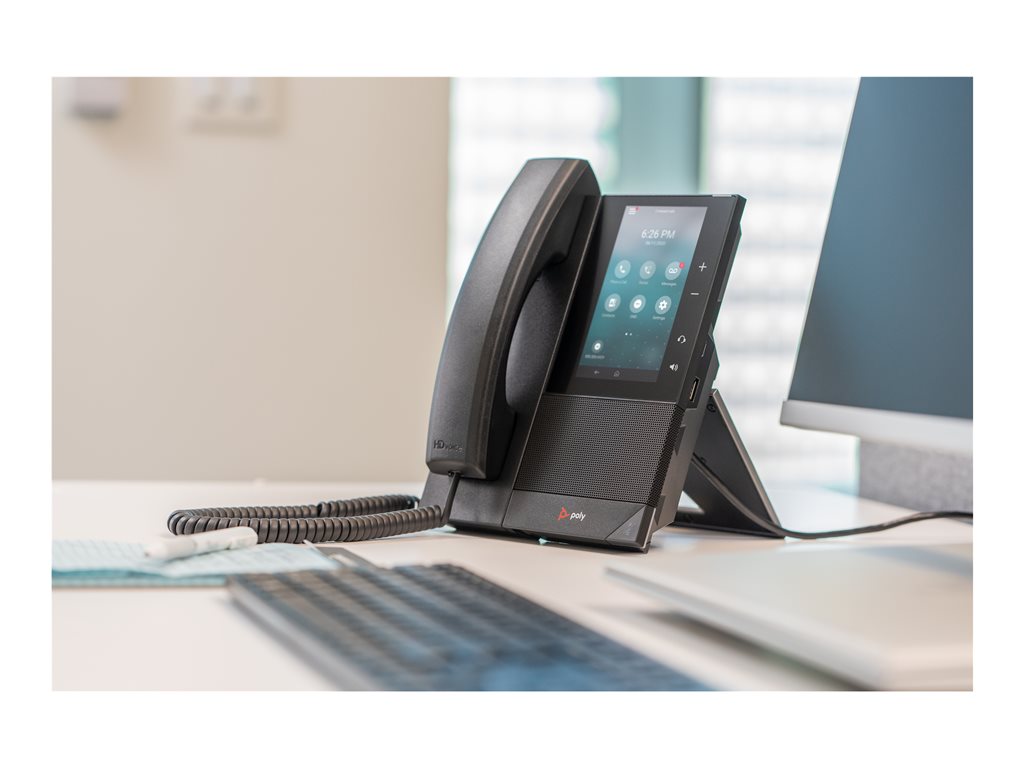

VoIP phone - SIP, SDP - 24 lines - black
| Main Specifications | |
|---|---|
| Product Description | HP Poly CCX 500 OpenSIP - VoIP phone |
| Product Type | VoIP phone |
| VoIP Services | OpenSIP |
| Main Features | Integrated Ethernet switch, multiple VoIP protocol support |
| VoIP Protocols | SIP, SDP |
| Voice Codecs | G.711u, G.711a, G.722, G.729ab, iLBC, Opus |
| Lines Supported | 24 lines |
| Speakerphone | Yes |
| Call Services | Voice Mail, Call Waiting, Call Transfer, Call Hold, Caller ID, Call Forwarding, Call park/pickup |
| Display | Touchscreen LCD display - color - Yes |
| Display Features | 9:16 aspect ratio, Dark mode, multi-touch |
| Network Ports Qty | 2 x Ethernet 10Base-T/100Base-TX/1000Base-T |
| Body Color | Black |
| Localization | English (United States) |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Product Type | VoIP phone |
| Shipping Weight | 2.76 lbs |
| Body Color | Black |
| Localization | English (United States) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |

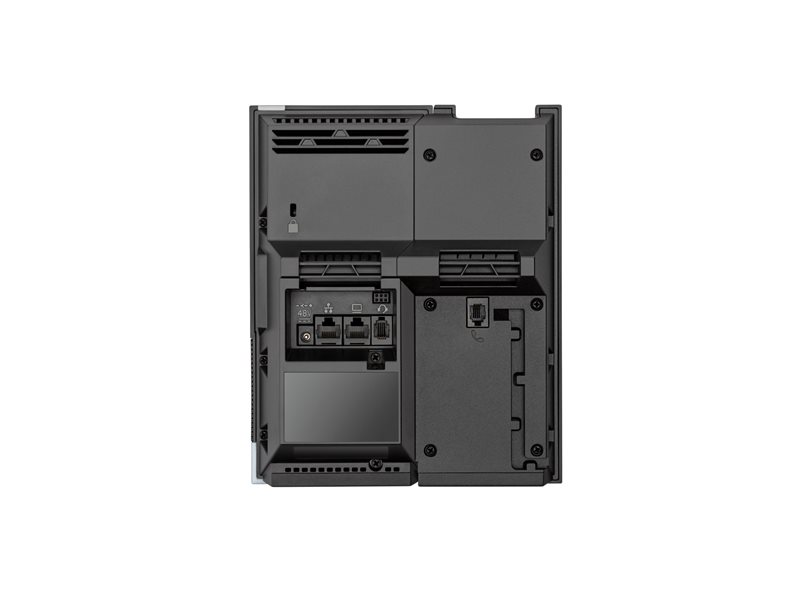

| Connections | Headset jack / RJ-9 ¦ USB / 4 pin USB Type A ¦ USB Type-C / 24 pin USB-C ¦ EHS port |
| Hearing Aid Compatible | Yes |
| Cables Included | Network cable |
| Included Accessories | Desktop stand |
| Power | |
| Power Consumption | 13 W (PoE) |
| Display | |
| Type | Touchscreen LCD display - color |
| Display Location | Base |
| Diagonal Size | 5" |
| Display Resolution | 1280 x 720 pixels |
| Backlit | Yes |
| Display Languages | English |
| Features | 9:16 aspect ratio, Dark mode, multi-touch |
| Dimensions & Weight | |
| Width | 7 in |
| Depth | 2 in |
| Height | 8.5 in |
| Phone Features | |
| Operating System | Android 9.0 Pie |
| VoIP Services | OpenSIP |
| Wireless Interface Provided | Bluetooth |
| Call Services | Voice Mail, Call Waiting, Call Transfer, Call Hold, Caller ID, Call Forwarding, Call park/pickup |
| Dialer Location | Base |
| Speakerphone | Yes |
| Indicators | Busy lamp field (BLF) |
| Additional Functions | Call timer, Calling party ID, Do Not Disturb (DND), Bridged Line Appearance (BLA), call recording, Intercom, group call pickup, Exchange calendar integration |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 12.6 in |
| Shipping Depth | 9.6 in |
| Shipping Height | 2.8 in |
| Shipping Weight | 2.76 lbs |
| IP Telephony | |
| Main Features | Integrated Ethernet switch, multiple VoIP protocol support |
| VoIP | Yes |
| VoIP Protocols | SIP, SDP |
| Voice Codecs | G.711u, G.711a, G.722, G.729ab, iLBC, Opus |
| Lines Supported | 24 lines |
| Quality of Service | IEEE 802.1Q (VLAN), Type of Service (ToS), IEEE 802.1p |
| IP Address Assignment | DHCP, static |
| Security | IEEE 802.1X, EAPoL, TLS |
| Power Over Ethernet (PoE) Support | Yes |
| Network Protocols | SRTP, FTP, FTPS, TFTP, HTTP, HTTPS, RTCP, RTP, TCP, UDP, DNS SRV, Cisco Discovery Protocol (CDP), SNTP |
| Network Ports Qty | 2 x Ethernet 10Base-T/100Base-TX/1000Base-T |
| Voice Features | Poly HD Voice technology, Polycom Acoustic Clarity technology, Poly Acoustic Fence technology, acoustic echo cancellation (AEC), background noise suppression, voice activity detection (VAD), comfort noise generation (CNG), dual tone multi-frequency (DTMF), low-delay audio packet transmission, adaptive jitter buffer (AJB), Voice Quality Monitor (VQM) |
| Network Features | Polycom Device Management Service for Service Providers (PDMS-SP), IEEE 802.3af, Class 0 PoE, Automatic Call Distribution (ACD) |
| Conference Phone | |
| Features | Poly Lens |
