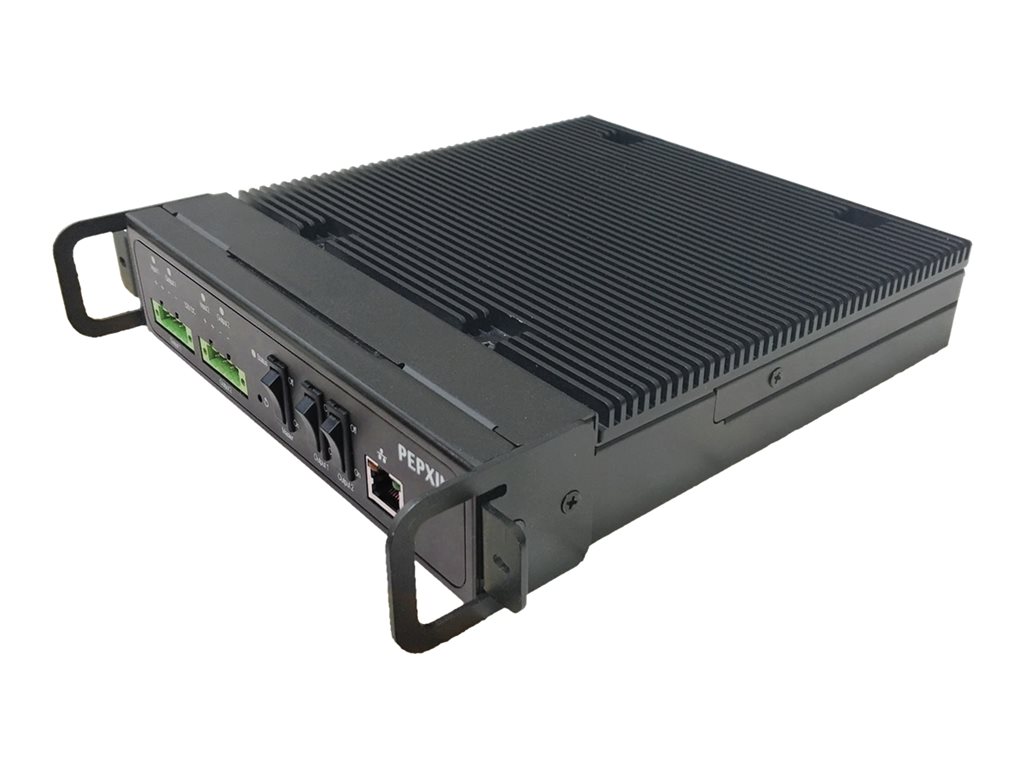

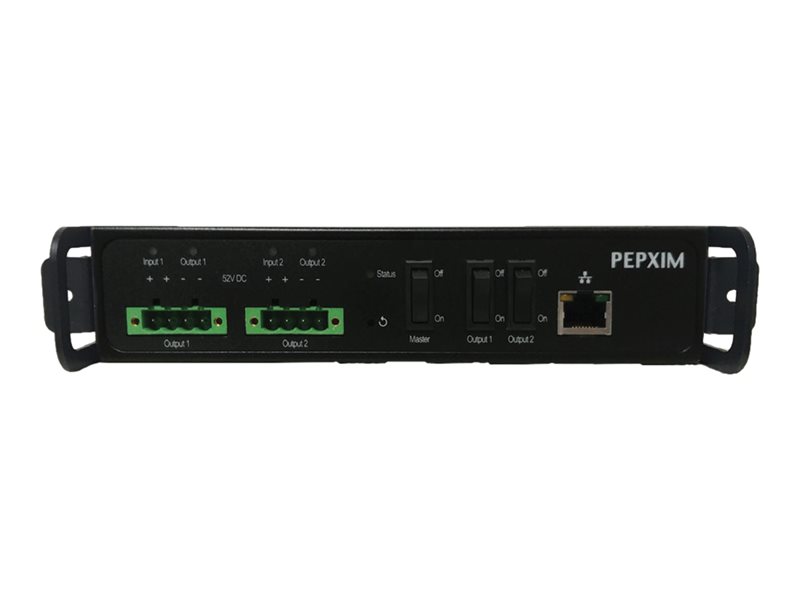

Power control unit (rack-mountable) - DC 12 - 56 V - 400 Watt - Ethernet - input: 2 x terminal block - output connectors: 4 (4 x terminal block)
| Main Specifications | |
|---|---|
| Product Description | Pepxim SD-PMU - power control unit - 400 Watt |
| Device Type | Power control unit - rack-mountable |
| Weight | 4.41 lbs |
| Input Voltage | DC 12 - 56 V |
| Output Voltage | DC 52 V |
| Power Capacity | 400 Watt |
| Input Connectors | 2 x 2 x terminal block |
| Output connectors | 4 x terminal block |
| Networking | Ethernet |
| Dimensions (WxDxH) | 7.4 in x 8.1 in x 1.6 in |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Power control unit - rack-mountable |
| Expansion / Connectivity | |
| Interfaces | 1 x LAN - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Networking | |
| Remote Management Interface | Ethernet |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Power Device | |
| Input Voltage | DC 12 - 56 V |
| Input Connectors | 2 x 2 x terminal block |
| Power Output Connectors Details | 4 x terminal block |
| Output Voltage | DC 52 V |
| Power Capacity | 400 Watt |
| Dimensions & Weight | |
| Width | 7.4 in |
| Depth | 8.1 in |
| Height | 1.6 in |
| Weight | 4.41 lbs |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
