Wireless router - WWAN 8-port switch - 1GbE - WAN ports: 2 - Wi-Fi 5 - Dual Band
| Main Specifications | |
|---|---|
| Product Description | Pepwave MAX HD4 with MediaFast - wireless router - WWAN - Wi-Fi 5 - desktop |
| Device Type | Wireless router - wireless cellular modem - 8-port switch (integrated) |
| Enclosure Type | Desktop |
| Digital Signaling Protocol | H.323, SIP |
| Cellular Protocol | WCDMA, HSPA+, LTE Advanced |
| Cellular Band | LTE B13, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B25, LTE B26, LTE B5, LTE B29, LTE B8, LTE B30, LTE B41, DC-HSPA+ B1, DC-HSPA+ B2, DC-HSPA+ B4, DC-HSPA+ B5, DC-HSPA+ B8, DC-HSPA+ B3 |
| WAN Ports Qty | 2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1166 Mbps |
| Performance | Routing throughput: 400 Mbps ¦ Cache throughput: 150 Mbps |
| Capacity | Recommended users: 150 |
| Network / Transport Protocol | IPSec, PPPoE, DHCP, DNS, DDNS |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c |
| Features | Firewall protection, NAT support, load balancing, VLAN support, Syslog support, DoS attack prevention, ALG support, dynamic DNS server, IPv6 support, VRRP support, IPSec VPN, QoS, DHCP server, static IP mode, DHCP proxy, port forwarding, e-mail notification, static routing, DHCP reservation, cloud managed, SpeedFusion technology |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, X.509, IEEE 802.11n, UPnP, IEEE 802.11ac |
| Power | DC 12 - 56 V |
| Dimensions (WxDxH) | 11.5 in x 7 in x 2 in |
| Weight | 4.19 lbs |
| Localization | Worldwide |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Wireless router - 8-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1166 Mbps |
| Performance | Routing throughput: 400 Mbps ¦ Cache throughput: 150 Mbps |
| Capacity | Recommended users: 150 |
| Network / Transport Protocol | IPSec, PPPoE, DHCP, DNS, DDNS |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c |
| Encryption Algorithm | 256-bit AES |
| Authentication Method | RADIUS, LDAP |
| Features | Firewall protection, NAT support, load balancing, VLAN support, Syslog support, DoS attack prevention, ALG support, dynamic DNS server, IPv6 support, VRRP support, IPSec VPN, QoS, DHCP server, static IP mode, DHCP proxy, port forwarding, e-mail notification, static routing, DHCP reservation, cloud managed, SpeedFusion technology |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, X.509, IEEE 802.11n, UPnP, IEEE 802.11ac, FCC, RoHS, E Mark, EN 61000, IEC 61373, EN 61373 |
| Hard Drive | 120 GB |
| Built-in Devices | GPS |
| Status Indicators | Wi-Fi 1, cellular 1, cellular 2, Wi-Fi 2 |
| Expansion / Connectivity | |

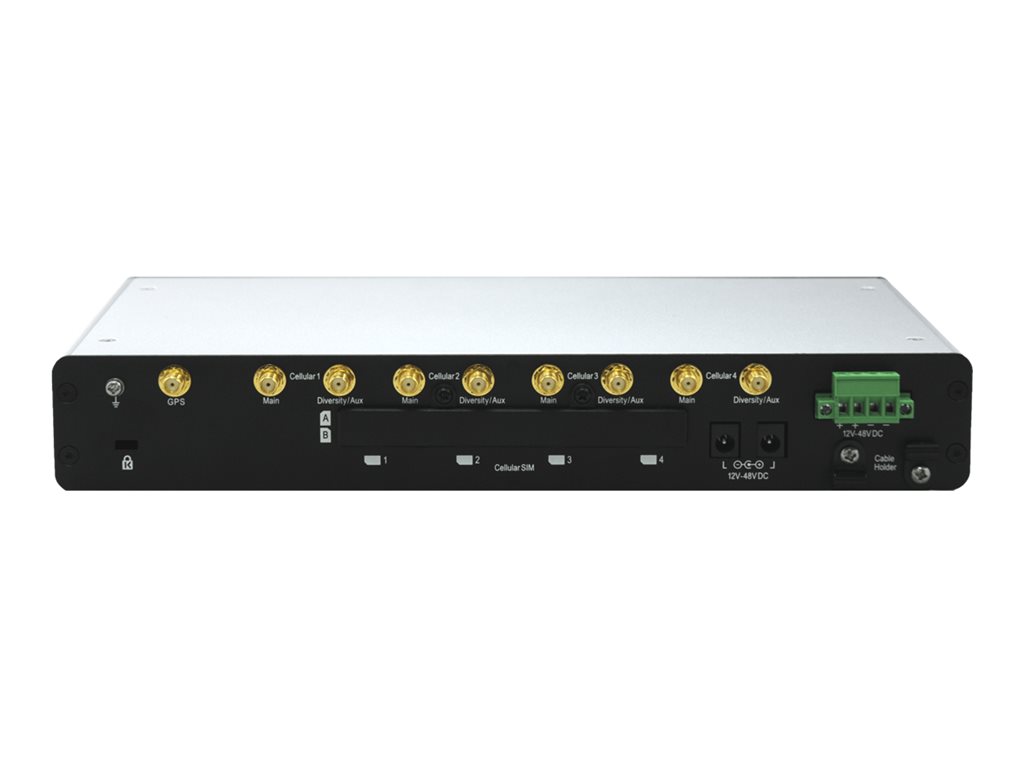

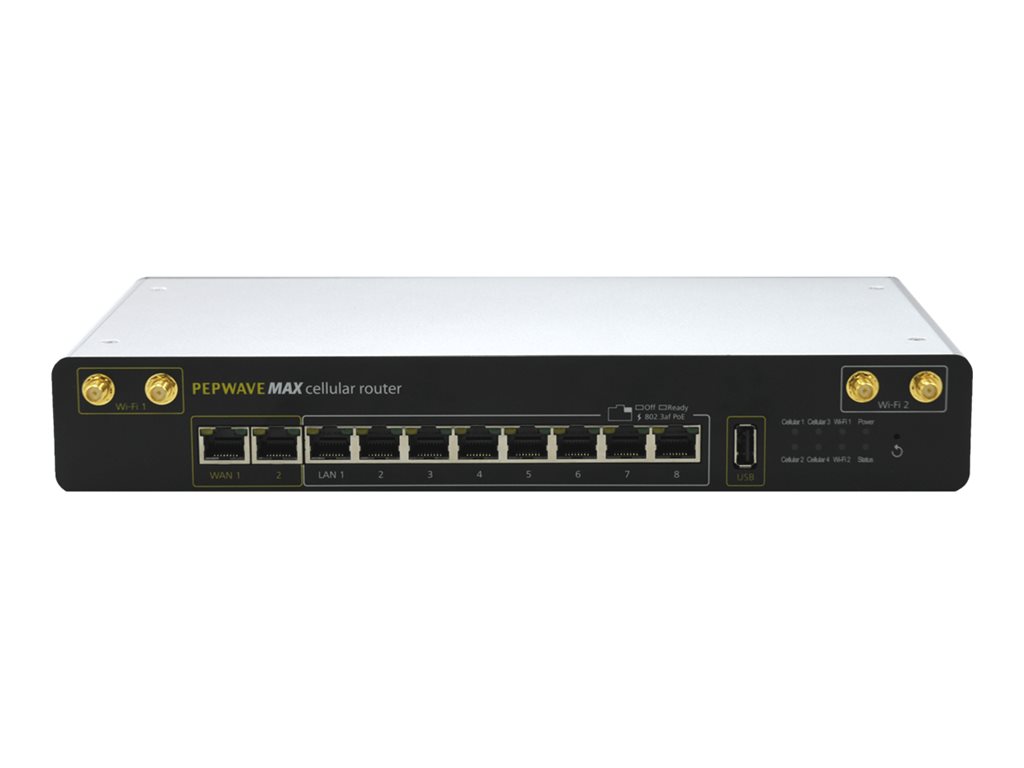

| Interfaces | USB: 1 x 4 pin USB Type A ¦ WAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 8 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Antenna: 8 x SMA ¦ Antenna: 2 x SMA - GPS |
| Expansion Slots | 4 (total) / 4 (free) x SIM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Localization | Worldwide |
| Power | |
| Voltage Required | DC 12 - 56 V |
| Power Consumption Operational | 38 watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Communications | |
| Type | 2 x wireless cellular modem |
| Digital Signaling Protocol | H.323, SIP |
| Cellular Protocol | WCDMA, HSPA+, LTE Advanced |
| Cellular Band | LTE B13, LTE B2, LTE B4, LTE B12, LTE B3, LTE B7, LTE B20, LTE B1, LTE B25, LTE B26, LTE B5, LTE B29, LTE B8, LTE B30, LTE B41, DC-HSPA+ B1, DC-HSPA+ B2, DC-HSPA+ B4, DC-HSPA+ B5, DC-HSPA+ B8, DC-HSPA+ B3 |
| Max Transfer Rate | 300 Mbps |
| Dimensions & Weight | |
| Width | 11.5 in |
| Depth | 7 in |
| Height | 2 in |
| Weight | 4.19 lbs |
| Antenna | |
| Antenna | External detachable |
| Antenna Qty | 14 |
