Barebone - Box-PC 1 x Core i3 i3-1215UE / up to 4.4 GHz - RAM 0 GB - UHD Graphics - Gigabit Ethernet
| Main Specifications | |
|---|---|
| Product Description | MSI MS-C902 - Box-PC Core i3 i3-1215UE - 0 GB - no HDD |
| Type | PC barebone - Box-PC |
| Processor | 1 x Intel Core i3 (12th Gen) i3-1215UE (up to 4.4 GHz, (6-core) |
| Processor Main Features | Intel Smart Cache |
| Cache Memory | 10 MB |
| Cache Per Processor | 10 MB |
| RAM | 0 GB (installed) / 64 GB (max) - DDR4 SDRAM |
| Storage Controller | SATA |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Intel UHD Graphics |
| Networking | 1GbE |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 11.2 in x 7.7 in x 1.1 in |
| Weight | 4.94 lbs |
| General | |
| Type | PC barebone |
| Product Form Factor | Box-PC |
| Embedded Security | Firmware Trusted Platform Module (fTPM 2.0) |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2230 (Key E) ¦ 1 (total) / 1 (free) x M.2 Card - 2242/3042 ¦ 1 (total) / 1 (free) x M.2 Card - 2242/2280 |

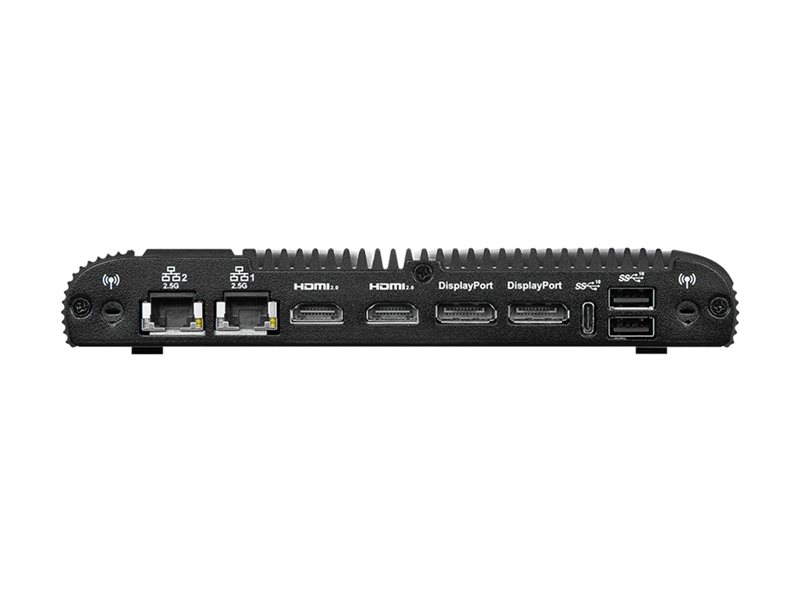

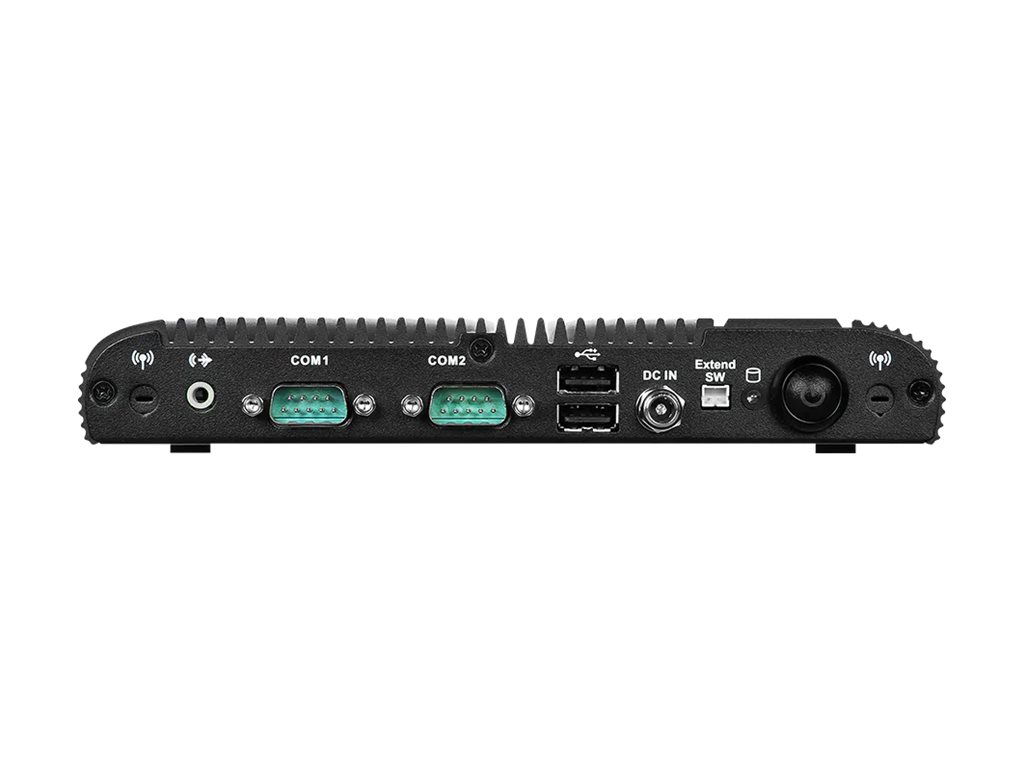

| Interfaces | USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x headphones/microphone ¦ 2 x serial ¦ 2 x LAN (2.5Gigabit Ethernet) ¦ 2 x DisplayPort ¦ 2 x HDMI ¦ 4 x antenna |
| Miscellaneous | |
| Included Accessories | VESA mounting kit |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | Yes |
| Compliant Standards | FCC Class B certified, BSMI, VCCI, RCM, IP40 |
| RAM | |
| Installed Size | 0 GB (installed) / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (total) / 2 (empty) |
| Networking | |
| Ethernet Ports | 2 x 2.5 Gigabit Ethernet |
| Ethernet Controller | Intel I226-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | |
| Device Type | Power adapter |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Cache Memory | |
| Installed Size | 10 MB |
| Cache Per Processor | 10 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI, DisplayPort |
| Max Monitors Supported | 4 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 11.2 in |
| Depth | 7.7 in |
| Height | 1.1 in |
| Weight | 4.94 lbs |
| Processor / Chipset | |
| CPU | Intel Core i3 (12th Gen) i3-1215UE |
| Max Turbo Speed | 4.4 GHz (P-core) / 3.3 GHz (E-core) |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
