8x8 matrix switcher / audio disembedder / HDBaseT converter
| Main Specifications | |
|---|---|

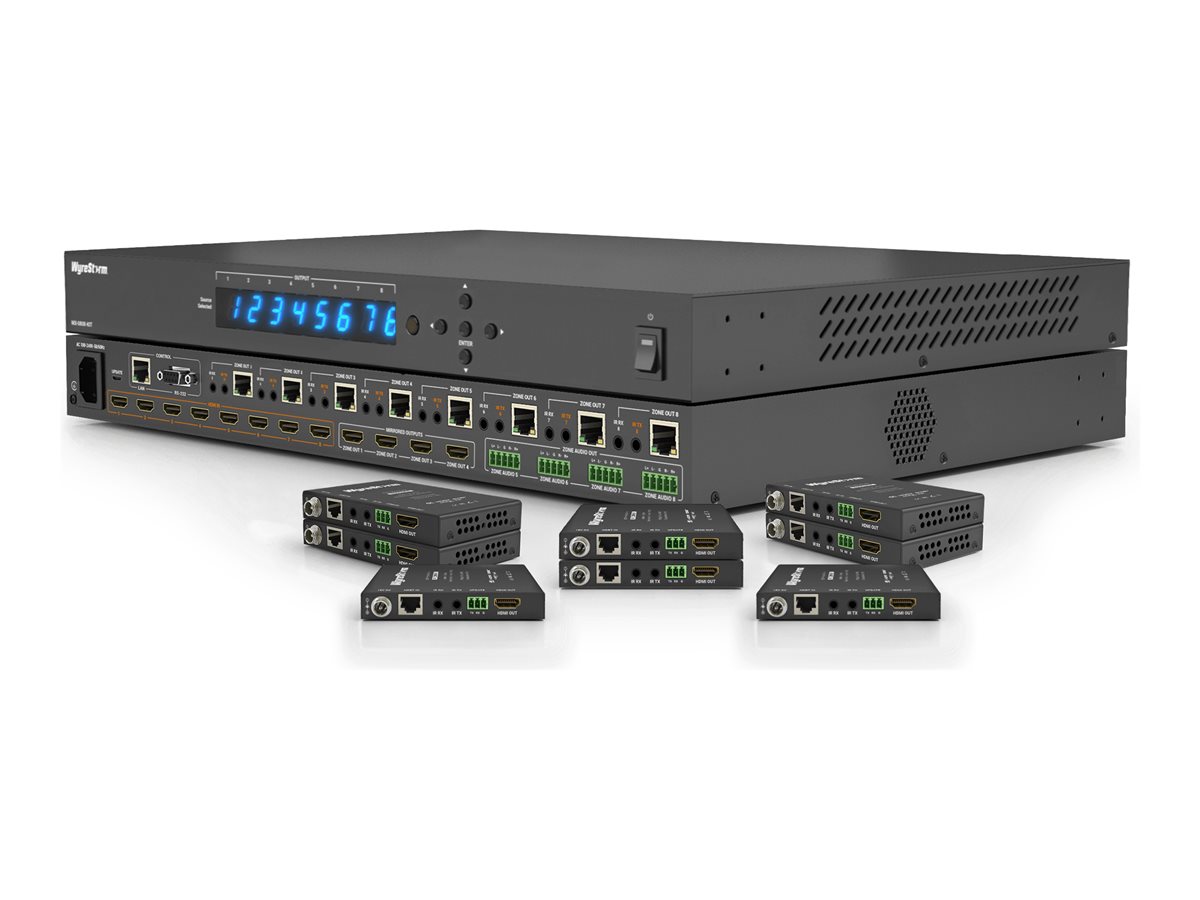

| Product Description | WyreStorm MX-0808-KIT 8x8 matrix switcher / audio disembedder / HDBaseT converter |
| Type | 8x8 matrix switcher / audio disembedder / HDBaseT converter |
| Dimensions (WxDxH) | 17.3 in - 11.8 in - 1.7 in |
| Weight | 8.95 lbs |
| General | |
| Type | 8x8 matrix switcher / audio disembedder / HDBaseT converter |
| Width | 17.3 in |
| Depth | 11.8 in |
| Height | 1.7 in |
| Weight | 8.95 lbs |
| Power | |
| Voltage Required | AC 120/230 V AC 100-240 V |
| Frequency | 50/60 Hz |
| Power Consumption | 105.4 Watt |
| Low Voltage Power | DC 18 V / PoH |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Kit Content | |
| Kit Content | (1) x audio/video switcher / HDBaseT transmitter - MX-0808-KIT ¦ (8) x receiver unit - MX-KIT-RX ¦ (1) x power cable ¦ (8) x IR emitter ¦ (8) x IR receiver ¦ (16) x mounting bracket |
| Terminals | |
| Terminals | (8) x HDMI input - 19 pin HDMI Type A ¦ (8) x HDBaseT output - RJ-45 ¦ (4) x balanced audio output - 5-pin terminal block ¦ (1) x network - RJ-45 ¦ (1) x RS-232 - 9 pin D-Sub (DB-9) ¦ (4) x HDMI output - 19 pin HDMI Type A ¦ (8) x IR RX - mini-phone 3.5 mm ¦ (8) x IR TX - mini-phone 3.5 mm ¦ (1) x service port - Micro-USB Type B |
| Studio & Production Equipment | |
| Features | HDCP 2.2 compliant, EDID support, CEC triggering, 4K60 4:4:4 signal support, HDR10 support, HDR10+ support, Dolby Vision support, HLG support, DTS-X support, Dolby Atmos support, LPCM support, PCM 2.0 support, 1080p60 support, 2160p60 support, Power Over HDBaseT (POH) suppport, rack-mountable |
